MidOpt - AC400 Acrylic Oleophobic Visible (VIS) Coated Ultraviolet (UV)-Block Protective Window

$76.00
$76.00

SKU: AC400-25.5

The MidOpt AC400 Acrylic Oleophobic Visible (VIS) Coated Ultraviolet (UV)-Block Protective Window is abrasion-, scratch-, breakage- and solvent-resistant to withstand... Learn more
Size
Request Info
Icon
Quick Shipping
Most items ship within 2-3 business days. Orders with expedited shipping must be received by 2 pm CST.
Order Now
Icon
Quality Guaranteed
Every item is 100% inspected to ensure exceptional quality, high performance and unrivaled reliability.
Shop Now
Icon
Contact Us
Reach out to us anytime via chat, email or phone for more info or assistance placing an order.
Get Support
Details
Specs
Technical Data
Video
Details
Details

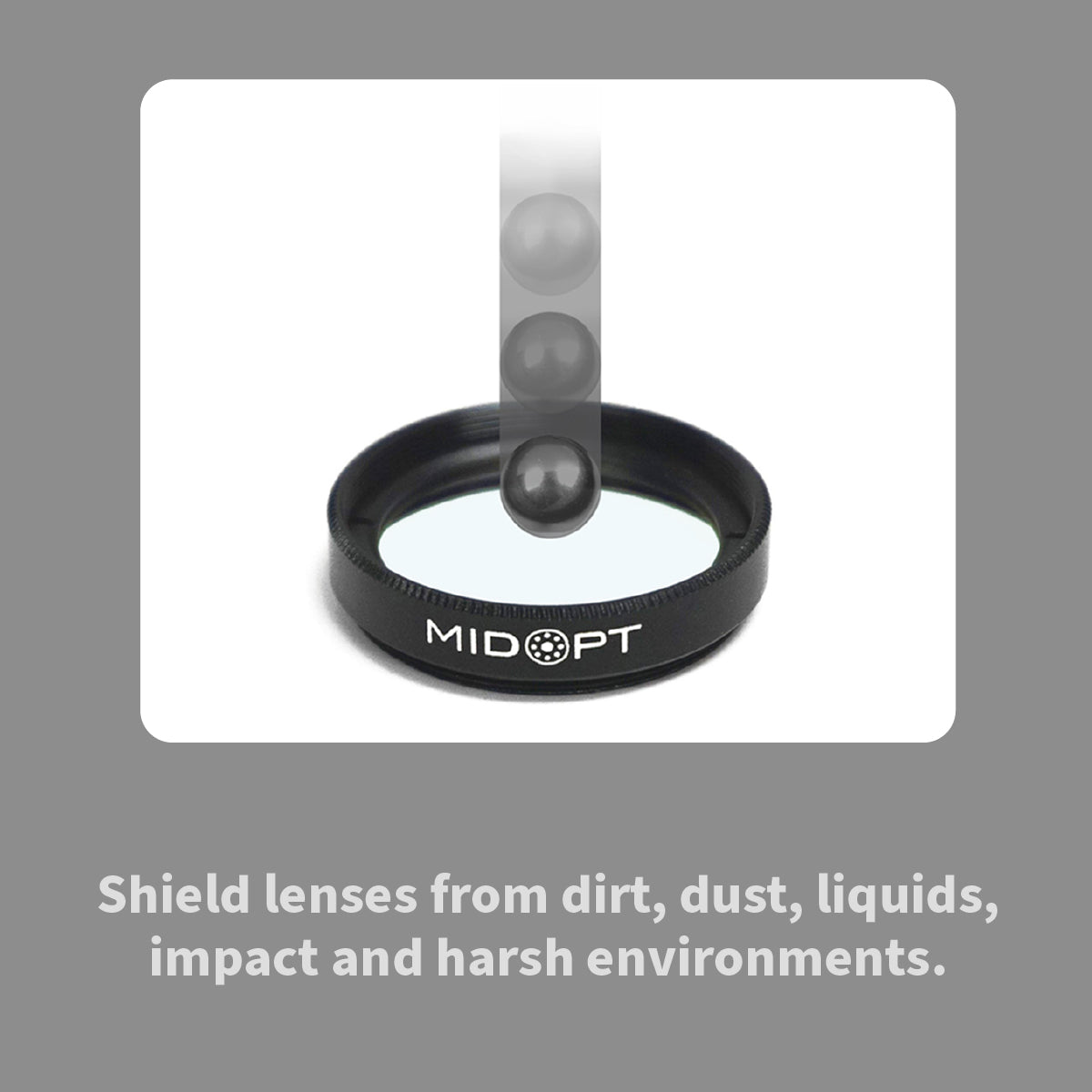

The MidOpt AC400 Acrylic Oleophobic Visible (VIS) Coated Ultraviolet (UV)-Block Protective Window is abrasion-, scratch-, breakage- and solvent-resistant to withstand harsh environments and is half the weight of comparable glass windows. The AC400 is anti-reflection (AR) coated to limit glare and minimize reflection loss and is oleophobic coated to prevent finger print smudging and to keep oil and other solvents from collecting on the lens. The coatings on both surfaces are 50x more scratch-resistant than untreated acrylic, far more durable than standard "dip" coatings and are impervious to all types of solvents, fuels and other chemicals, including acetone, methylene chloride and MEK. material blocks almost all ultraviolet (UV) light while averaging greater than 98% transmission over the 450-700nm VIS spectrum. It's a highly effective yet economical solution for covering screens, camera enclosures and on-axis lighting modules and is often recommended for FDA / EFSA applications where thickness is a concern and the use of glass is not permitted. The AC400 features StablEDGE technology to reduce angular dependency and minimize the effects of short-shifting.

Specs
Specs

Useful Range:415-1100nm
Cut-On Wavelength 50% T:400nm
Peak Transmission:≥98%
Surface Quality:80/50

Technical Data
Technical Data

Click the image for detailed specifications and technical data.

Video
Video
MidOpt Protective Windows
Providing the most popular machine vision products from industry leaders.
Shop a wide range of products from globally recognized industrial imaging brands.
