MidOpt - Bi1550 Short-Wave Infrared (SWIR) Bandpass Filter

$299.00
$299.00

SKU: Bi1550-25.5

The MidOpt Bi1550 Short-Wave Infrared (SWIR) Bandpass Filter is commonly used for telecommunication, particularly for extremely long distance, high bandwidth... Learn more
Size
Request Info
Icon
Quick Shipping
Most items ship within 2-3 business days. Orders with expedited shipping must be received by 2 pm CST.
Order Now
Icon
Quality Guaranteed
Every item is 100% inspected to ensure exceptional quality, high performance and unrivaled reliability.
Shop Now
Icon
Contact Us
Reach out to us anytime via chat, email or phone for more info or assistance placing an order.
Get Support
Details
Specs
Technical Data
Video
Details
Details

The MidOpt Bi1550 Short-Wave Infrared (SWIR) Bandpass Filter is commonly used for telecommunication, particularly for extremely long distance, high bandwidth fiber optic applications. 1550nm light is also generally considered to be “eye safe” (and safe for CMOS camera sensors). For similar reasons, 1550nm light is also favored by some companies for automotive LiDAR applications. 1550nm fiber lasers used in these applications are pumped by diode lasers that emit in the 900nm band, which could cause damage to both the human eye and CMOS cameras. Blocking light outside of the desired 1550nm range using a Bi1550 filter can be beneficial and can also help improve power efficiency and greatly reduce noise. MidOpt Bandpass Filters have a broad, Gaussian passband to mimic and accommodate the entire output of the most common LED wavelengths, are double-side polished for exceptional parallelism and optical flatness and are anti-reflection (AR) coated to limit glare and minimize reflection loss.

Specs
Specs

Useful Range: 1540-1560nm
FWHM: 35nm
Tolerance: ±10nm
Peak Transmission: ≥90%
Surface Quality: 40/20
Compatible LED: 1540nm, 1550nm, 1560nm

Technical Data
Technical Data

Click the image for detailed specifications and technical data.

Video
Video

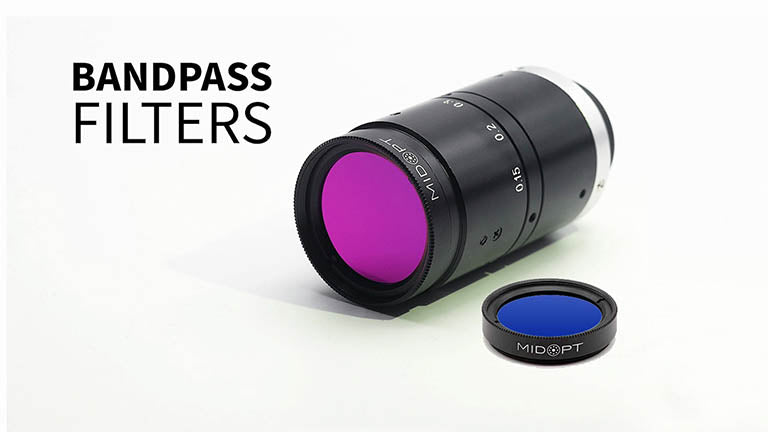

MidOpt Bandpass Filters
