Name: JAI - GOX-20405M-PGE Compact 20.3 Megapixel (MP) Area Scan Camera, Go-X Series
Brand: JAI
Price: 2299.00 USD
Availability: InStock

$2,299.00

The JAI GOX-20405M-PGE Compact 20.3 Megapixel (MP) Area Scan Camera from the Go-X Series is a small industrial area scan... Learn more

Request Info

Quick Shipping

Most items ship within 2-3 business days. Orders with expedited shipping must be received by 2 pm CST.

Order Now

Quality Guaranteed

Every item is 100% inspected to ensure exceptional quality, high performance and unrivaled reliability.

Shop Now

Reach out to us anytime via chat, email or phone for more info or assistance placing an order.

Get Support

Details

Specs

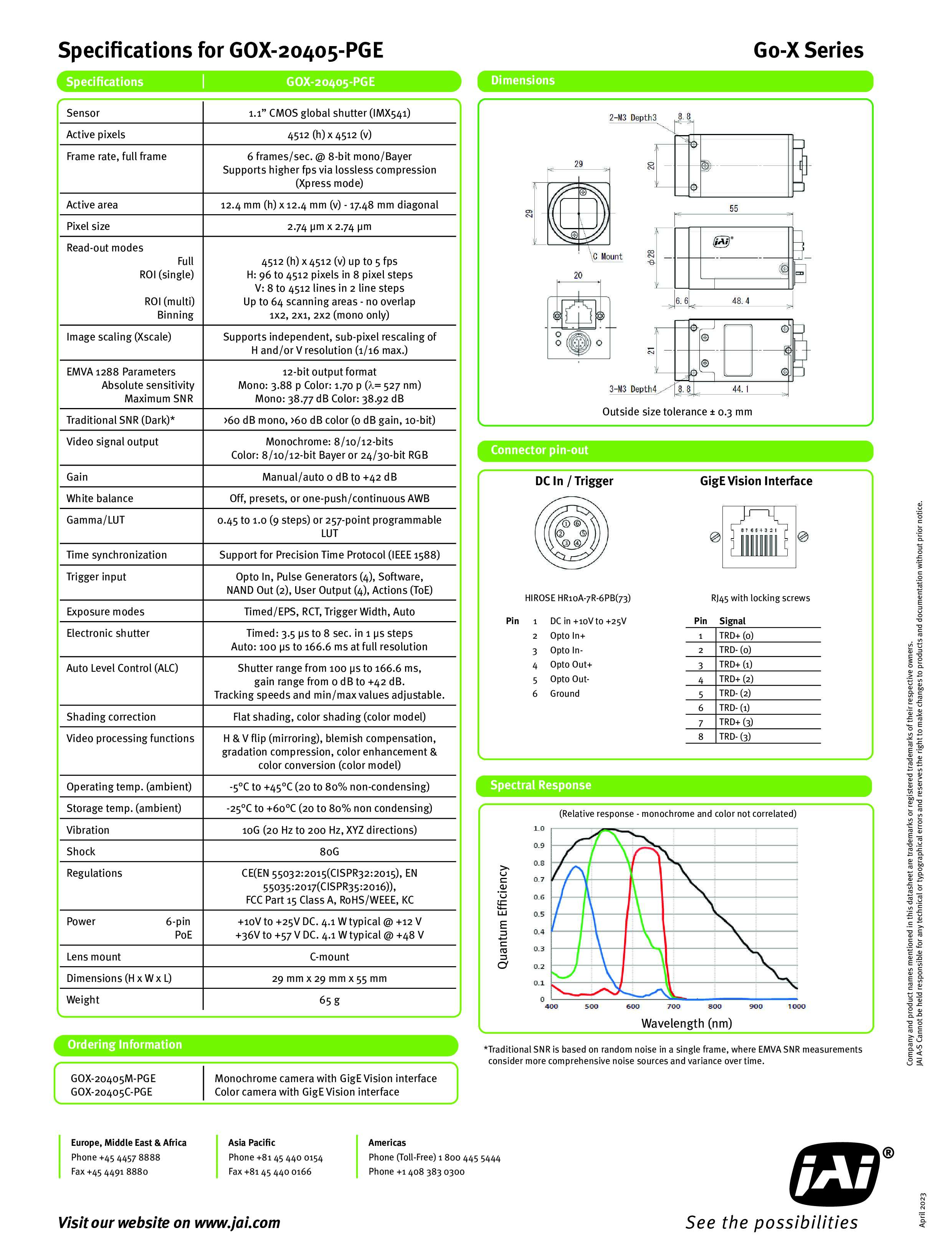

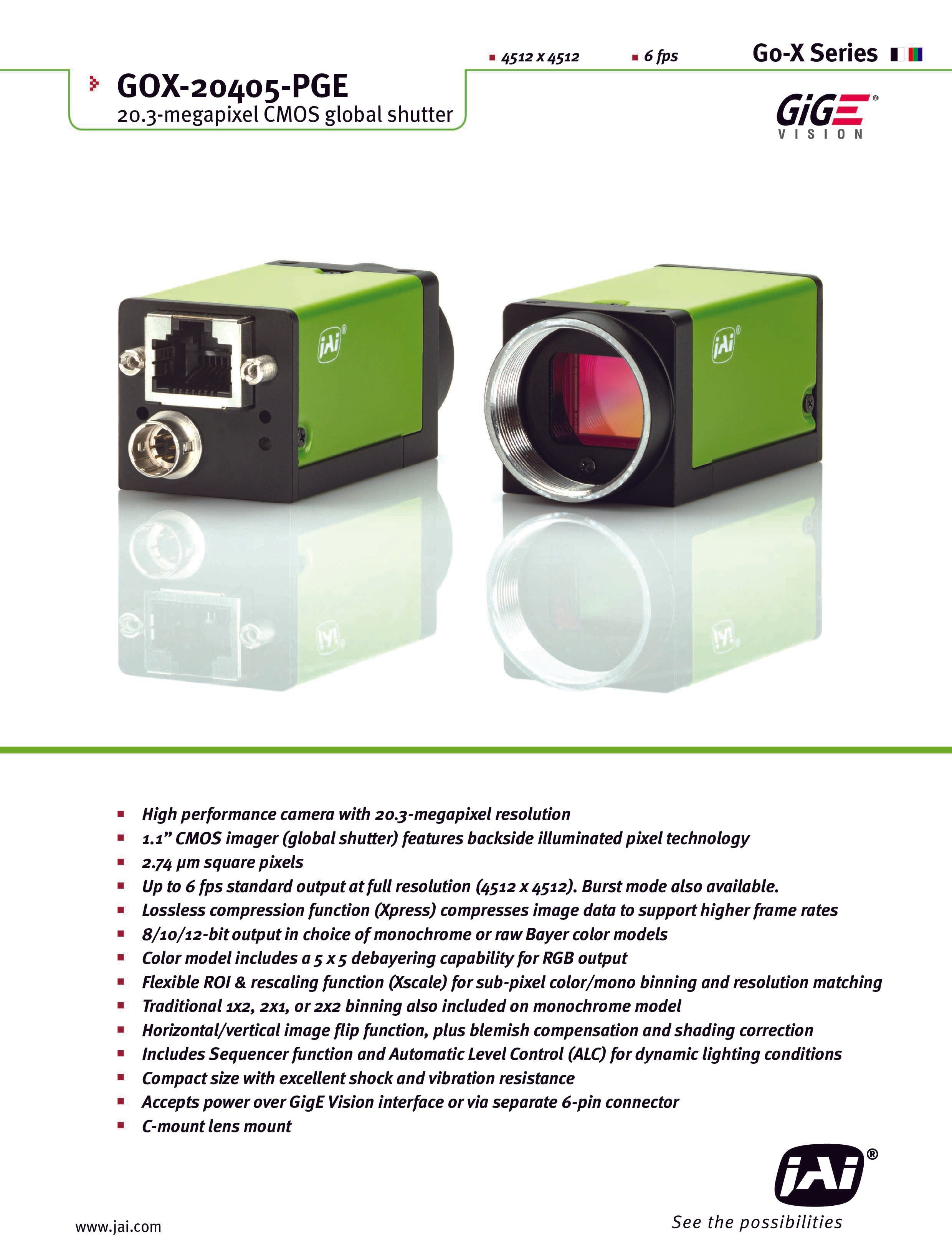

Technical Data

Video

Details

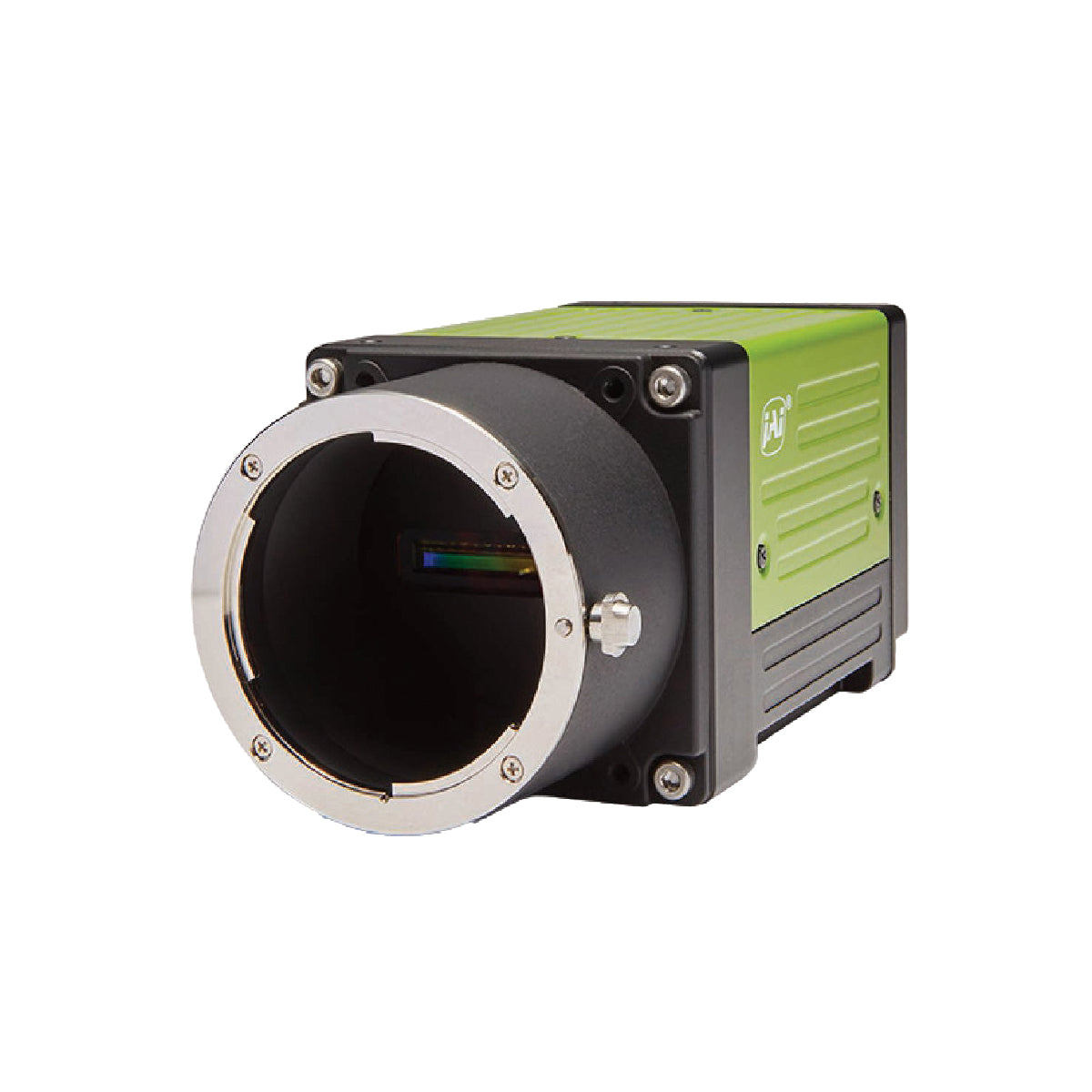

The JAI GOX-20405M-PGE Compact 20.3 Megapixel (MP) Area Scan Camera from the Go-X Series is a small industrial area scan camera offering a blend of features, image quality and industrial-grade reliability perfect for the next generation of machine vision systems. The camera features a state-of-the-art Sony Pregius S sensor with backside illumination (BSI) technology, and a GigE Vision 2.0 interface providing 20.3 MP monochrome images at up to 5 fps. Higher frame rates are possible using JAI "Xpress" lossless compression function.

Specs

High performance camera with 20.3-megapixel resolution
1.1” CMOS imager (global shutter) features backside illuminated pixel technology
2.74 μm square pixels
Up to 6 fps standard output at full resolution (4512 x 4512)
Lossless compression function (Xpress) compresses image data to support higher frame rates
8/10/12-bit output in choice of monochrome or raw Bayer color models
Color model includes a 5 x 5 debayering capability for RGB output
Flexible ROI & rescaling function (Xscale) for sub-pixel color/mono binning and resolution matching
Traditional 1x2, 2x1, or 2x2 binning also included on monochrome model
Horizontal/vertical image flip function, plus blemish compensation and shading correction
Includes Sequencer function and Automatic Level Control (ALC) for dynamic lighting conditions
Compact size with excellent shock and vibration resistance
Accepts power over GigE Vision interface or via separate 6-pin connector
C-mount lens mount
