JAI - GOX-5103C-USB Compact 5.01 Megapixel (MP) Area Scan Camera, Go-X Series
JAI - GOX-5103C-USB Compact 5.01 Megapixel (MP) Area Scan Camera, Go-X Series
JAI - GOX-5103C-USB Compact 5.01 Megapixel (MP) Area Scan Camera, Go-X Series
JAI - GOX-5103C-USB Compact 5.01 Megapixel (MP) Area Scan Camera, Go-X Series
JAI - GOX-5103C-USB Compact 5.01 Megapixel (MP) Area Scan Camera, Go-X Series
JAI - GOX-5103C-USB Compact 5.01 Megapixel (MP) Area Scan Camera, Go-X Series

JAI - GOX-5103C-USB Compact 5.01 Megapixel (MP) Area Scan Camera, Go-X Series

$929.00
$929.00
The JAI GOX-5103C-USB Compact 5.01 Megapixel (MP) Area Scan Camera from the Go-X Series is a small industrial area scan... Learn more
Request Info
Icon
Quick Shipping
Most items ship within 2-3 business days. Orders with expedited shipping must be received by 2 pm CST.
Order Now
Icon
Quality Guaranteed
Every item is 100% inspected to ensure exceptional quality, high performance and unrivaled reliability.
Shop Now
Icon
Contact Us
Reach out to us anytime via chat, email or phone for more info or assistance placing an order.
Get Support
Details
Specs
Technical Data
Video
Details
Details

The JAI GOX-5103C-USB Compact 5.01 Megapixel (MP) Area Scan Camera from the Go-X Series is a small industrial area scan camera offering a blend of features, image quality and industrial-grade reliability, perfect for the next generation of machine vision systems. It weighs only 65 g and delivers 5.01 MP Bayer color output at up to 35 fps over a USB3 Vision interface.

Specs
Specs
  • Go-X Series delivers exceptional combination of price and performance
  • 5.01-megapixel, 2/3” CMOS imager (global shutter)
  • Up to 35.7 fps at full resolution (2448 x 2048)
  • 3.45 μm square pixels
  • 8/10/12-bit* output in choice of monochrome or raw Bayer color models
  • ROI settings for added flexibility
  • Horizontal/vertical image flip function, plus blemish correction and shading compensation
  • Includes Sequencer function and Automatic Level Control (ALC) for dynamic lighting conditions
  • Compact size with excellent shock and vibration resistance
  • Accepts power over USB3 Vision interface or via separate 6-pin connector
  • C-mount lens mount
Technical Data
Technical Data

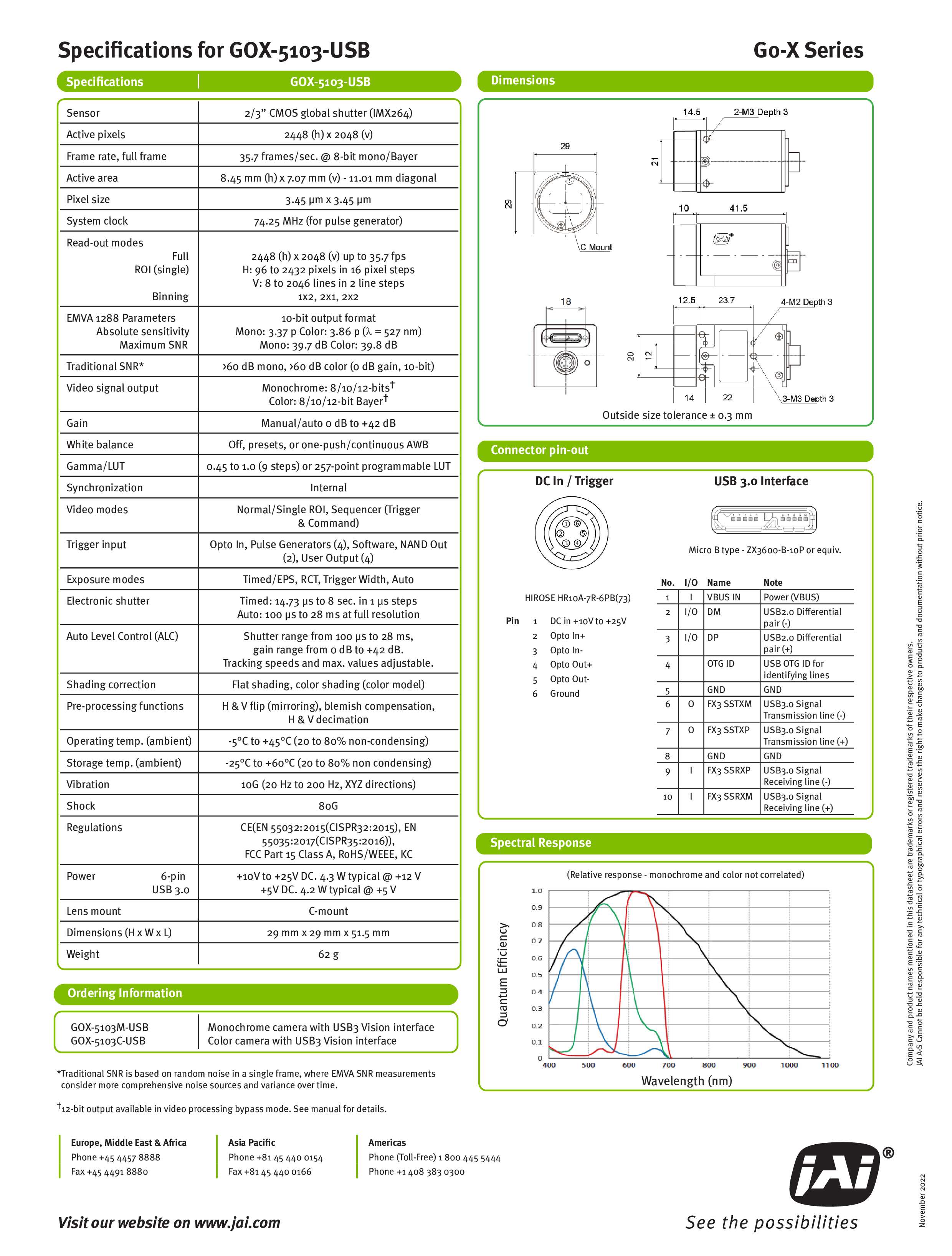

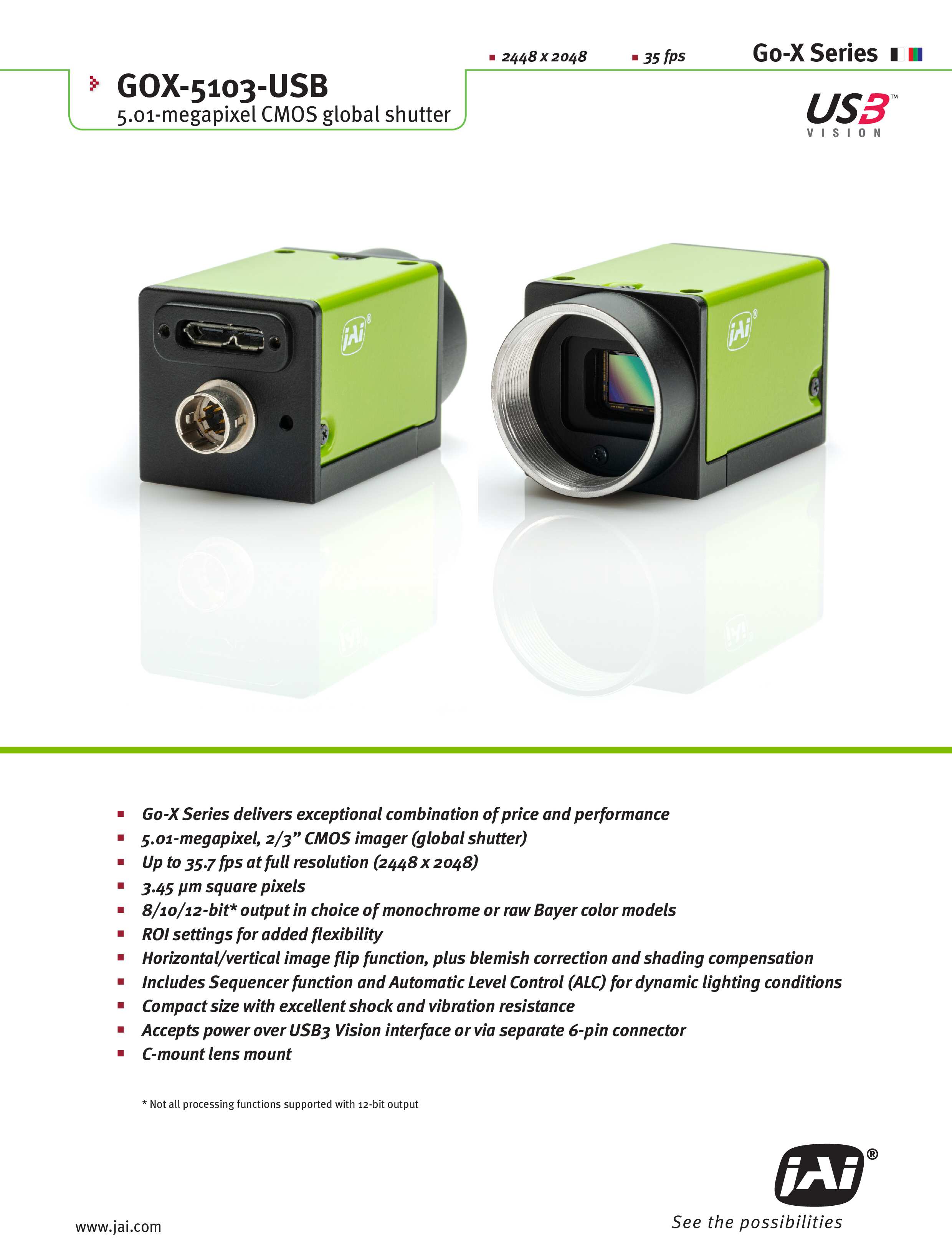

Click the image for detailed specifications and technical data.
