CMOS Prism-Based Camera, 3 x 1.6MP, 24FPS, 3 IMX273 Sensors, GigE Interface, Apex Series - JAI AP-1600T-PGE3
CMOS Prism-Based Camera, 3 x 1.6MP, 24FPS, 3 IMX273 Sensors, GigE Interface, Apex Series - JAI AP-1600T-PGE3
CMOS Prism-Based Camera, 3 x 1.6MP, 24FPS, 3 IMX273 Sensors, GigE Interface, Apex Series - JAI AP-1600T-PGE3
CMOS Prism-Based Camera, 3 x 1.6MP, 24FPS, 3 IMX273 Sensors, GigE Interface, Apex Series - JAI AP-1600T-PGE3
CMOS Prism-Based Camera, 3 x 1.6MP, 24FPS, 3 IMX273 Sensors, GigE Interface, Apex Series - JAI AP-1600T-PGE3
CMOS Prism-Based Camera, 3 x 1.6MP, 24FPS, 3 IMX273 Sensors, GigE Interface, Apex Series - JAI AP-1600T-PGE3

CMOS Prism-Based Camera, 3 x 1.6MP, 24FPS, 3 IMX273 Sensors, GigE Interface, Apex Series - JAI AP-1600T-PGE3

$2,865.00
$2,865.00
The JAI AP-1600T-PGE from the Apex Series is a 3-CMOS prism-based industrial RGB area scan camera delivering 3 x 1.6... Learn more
Request Info
Icon
Quick Shipping
Most items ship within 2-3 business days. Orders with expedited shipping must be received by 2 pm CST.
Order Now
Icon
Quality Guaranteed
Every item is 100% inspected to ensure exceptional quality, high performance and unrivaled reliability.
Shop Now
Icon
Contact Us
Reach out to us anytime via chat, email or phone for more info or assistance placing an order.
Get Support
Details
Specs
Technical Data
Video
Details
Details

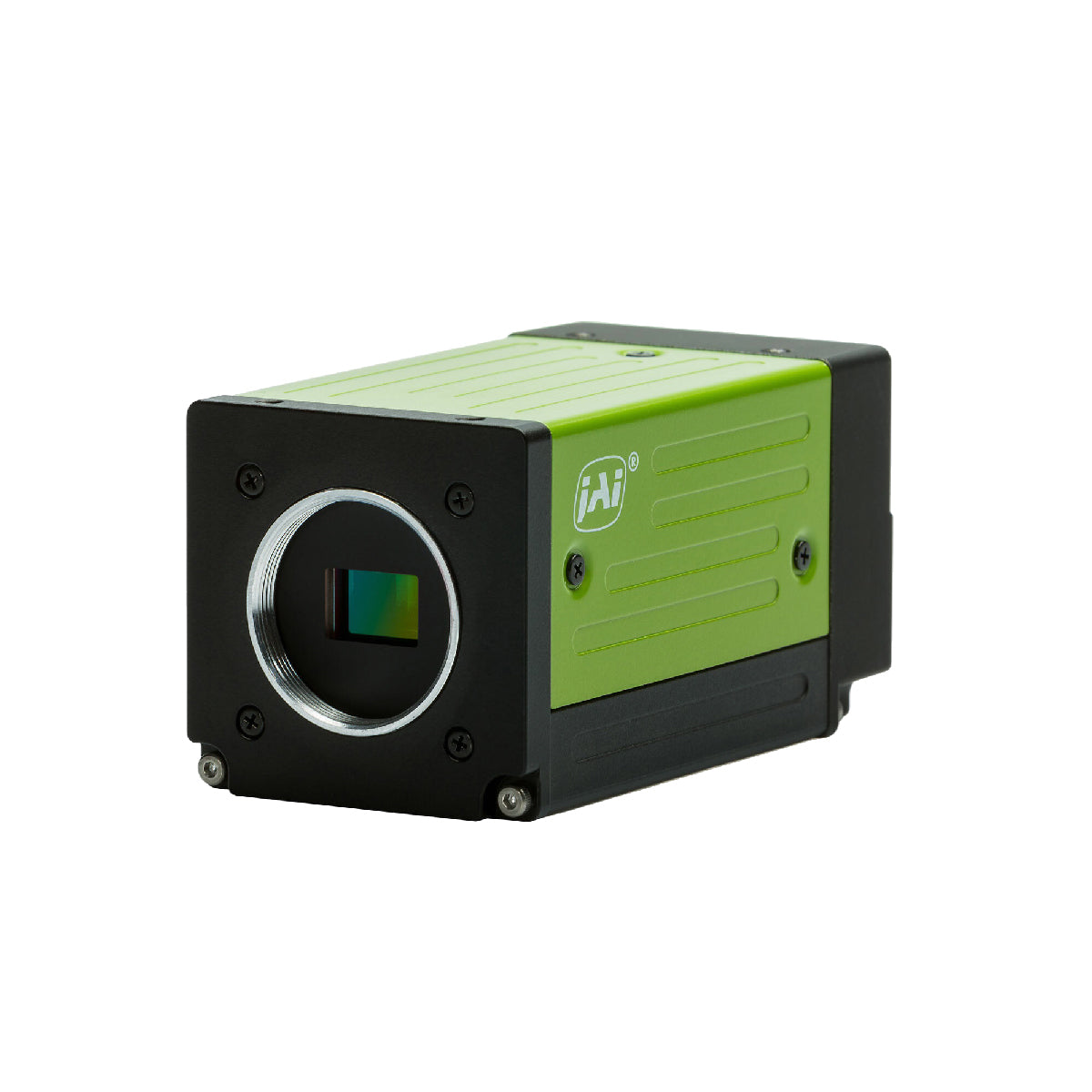

The JAI AP-1600T-PGE from the Apex Series is a 3-CMOS prism-based industrial RGB area scan camera delivering 3 x 1.6 Megapixels (MP) at 24 frames/second. It provides better color fidelity and spatial resolution than traditional Bayer color cameras and is designed for color-critical imaging and inspection tasks in machine vision, life science and microscopy applications.

Specs
Specs
  • High resolution prism-based 3CMOS camera
  • Full spatial resolution and true RGB color values with no interpolation
  • Individual analog gain and exposure control for R, G, and B channels
  • Color and edge enhancement functions
  • On-board RGB to HSI, XYZ, sRGB and Adobe RGB color space conversions
  • Single and multi-ROIs
    RGB video output with 8, 10 or 12-bits per channel
  • Compact size and smart design
  • Excellent shock and vibration resistance
  • GenICam-compliant GigE Vision 1.1 interface
  • C-mount lens mount
Technical Data
Technical Data

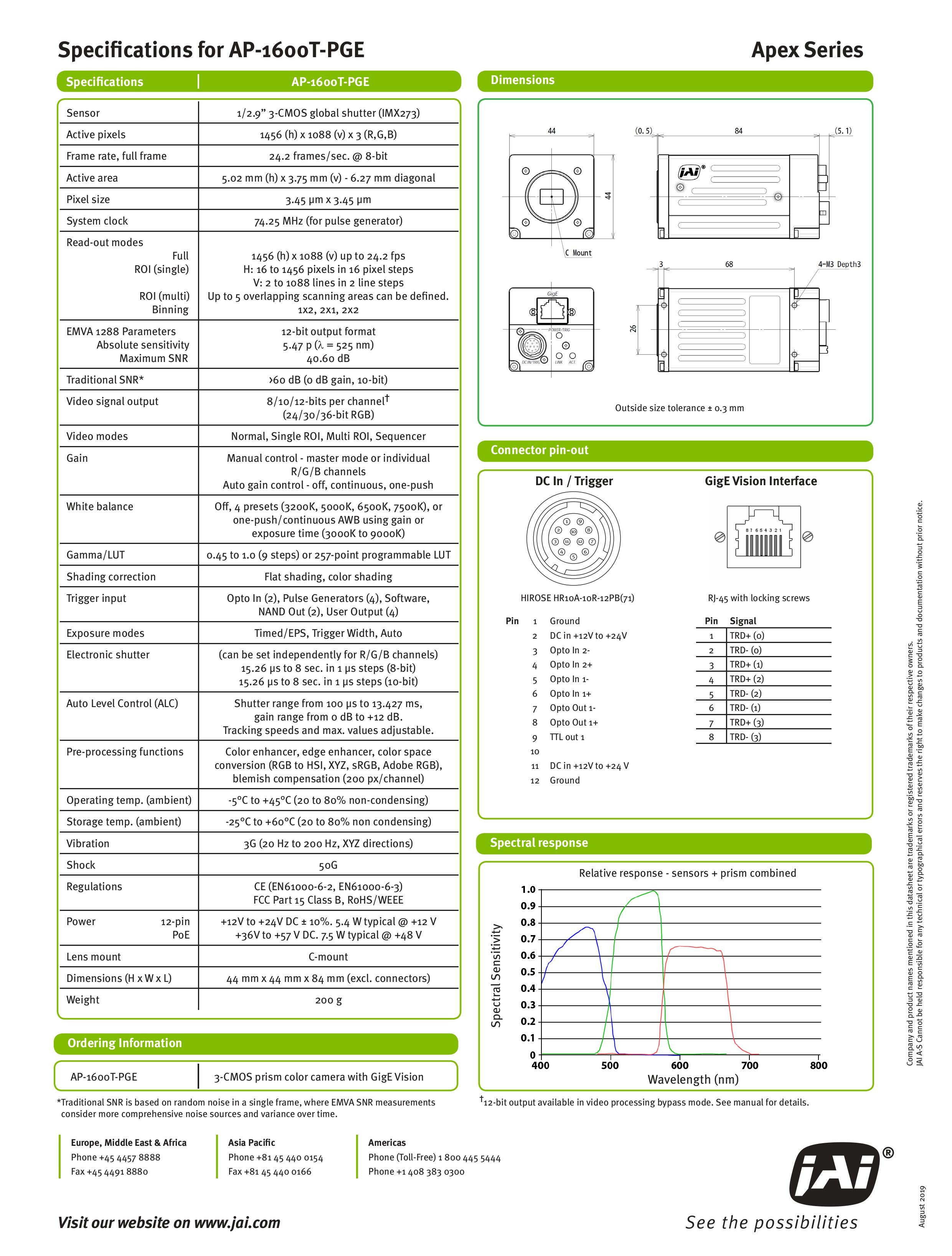

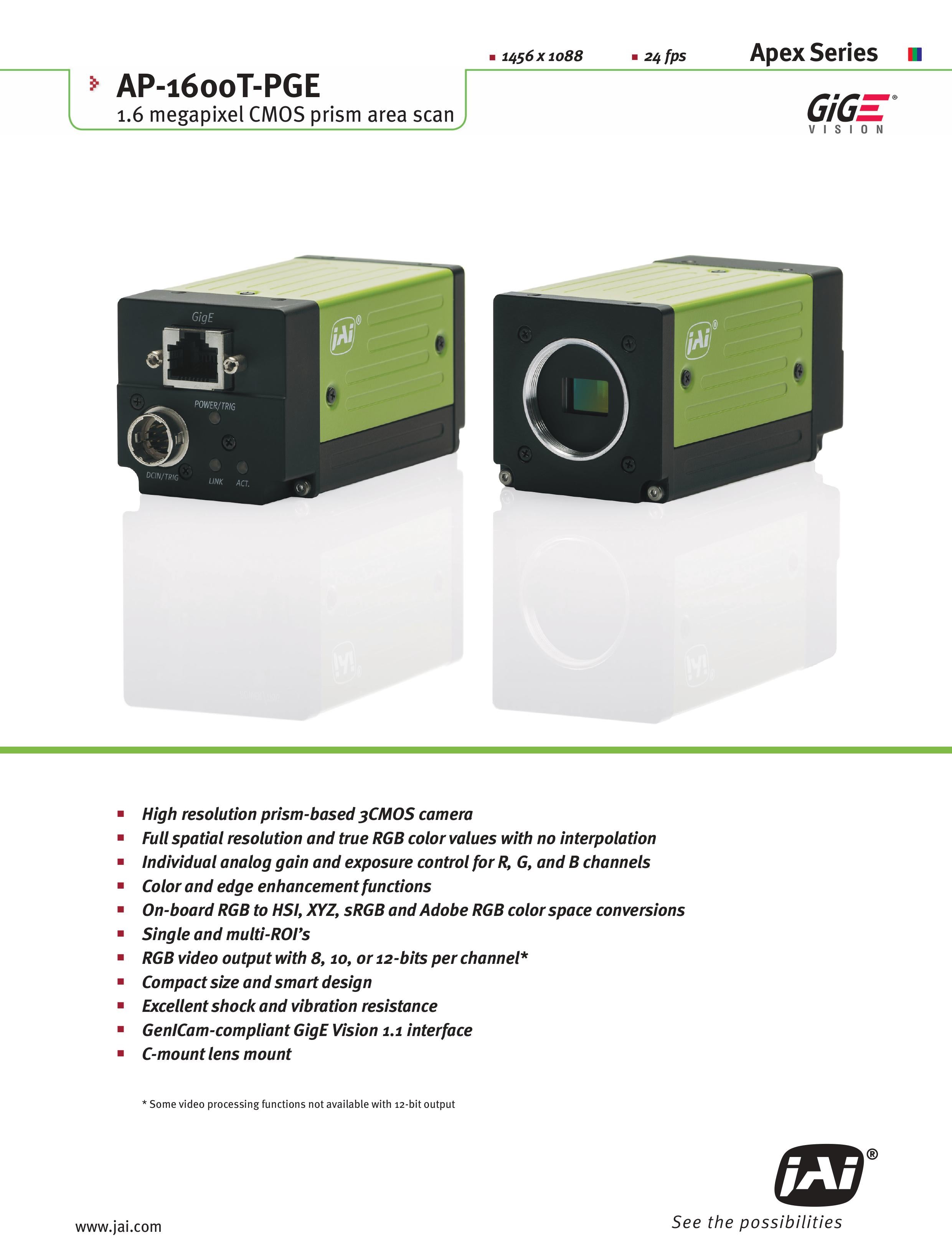

Click the image for detailed specifications and technical data.
