Compact 5MP Area Scan Camera, Monochrome Output, 35.6FPS, Go Series - JAI GO-5101M-PMCL
Compact 5MP Area Scan Camera, Monochrome Output, 35.6FPS, Go Series - JAI GO-5101M-PMCL
Compact 5MP Area Scan Camera, Monochrome Output, 35.6FPS, Go Series - JAI GO-5101M-PMCL
Compact 5MP Area Scan Camera, Monochrome Output, 35.6FPS, Go Series - JAI GO-5101M-PMCL
Compact 5MP Area Scan Camera, Monochrome Output, 35.6FPS, Go Series - JAI GO-5101M-PMCL
Compact 5MP Area Scan Camera, Monochrome Output, 35.6FPS, Go Series - JAI GO-5101M-PMCL

Compact 5MP Area Scan Camera, Monochrome Output, 35.6FPS, Go Series - JAI GO-5101M-PMCL

$1,140.00
$1,140.00
The JAI GO-5101M-PMCL Compact 5 Megapixel (MP) Area Scan Camera from the Go Series is a compact industrial area scan... Learn more
Request Info
Icon
Quick Shipping
Most items ship within 2-3 business days. Orders with expedited shipping must be received by 2 pm CST.
Order Now
Icon
Quality Guaranteed
Every item is 100% inspected to ensure exceptional quality, high performance and unrivaled reliability.
Shop Now
Icon
Contact Us
Reach out to us anytime via chat, email or phone for more info or assistance placing an order.
Get Support
Details
Specs
Technical Data
Video
Details
Details

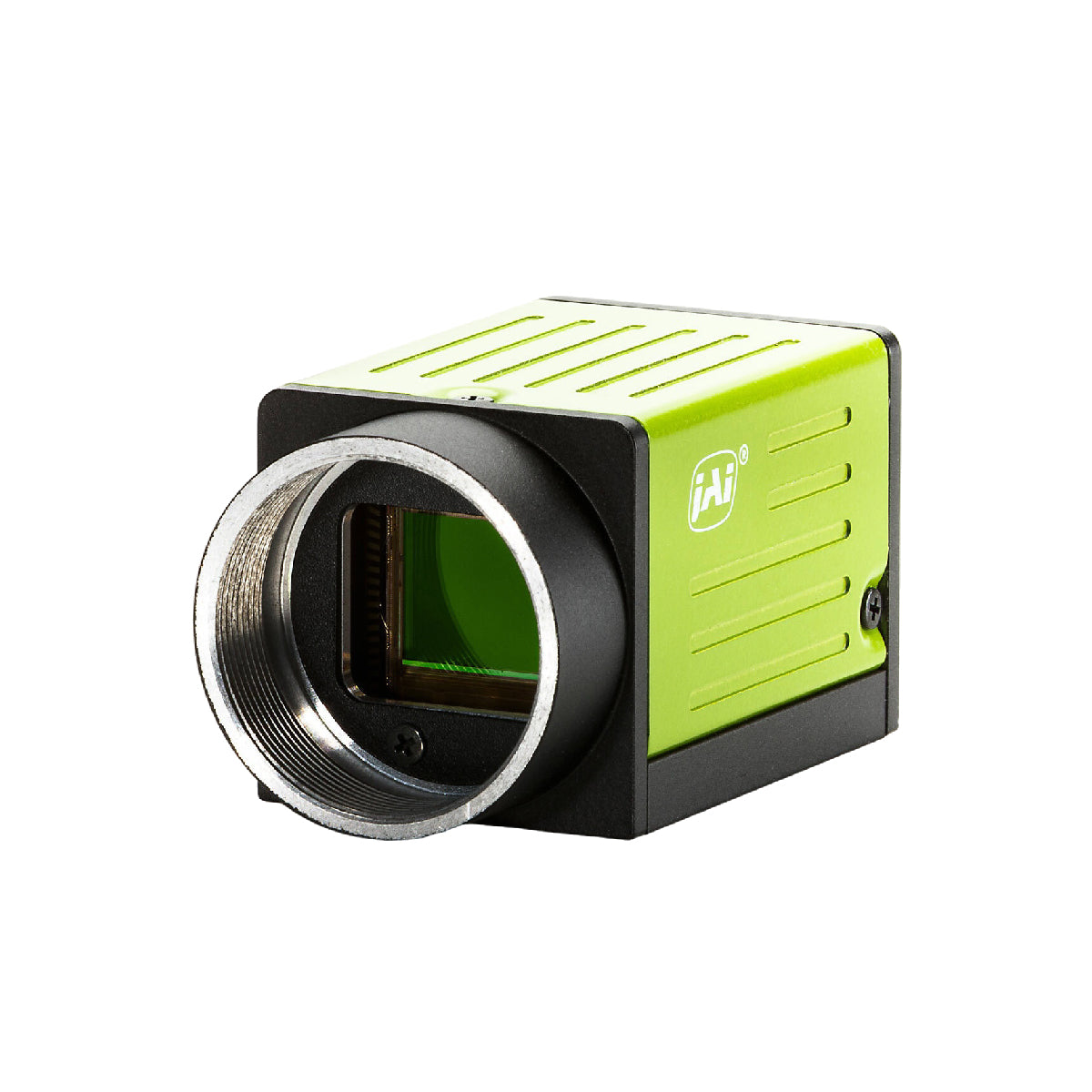

The JAI GO-5101M-PMCL Compact 5 Megapixel (MP) Area Scan Camera from the Go Series is a compact industrial area scan camera delivering an excellent blend of size, versatility and performance. It delivers 5 MP monochrome output at up to 35.6 fps while offering exceptionally low-noise image quality for a wide range of machine vision applications.

Specs
Specs
  • 5.1-megapixel 2/3” CMOS imager (global shutter)
  • Up to 35.6 fps at full resolution
  • 3.45 μm square pixels
  • Small size (29 x 29 x 41.5 mm, excluding lens mount)
  • 8/10/12-bit* output in a choice of monochrome or raw Bayer color models
  • Exposure control from 27.7 μs to 8 seconds in 1 μs steps
  • 2X binning for increased sensitivity (monochrome only)
  • ROI mode for increasing frame rate and use of smaller optics
  • Automatic Level Control (ALC) for dynamic lighting conditions
  • Accepts power over Camera Link interface or separate 4-pin connector
  • C-mount lens mount

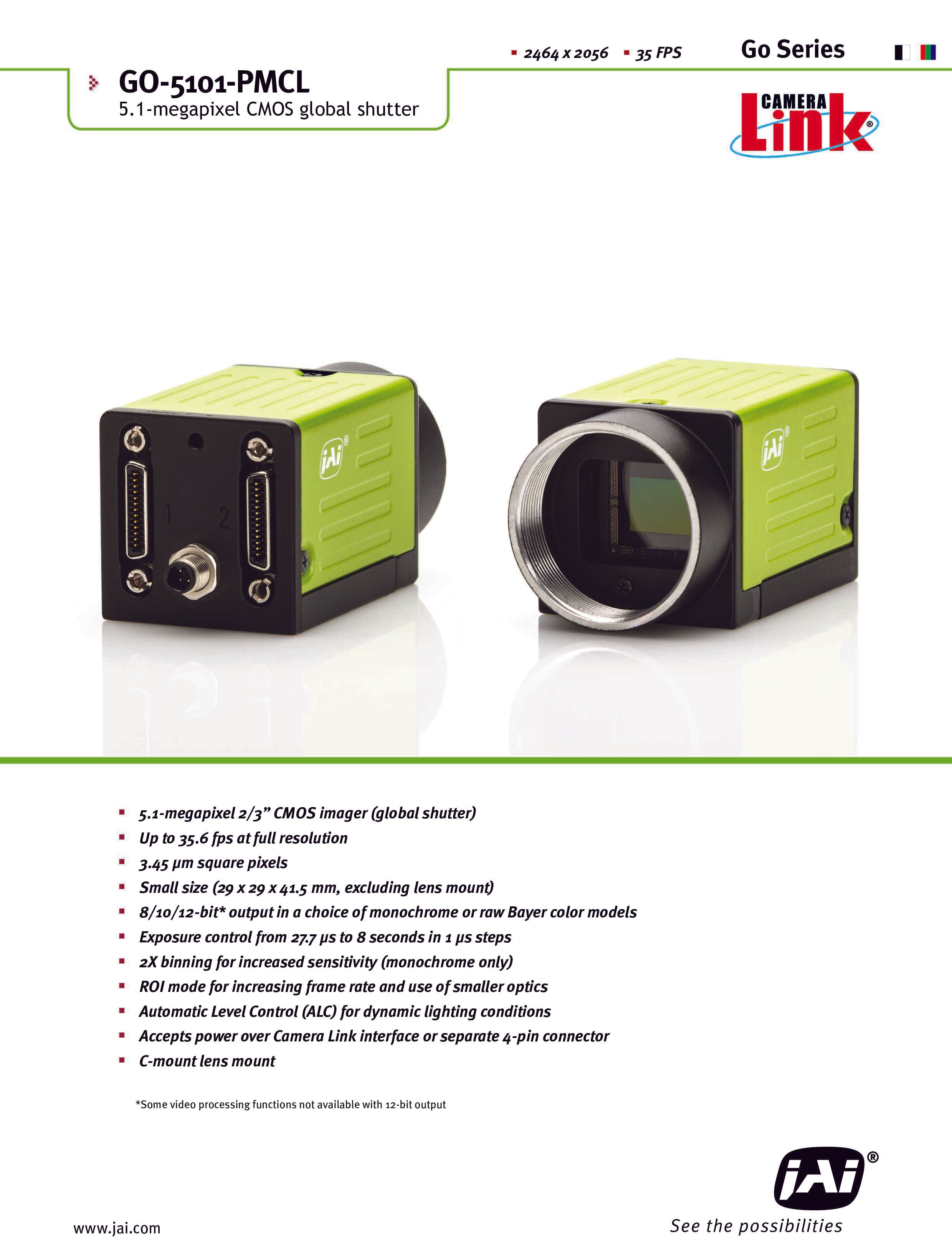

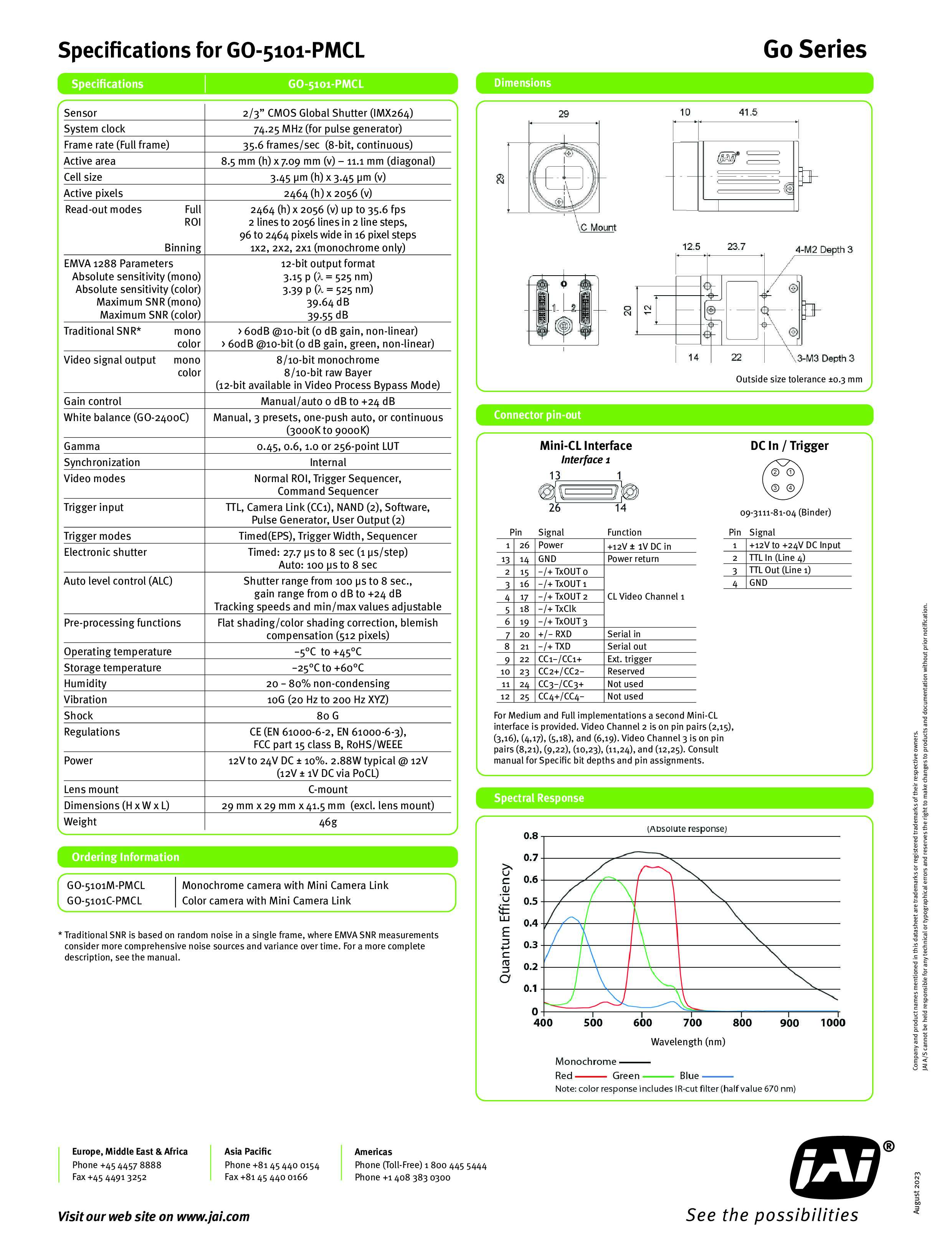

Technical Data
Technical Data

Click the image for detailed specifications and technical data.

Video
Video
