Name: JAI - GOX-3200M-USB Compact 3.2 Megaixel (MP) Area Scan Camera, Go-X Series
Brand: JAI
Price: 909.00 USD
Availability: InStock

$909.00

The JAI GOX-3200M-USB Compact 3.2 Megaixel (MP) Area Scan Camera from the Go-X Series is a small industrial area scan... Learn more

Request Info

Quick Shipping

Most items ship within 2-3 business days. Orders with expedited shipping must be received by 2 pm CST.

Order Now

Quality Guaranteed

Every item is 100% inspected to ensure exceptional quality, high performance and unrivaled reliability.

Shop Now

Reach out to us anytime via chat, email or phone for more info or assistance placing an order.

Get Support

Details

Specs

Technical Data

Video

Details

The JAI GOX-3200M-USB Compact 3.2 Megaixel (MP) Area Scan Camera from the Go-X Series is a small industrial area scan camera offering a blend of features, image quality and industrial-grade reliability perfect for the next generation of machine vision systems. It weighs only 65 g and delivers 3.2 MP monochrome output at up to 119 fps over a USB3 Vision interface.

Specs

Go-X Series delivers exceptional combination of price and performance
3.2-megapixel, 1/1.8” CMOS imager (global shutter)
Up to 119 fps at full resolution (2048 x 1536)
3.45 μm square pixels
8/10/12-bit* output in choice of monochrome or raw Bayer color models
ROI settings for added flexibility
Horizontal/vertical image flip function, plus blemish correction and shading compensation
Includes Sequencer function and Automatic Level Control (ALC) for dynamic lighting conditions
Compact size with excellent shock and vibration resistance
Accepts power over USB3 Vision interface or via separate 6-pin connector
C-mount lens mount

Technical Data

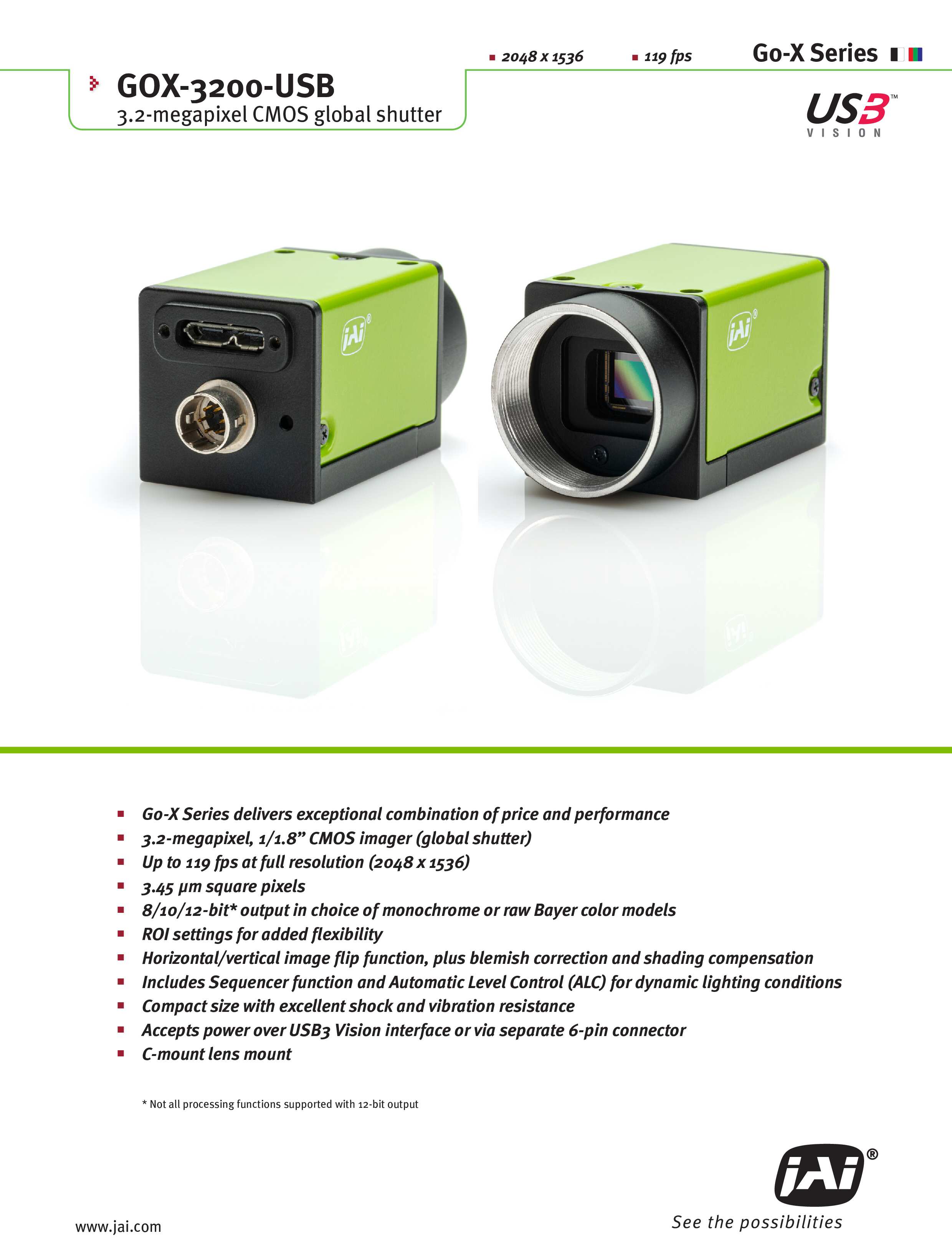

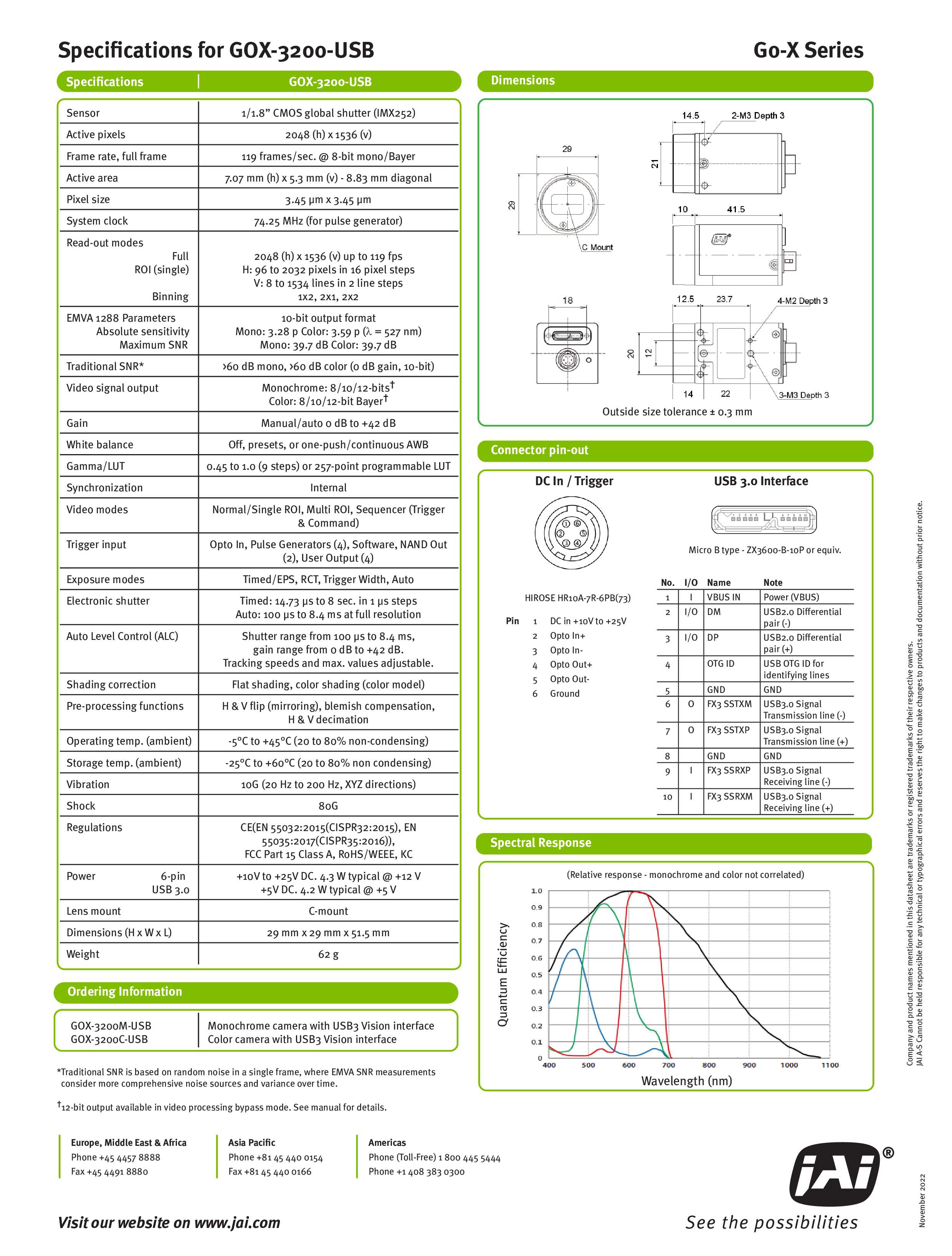

Click the image for detailed specifications and technical data.
