$860.00
$860.00
The JAI GO-2401M-PGE Compact 2.35 Megapixel (MP) Area Scan Camera from the Go Series is a compact industrial area scan... Learn more
Request Info
Icon
Quick Shipping
Most items ship within 2-3 business days. Orders with expedited shipping must be received by 2 pm CST.
Order Now
Icon
Quality Guaranteed
Every item is 100% inspected to ensure exceptional quality, high performance and unrivaled reliability.
Shop Now
Icon
Contact Us
Reach out to us anytime via chat, email or phone for more info or assistance placing an order.
Get Support
Details
Specs
Technical Data
Video
Details
Details

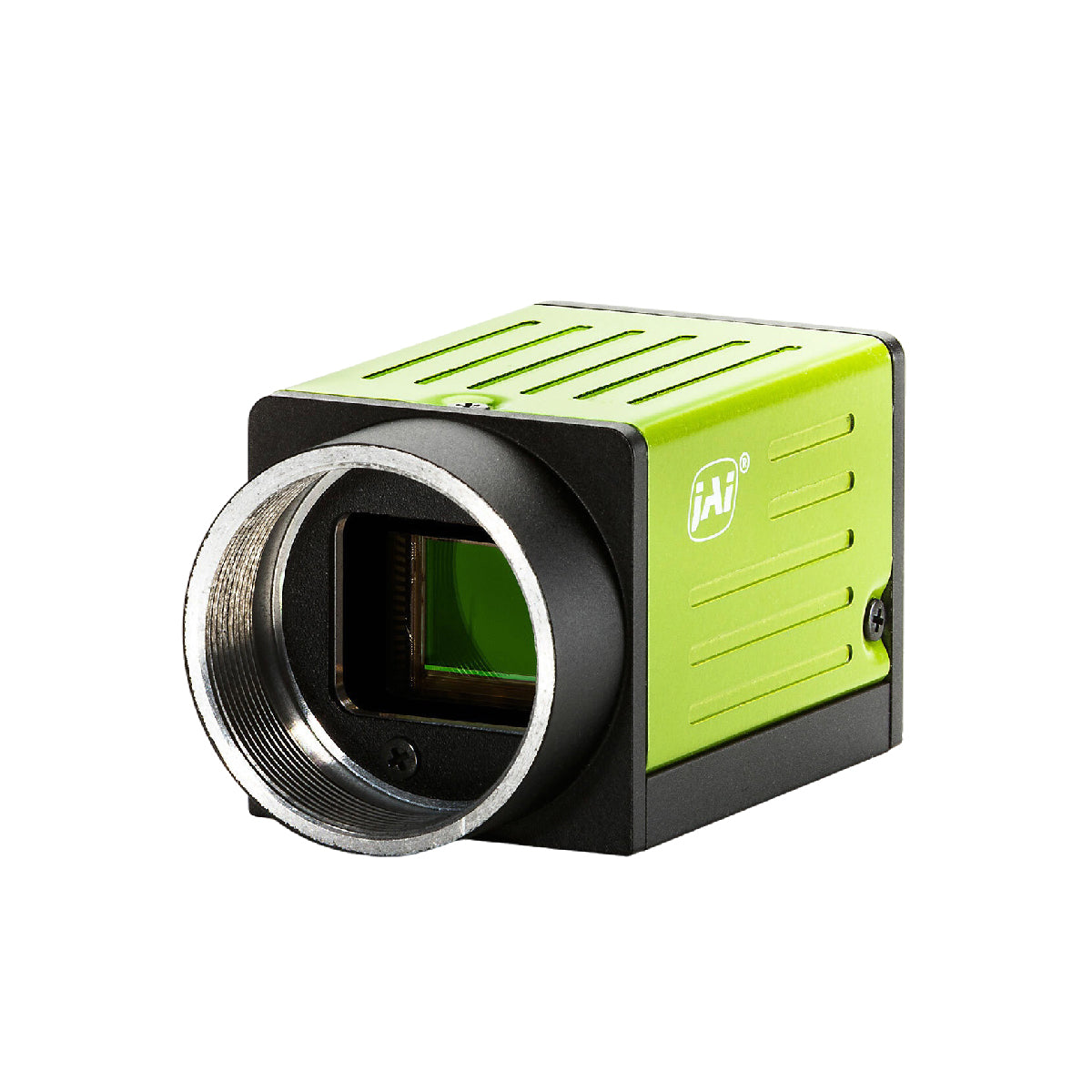

The JAI GO-2401M-PGE Compact 2.35 Megapixel (MP) Area Scan Camera from the Go Series is a compact industrial area scan camera delivering an excellent blend of size, versatility and performance. It delivers 2.35 MP monochrome output at up to 41 fps while offering exceptional low-noise image quality for a wide range of machine vision applications.

Specs
Specs
  • 2.35-megapixel 1/1.2” CMOS imager (global shutter)
  • Up to 41 fps at full resolution
  • 5.86 μm square pixels
  • Small size (29 x 29 x 41.5 mm, excluding lens mount)
  • 8/10/12-bit output* in choice of monochrome or raw Bayer color models
  • Exposure control from 14.7 μs to 8 seconds in 1 μs steps
  • 2X binning for increased sensitivity (monochrome only)
  • Single and multi-ROI modes for flexible windowing and use of smaller optics
  • Automatic Level Control (ALC) for dynamic lighting conditions
  • Accepts power over GigE Vision interface or separate 6-pin connector
  • C-mount lens mount
Technical Data
Technical Data

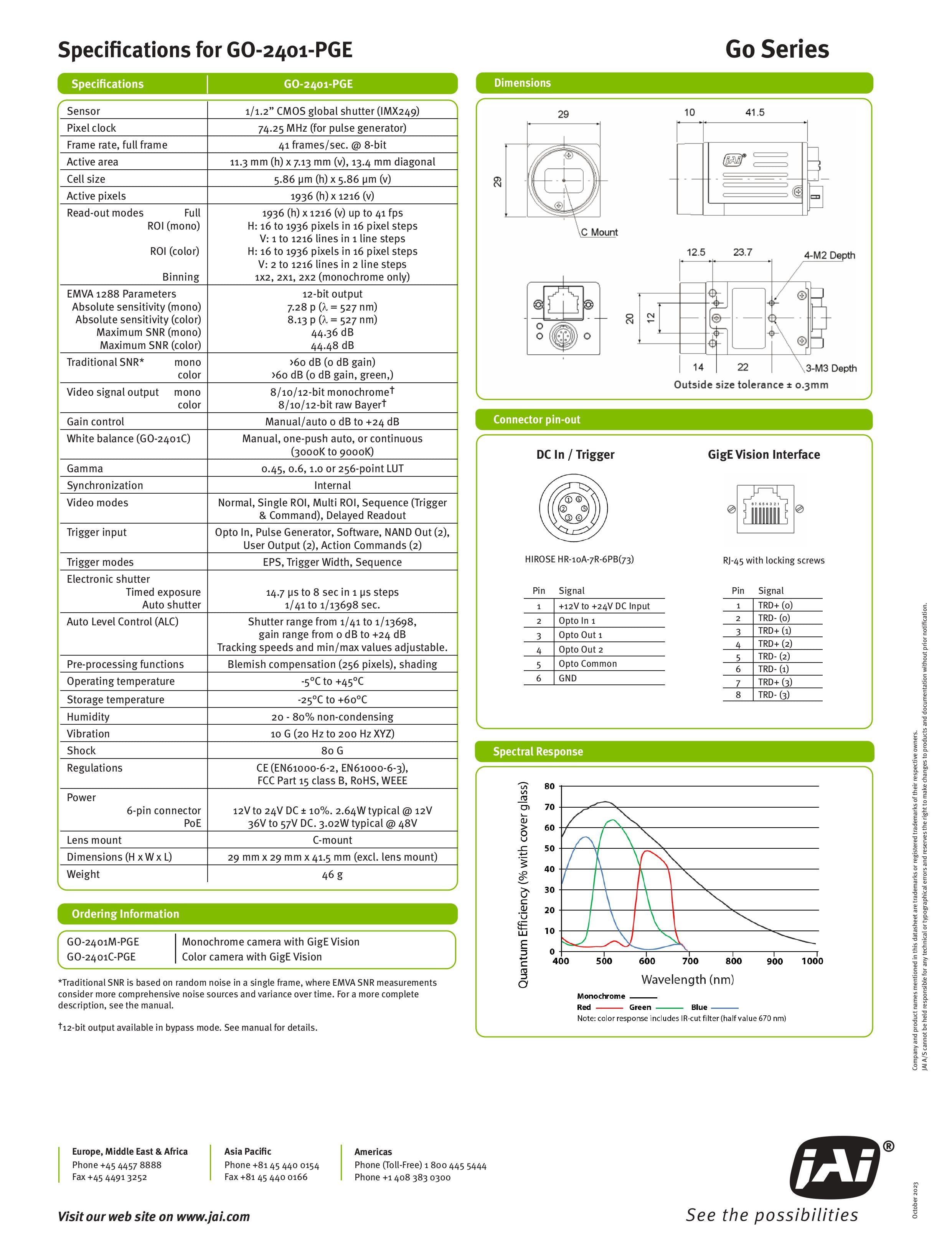

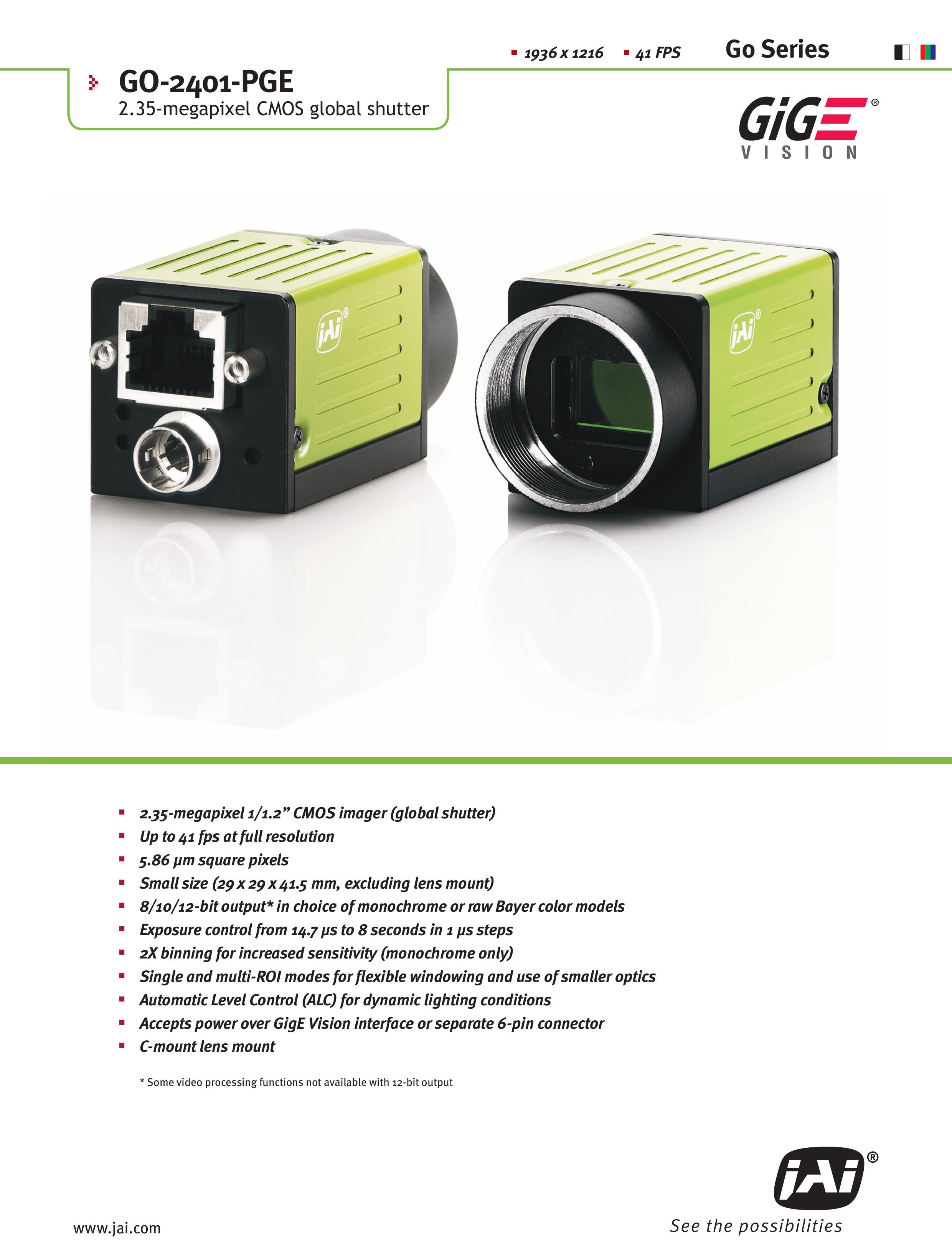

Click the image for detailed specifications and technical data.
