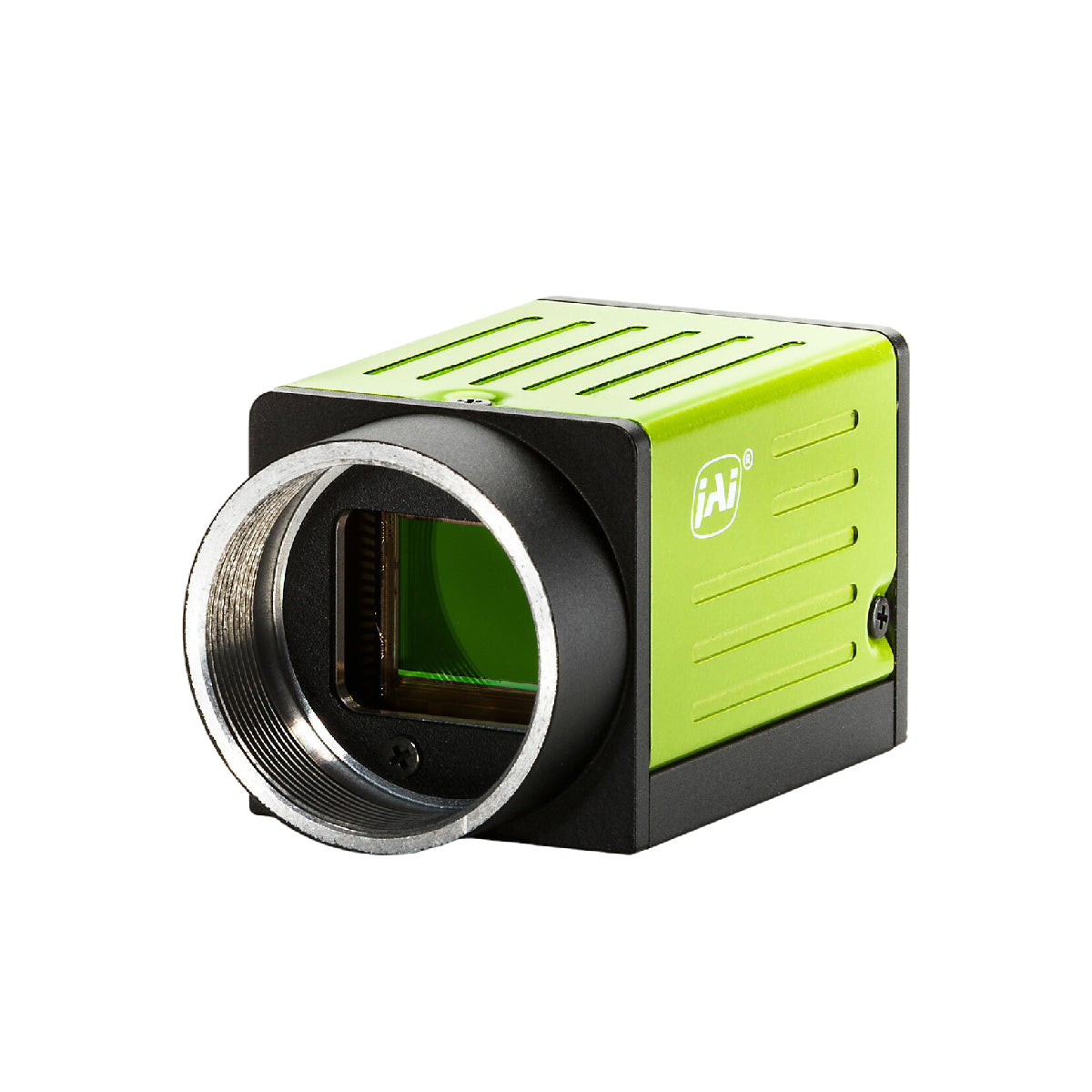

The JAI GO-5000M-PGE-1 Compact 5 Megapixel (MP) Area Scan Camera from the Go Series is a compact industrial area scan camera delivering an excellent blend of size, versatility and performance. It delivers 5 MP monochrome output at up to 22 fps, with flexible ROI and binning capabilities that enable the camera to be tailored to a wide range of machine vision applications.

Specs
Specs
  • Large format 5 MP CMOS imager (global shutter)
  • Up to 22 fps at full resolution
  • 5.0 μm square pixels
  • Small size (29 x 29 x 41.5 mm, excluding lens mount)
  • 8/10/12-bit monochrome output
  • 60 dB linear dynamic range with built-in HDR modes up to 100 dB
  • Analog and digital gain control for less quantized noise in low-light situations
  • Exposure control from 10 μs to 8 seconds in 1 μs steps
  • 2X and 4X binning for increased sensitivity
  • Single and multi-ROI modes for flexible windowing and use of 2/3” or smaller optics
  • Accepts power over GigE Vision interface or separate 6-pin connector
  • C-mount lens mount
  • Automatic Level Control (ALC) for dynamic lighting conditions
Technical Data
Technical Data

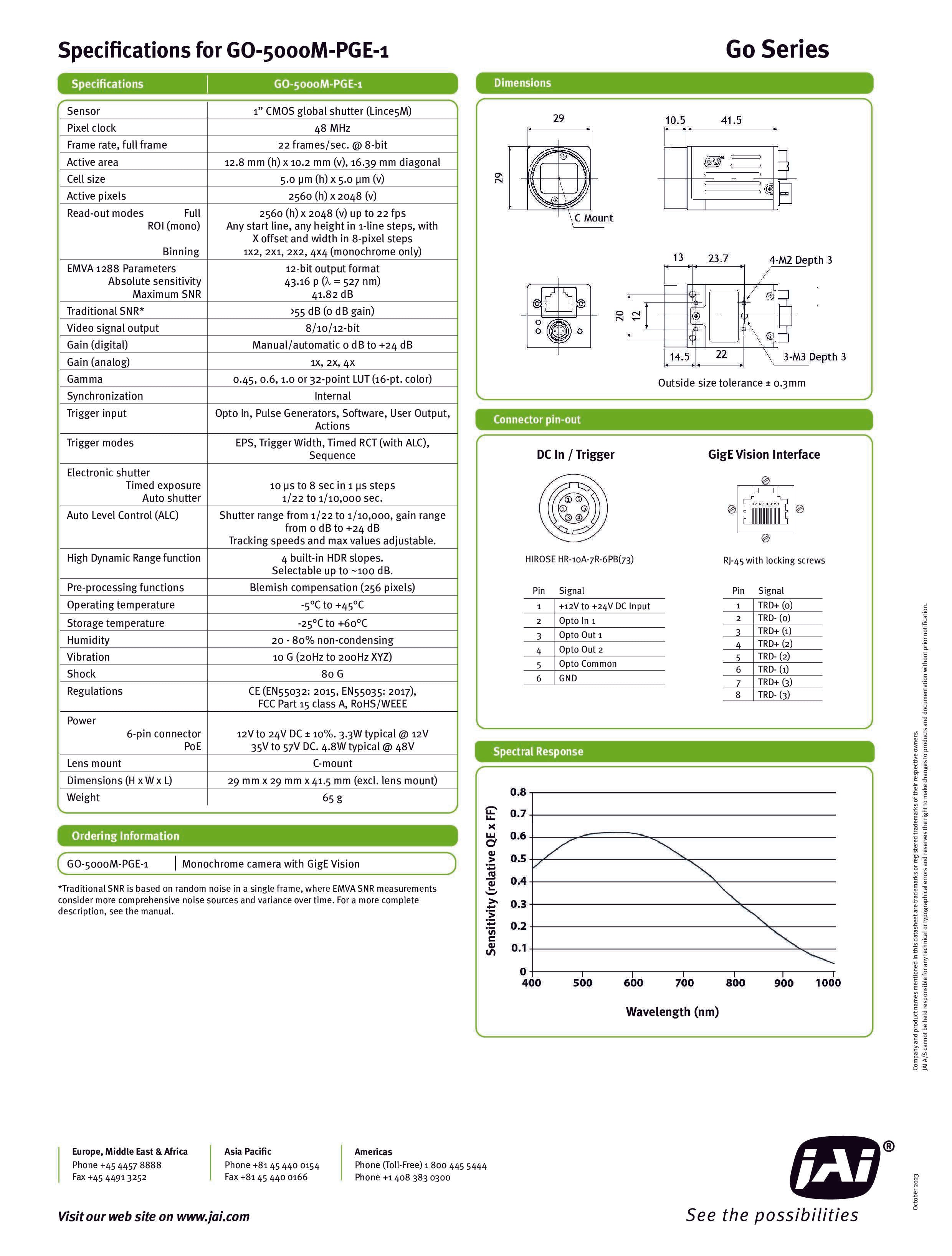

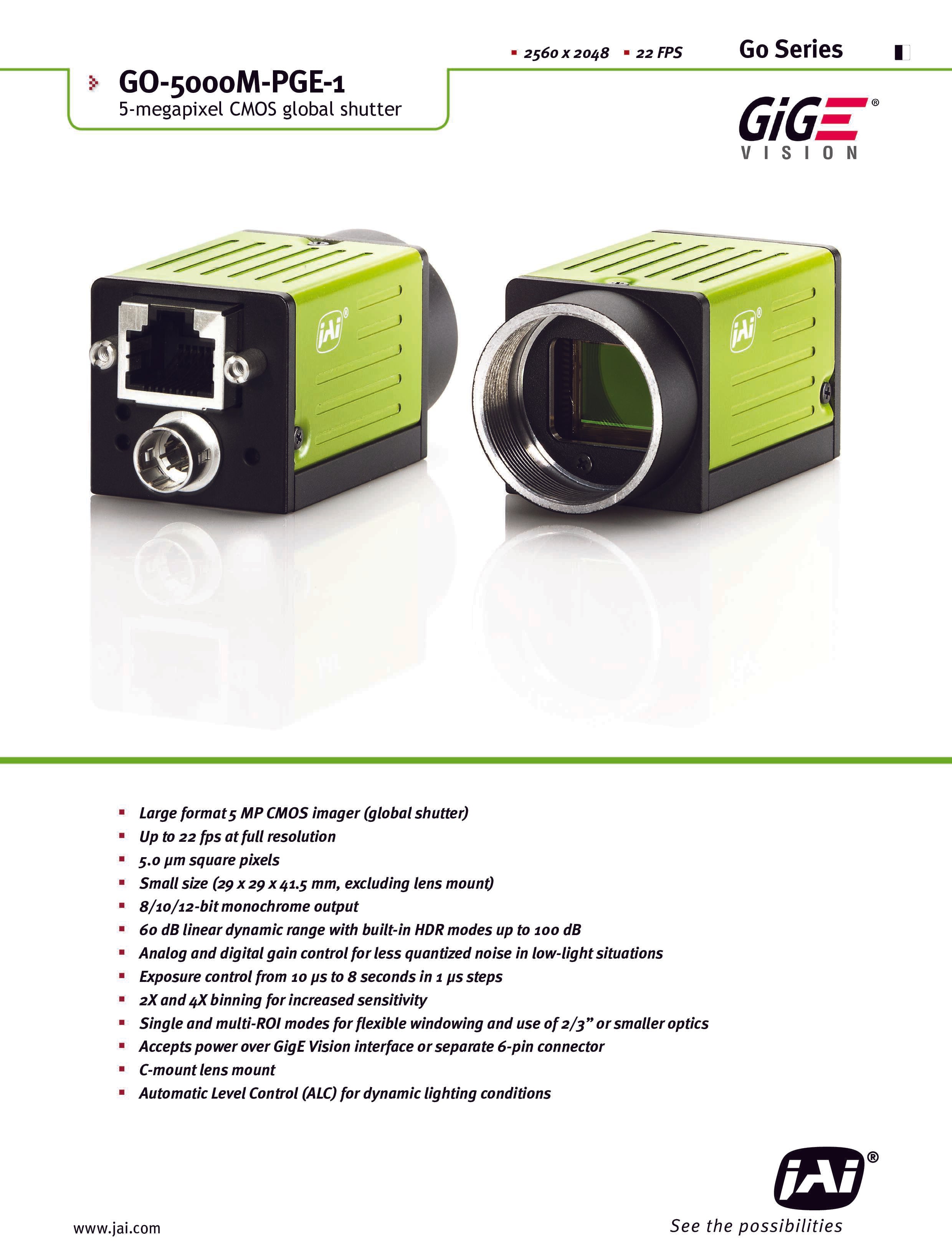

Click the image for detailed specifications and technical data.
