The JAI GOX-5105M-PGE Compact 5.1 Megapixel (MP) Area Scan Camera from the Go-X Series is a small industrial area scan... Learn more
Request Info
Icon
Quick Shipping
Most items ship within 2-3 business days. Orders with expedited shipping must be received by 2 pm CST.
Order Now
Icon
Quality Guaranteed
Every item is 100% inspected to ensure exceptional quality, high performance and unrivaled reliability.
Shop Now
Icon
Contact Us
Reach out to us anytime via chat, email or phone for more info or assistance placing an order.
Get Support
Details
Specs
Technical Data
Video
Details
Details

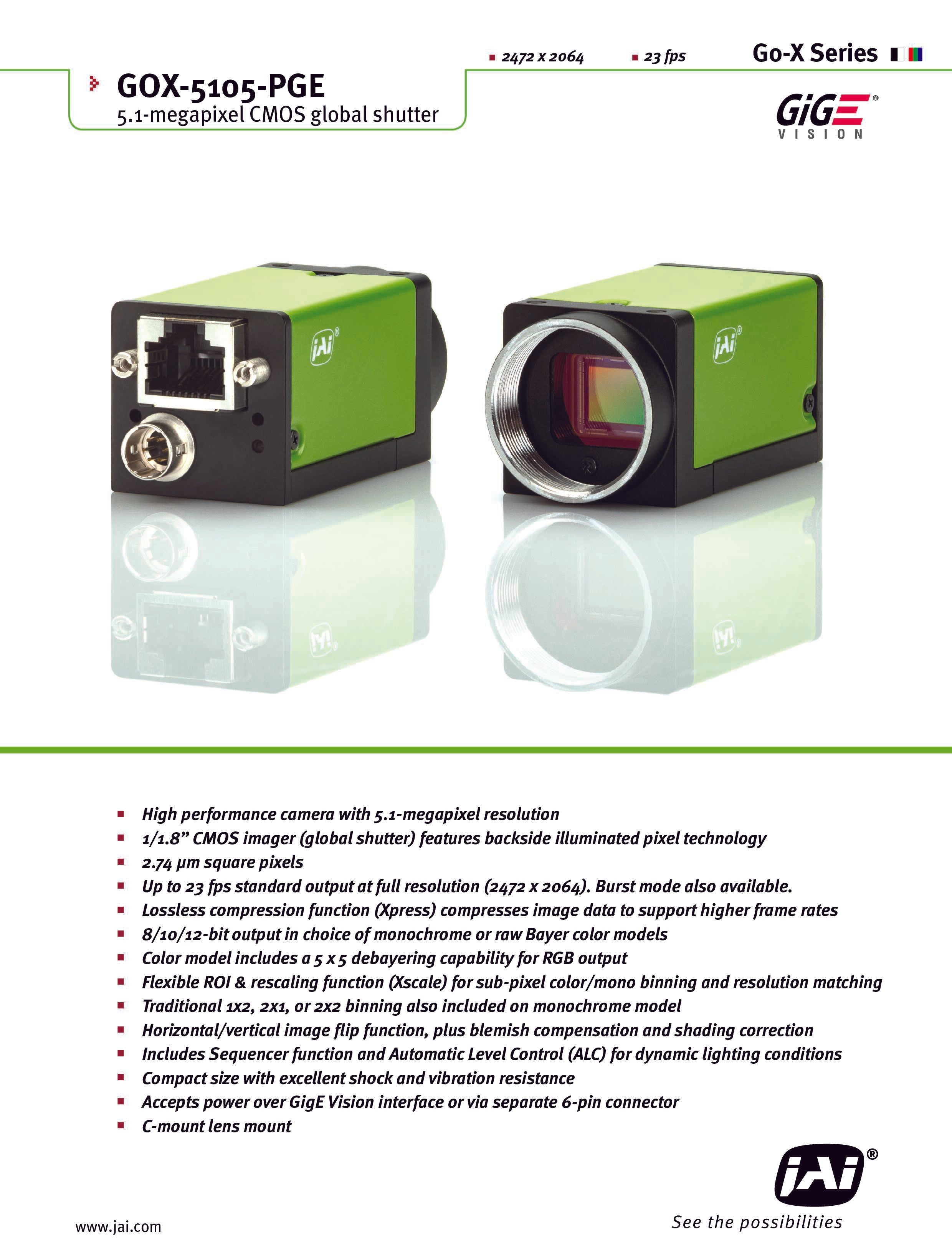

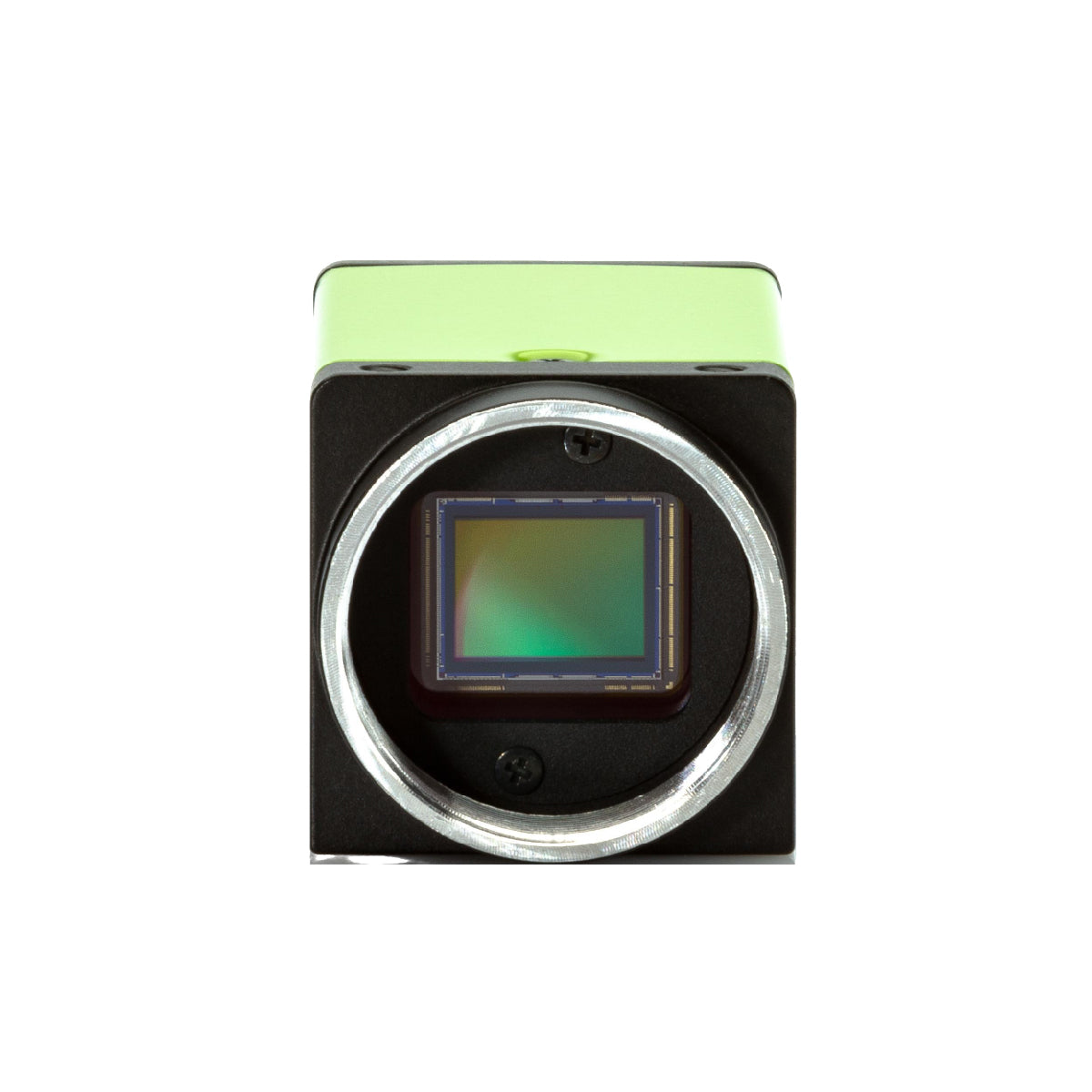

The JAI GOX-5105M-PGE Compact 5.1 Megapixel (MP) Area Scan Camera from the Go-X Series is a small industrial area scan camera offering a blend of features, image quality and industrial-grade reliability perfect for the next generation of machine vision systems. The camera features a state-of-the-art Sony Pregius S sensor with backside illumination (BSI) technology and a GigE Vision 2.0 interface providing 5.1 MP monochrome images at up to 23 fps. Higher frame rates are possible using JAI "Xpress" lossless compression function.

Specs
Specs
  • High performance camera with 5.1-megapixel resolution
  • 1/1.8” CMOS imager (global shutter) features backside illuminated pixel technology
  • 2.74 μm square pixels
  • Up to 23 fps standard output at full resolution (2472 x 2064)
  • Lossless compression function (Xpress) compresses image data to support higher frame rates
  • 8/10/12-bit output in choice of monochrome or raw Bayer color models
  • Color model includes a 5 x 5 debayering capability for RGB output
    Flexible ROI & rescaling function (Xscale) for sub-pixel color/mono binning and resolution matching
  • Traditional 1x2, 2x1, or 2x2 binning also included on monochrome model
  • Horizontal/vertical image flip function, plus blemish compensation and shading correction
  • Includes Sequencer function and Automatic Level Control (ALC) for dynamic lighting conditions
  • Compact size with excellent shock and vibration resistance
  • Accepts power over GigE Vision interface or via separate 6-pin connector
  • C-mount lens mount

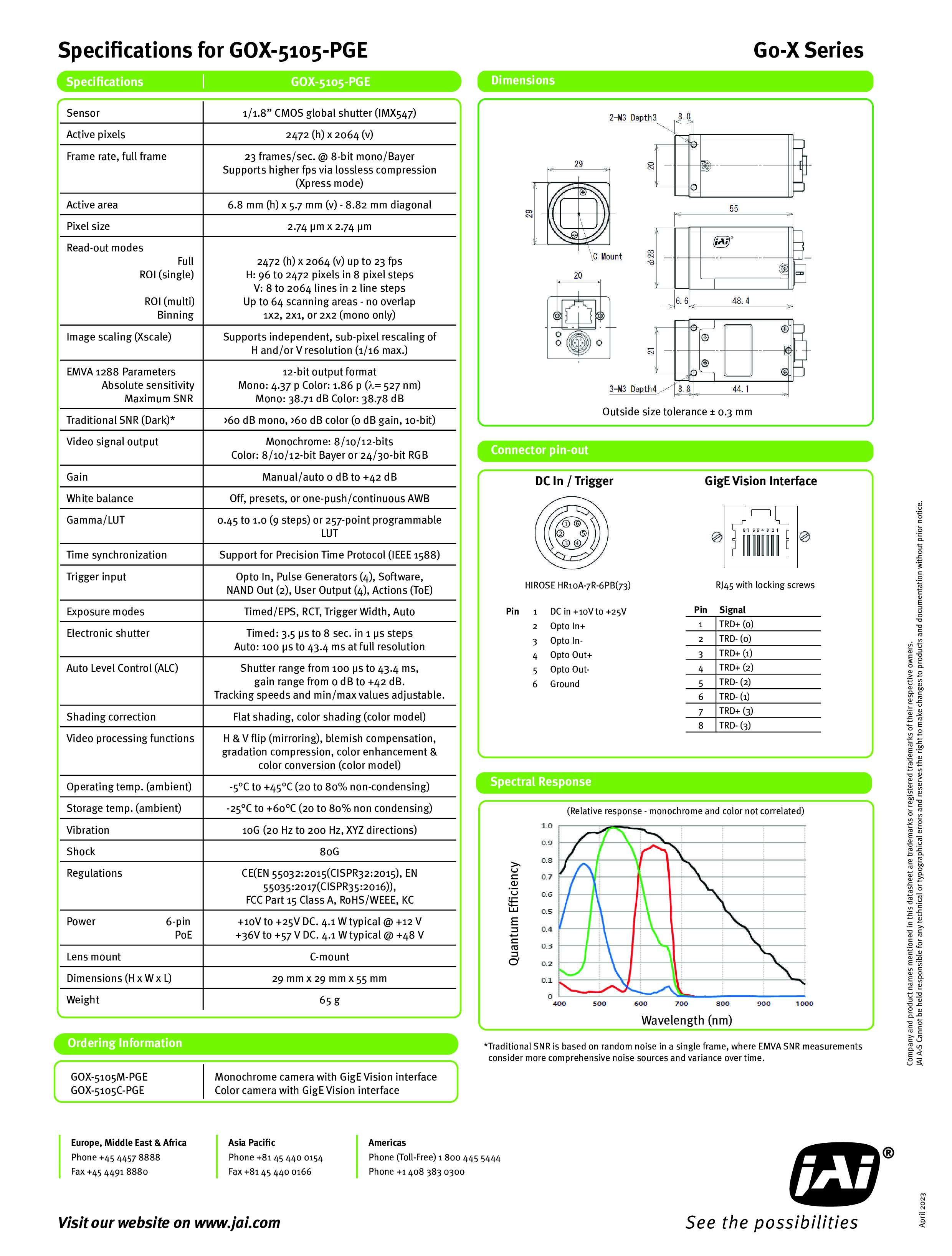

Technical Data
Technical Data

Click the image for detailed specifications and technical data.
