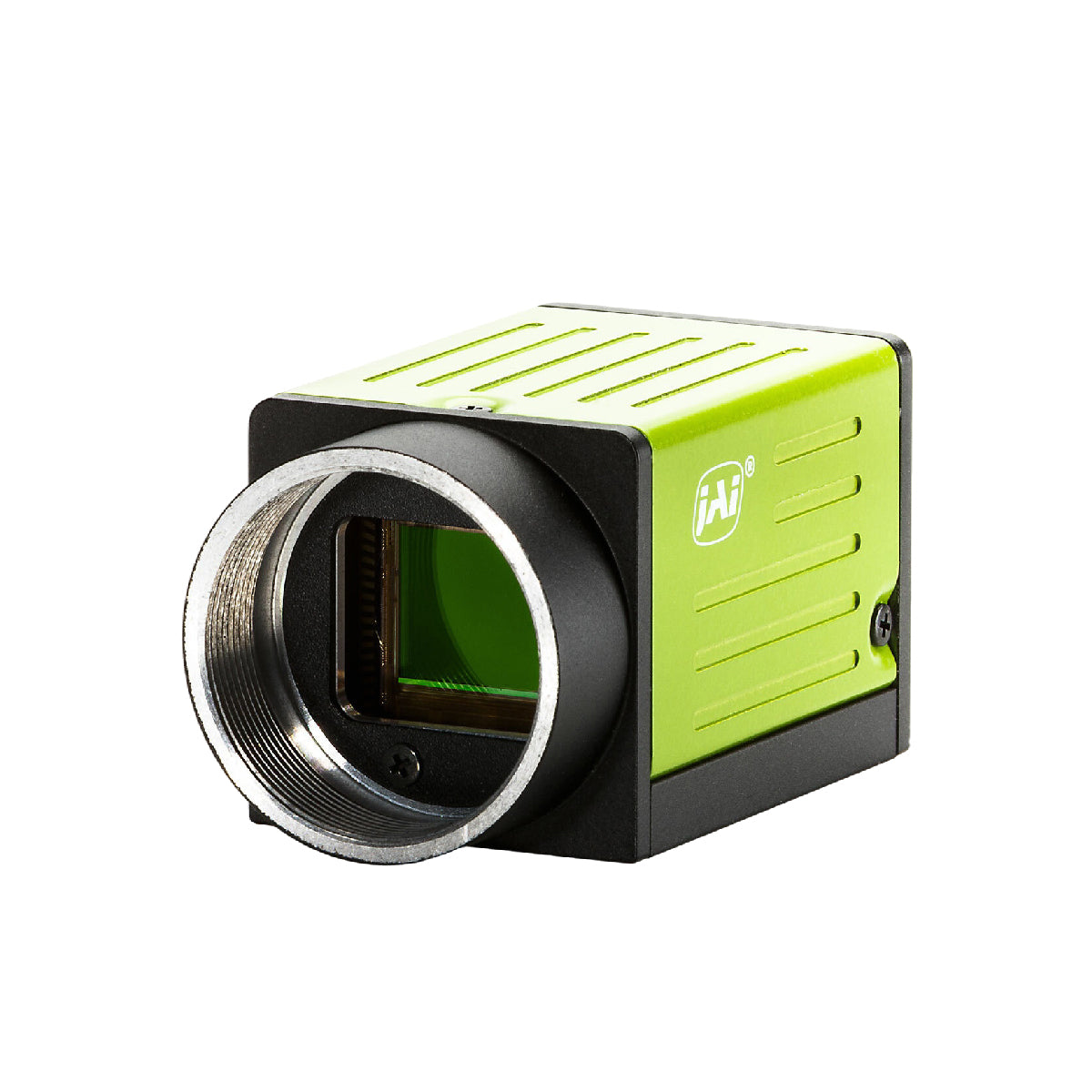

The JAI GO-5100C-PGE-1 Compact 5 Megapixel (MP) Area Scan Camera from the Go Series is a compact industrial area scan camera delivering an excellent blend of size, versatility and performance. It delivers 5 MP raw Bayer color output at up to 22.7 fps while offering exceptionally low-noise image quality for a wide range of machine vision applications.

Specs
Specs
  • 5.1-megapixel 2/3” CMOS imager (global shutter)
  • Up to 22.7 fps at full resolution
    3.45 μm square pixels
  • Small size (29 x 29 x 41.5 mm, excluding lens mount)
  • 8/10/12-bit output* in a choice of monochrome or raw Bayer color models
  • Exposure control from 14.7 μs to 8 seconds in 1 μs steps
  • 2X binning for increased sensitivity (monochrome only)
  • Single and multi-ROI modes for flexible windowing and use of smaller optics
  • Automatic Level Control (ALC) for dynamic lighting conditions
  • Accepts power over GigE Vision interface or separate 6-pin connector
  • C-mount lens mount
Technical Data
Technical Data

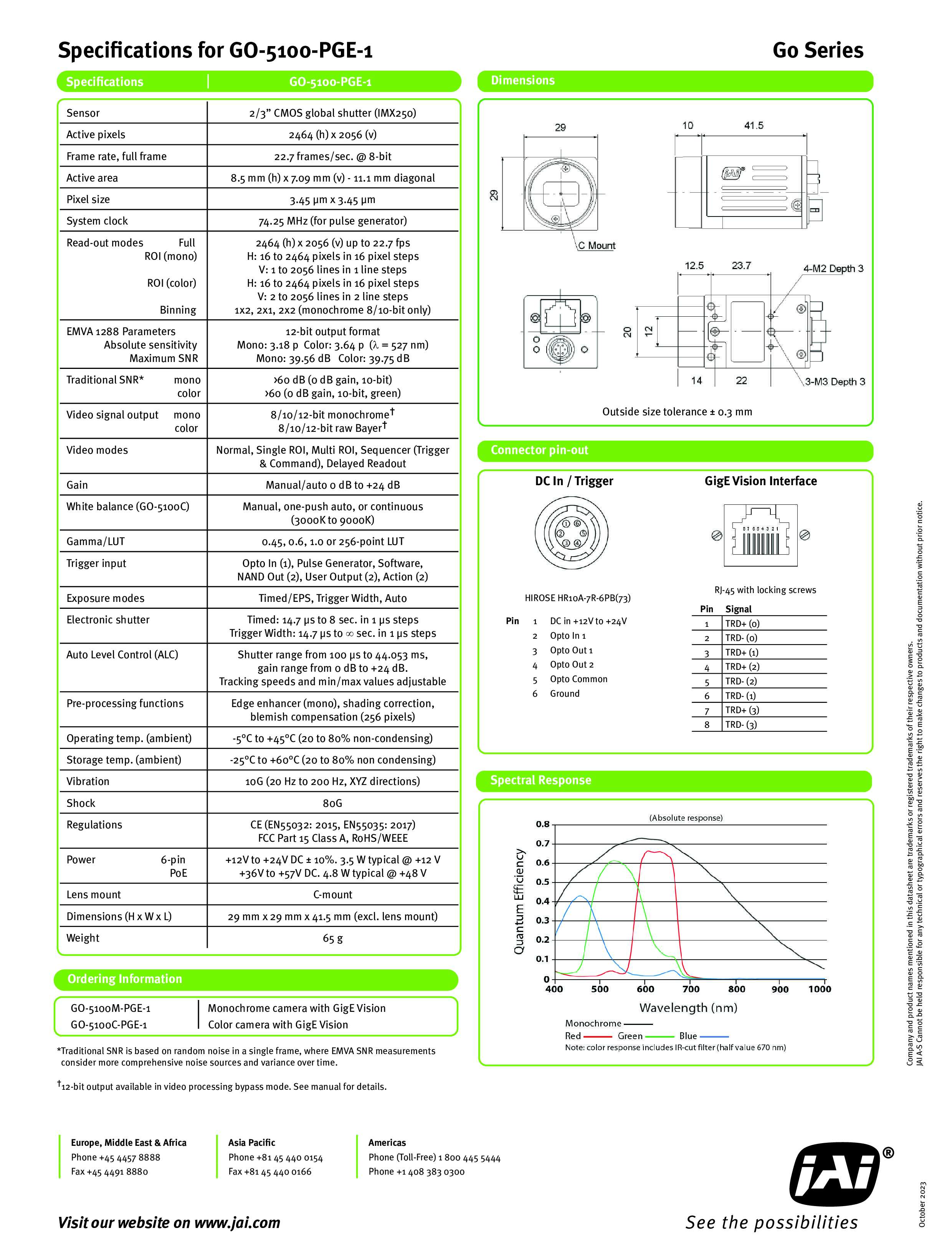

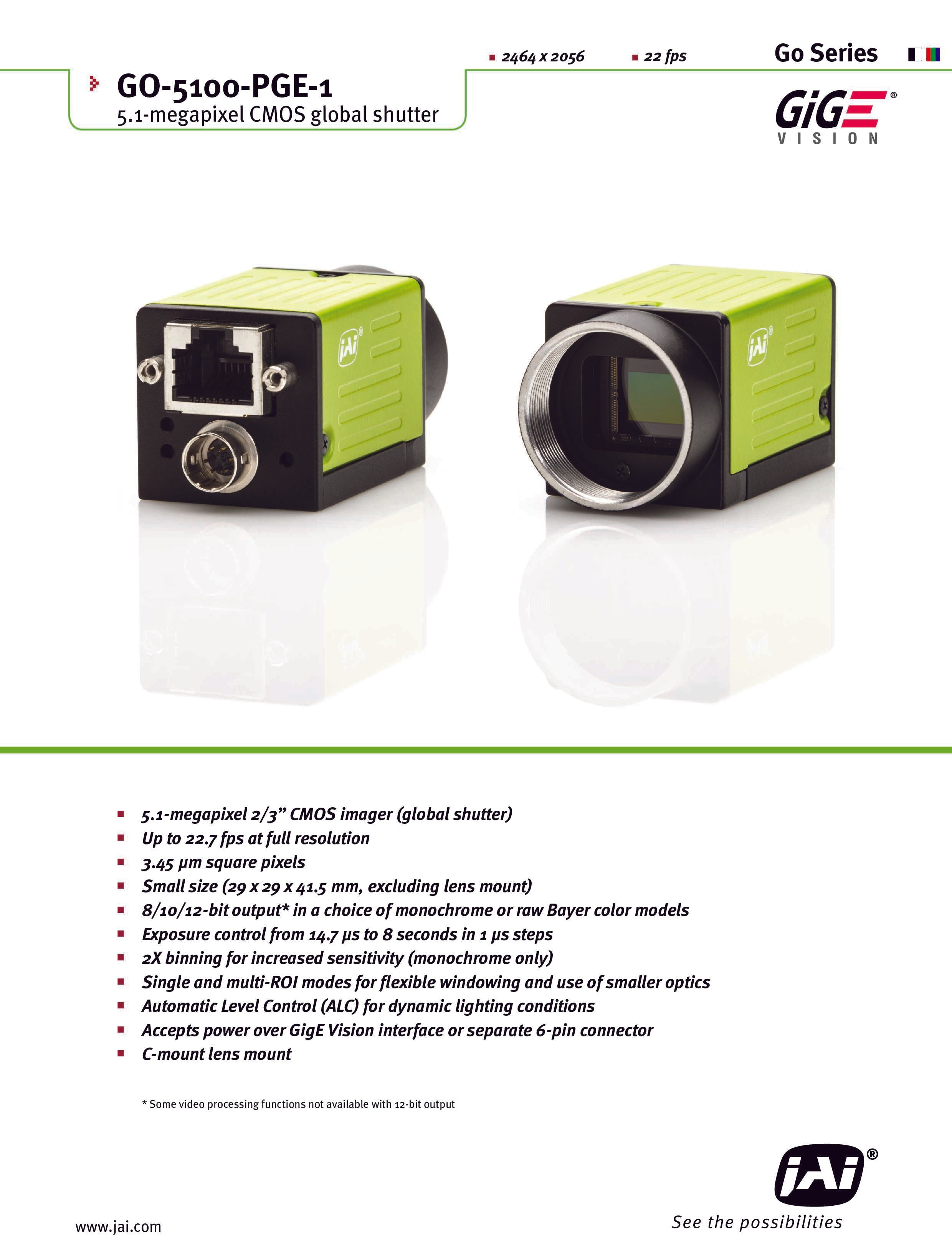

Click the image for detailed specifications and technical data.
