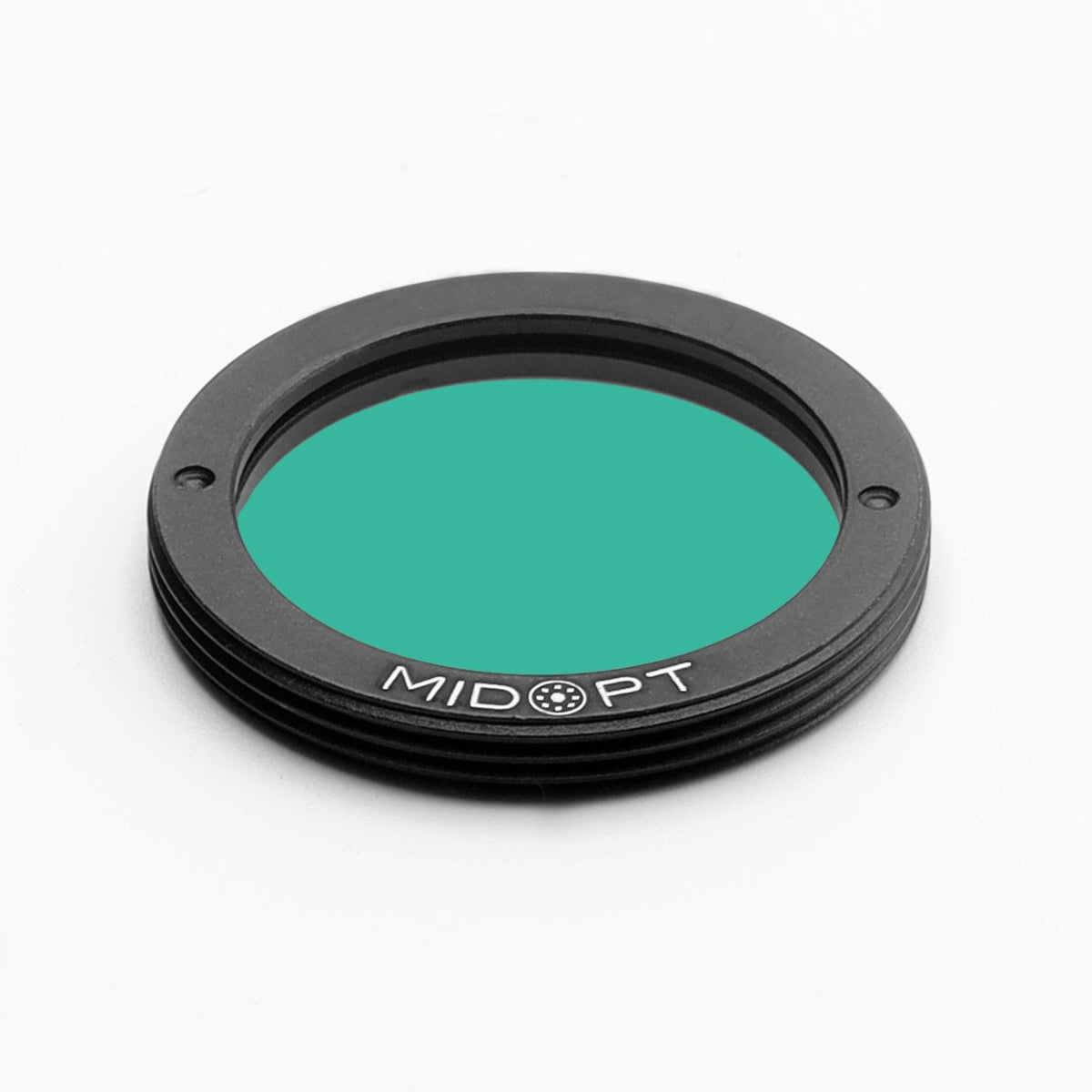

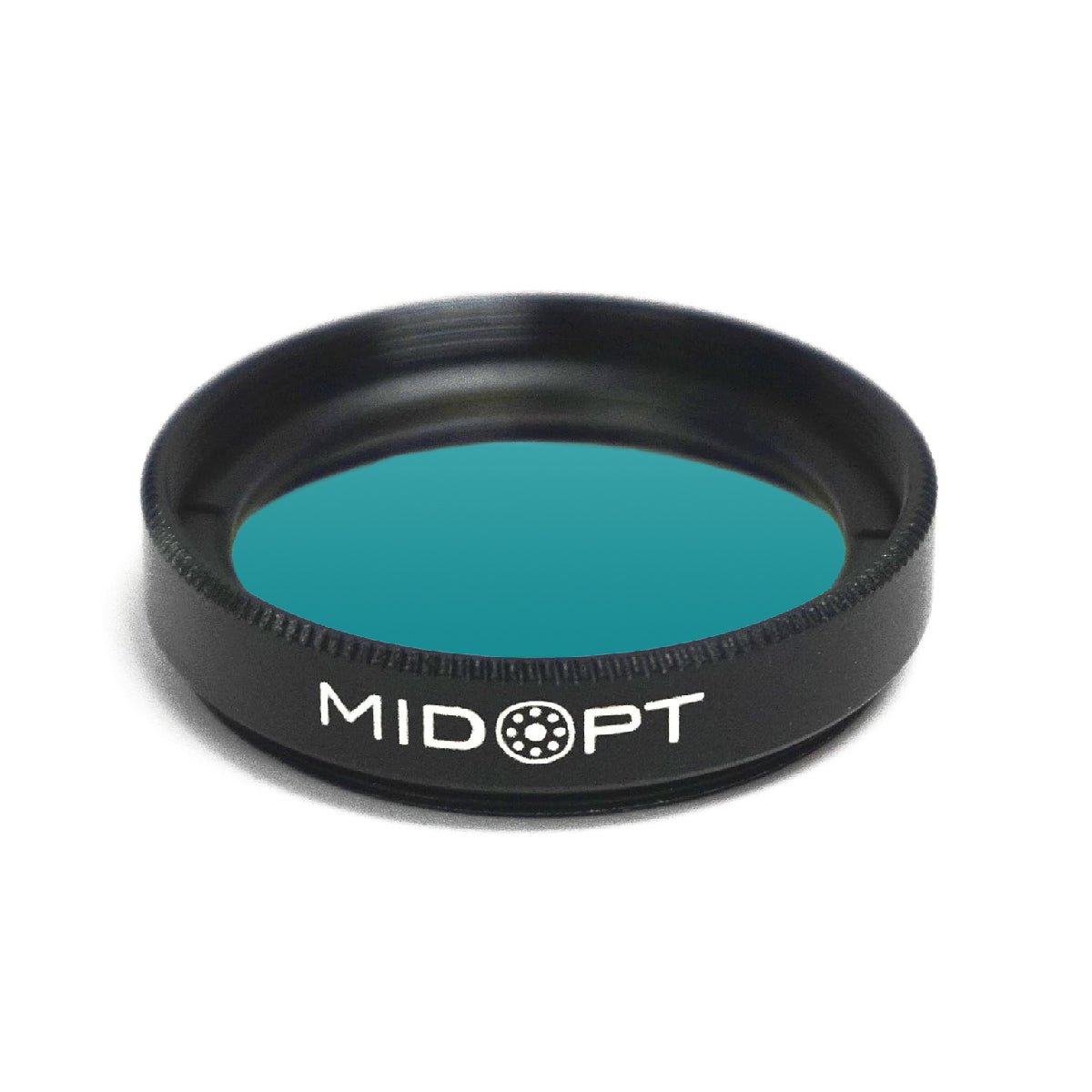

MidOpt - BP505 Cyan Bandpass Filter

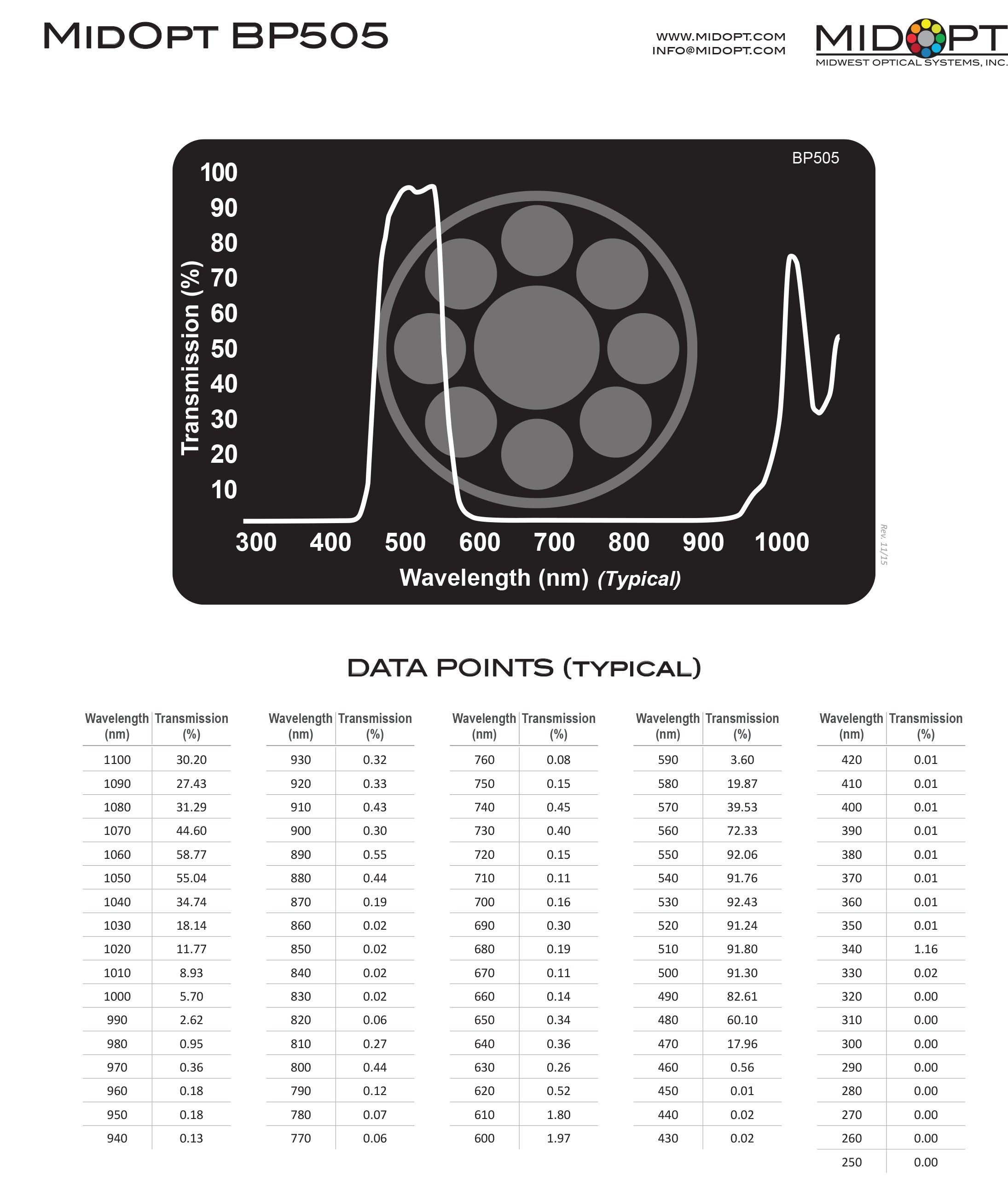

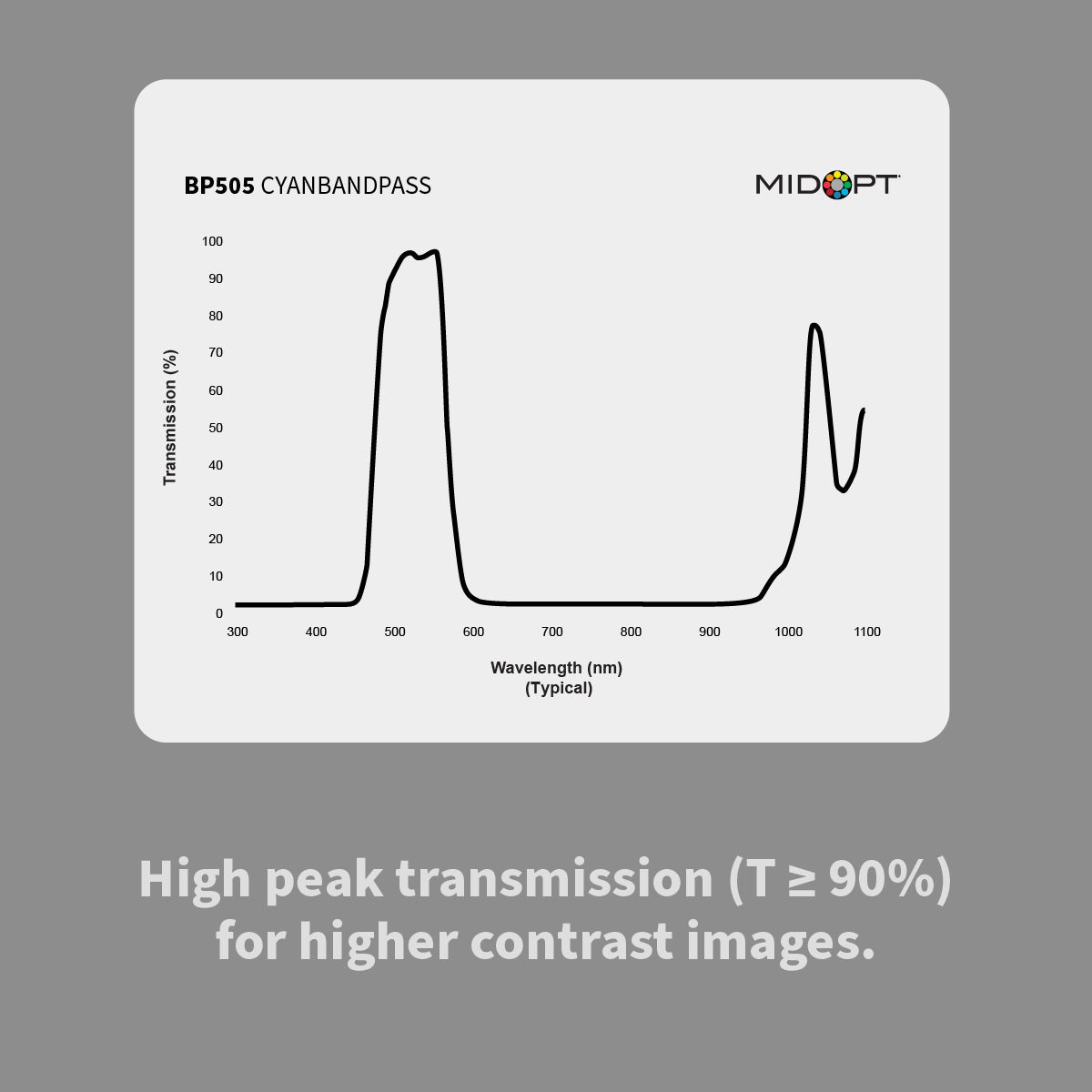

The MidOpt BP505 Cyan Blue Bandpass Filter is a single substrate, hard-coated filter designed to match the output of most cyan LEDs. When the BP505 is combined with the spectral sensitivity of most CCD/CMOS sensors used today that also peak in this range, the results are images that are especially bright and very high in contrast, which is useful for line scan / wide angle applications. MidOpt Bandpass Filters have a broad, Gaussian passband to mimic and accommodate the entire output of the most common LED wavelengths, are double-side polished for exceptional parallelism and optical flatness, are anti-reflection (AR) coated to limit glare and minimize reflection loss and have StablEDGE technology to reduce angular dependency and minimize the effects of short-shifting.
