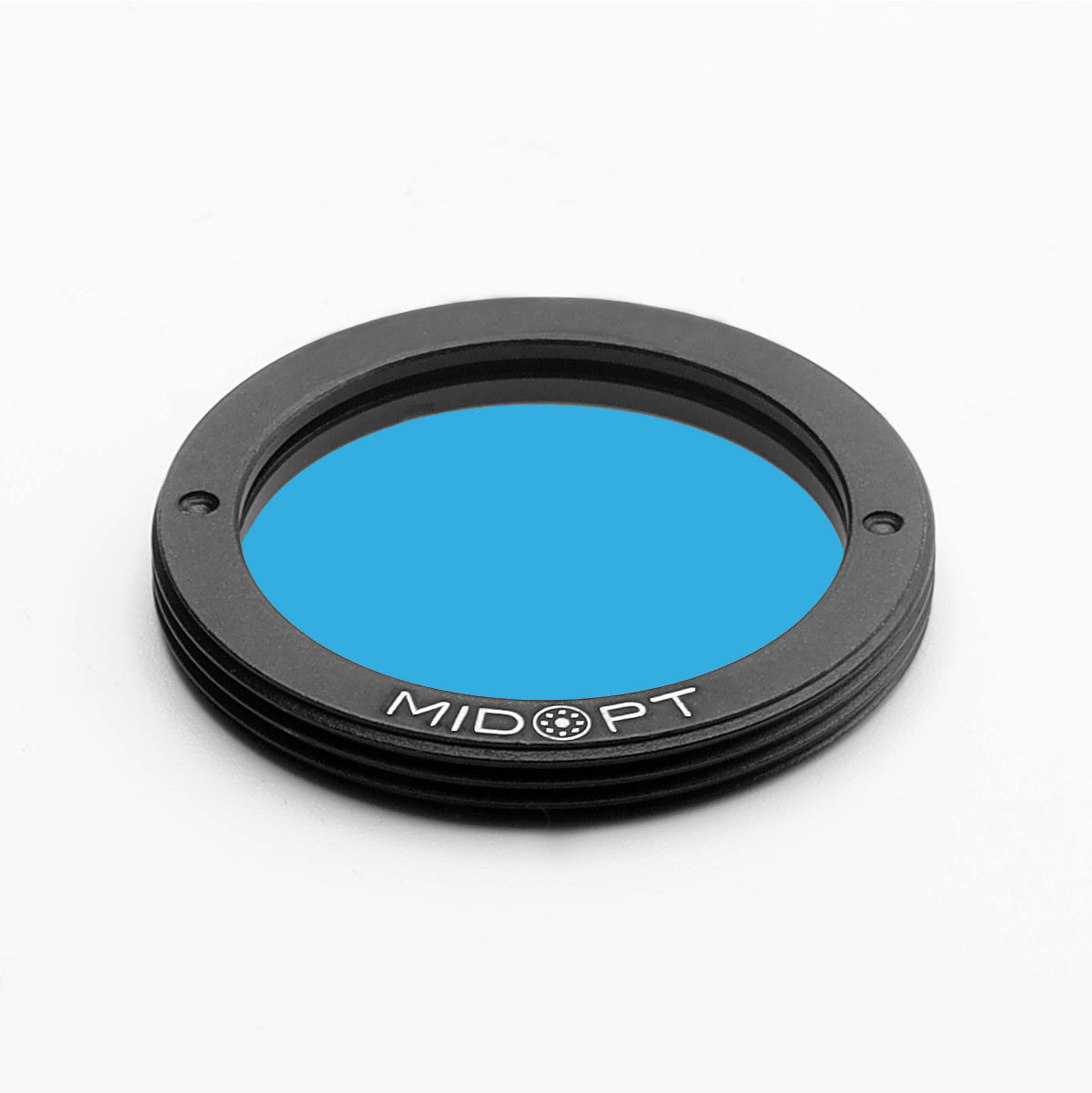

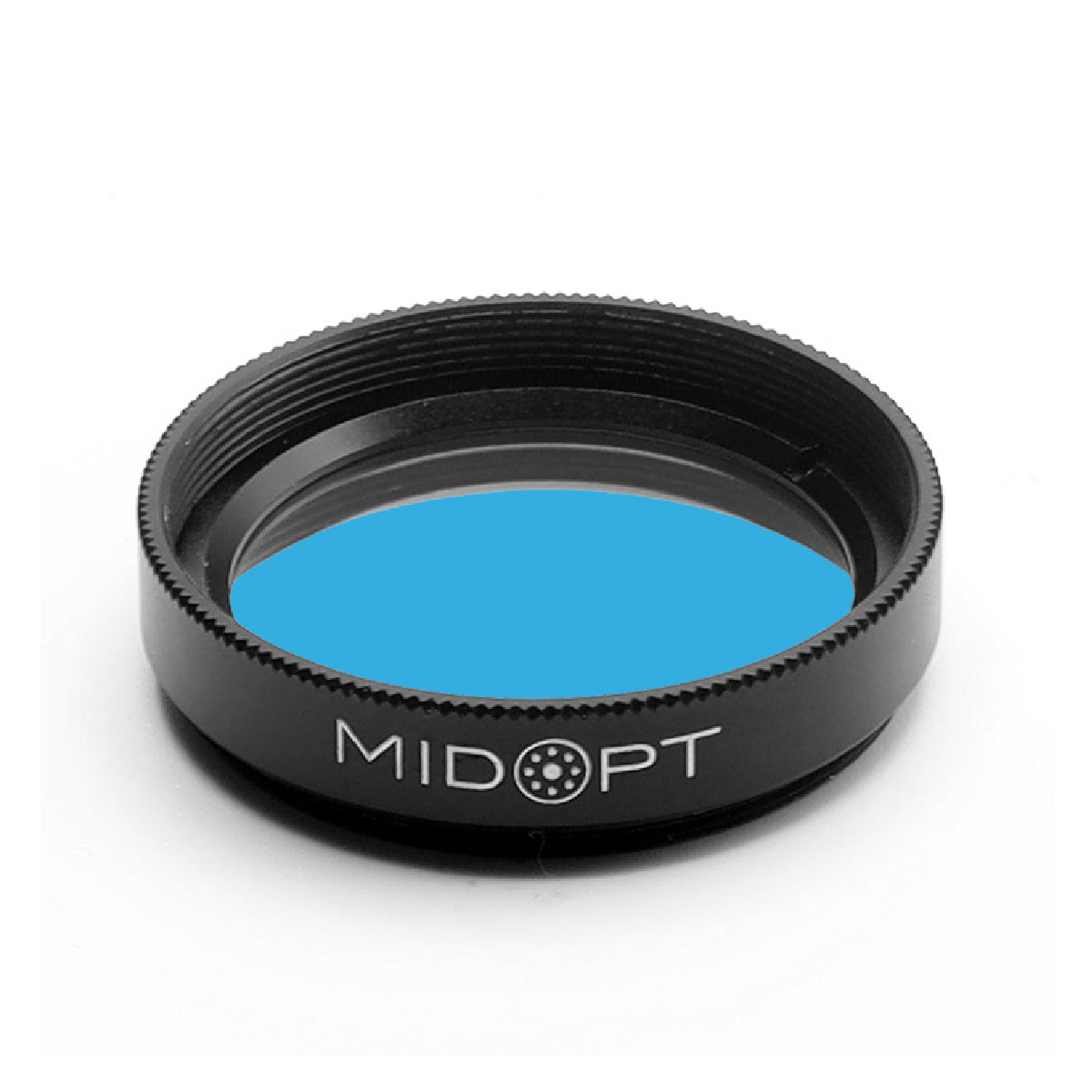

MidOpt - DB475/850 Dual Bandpass Blue + 850nm Near-Infrared (IR) Filter

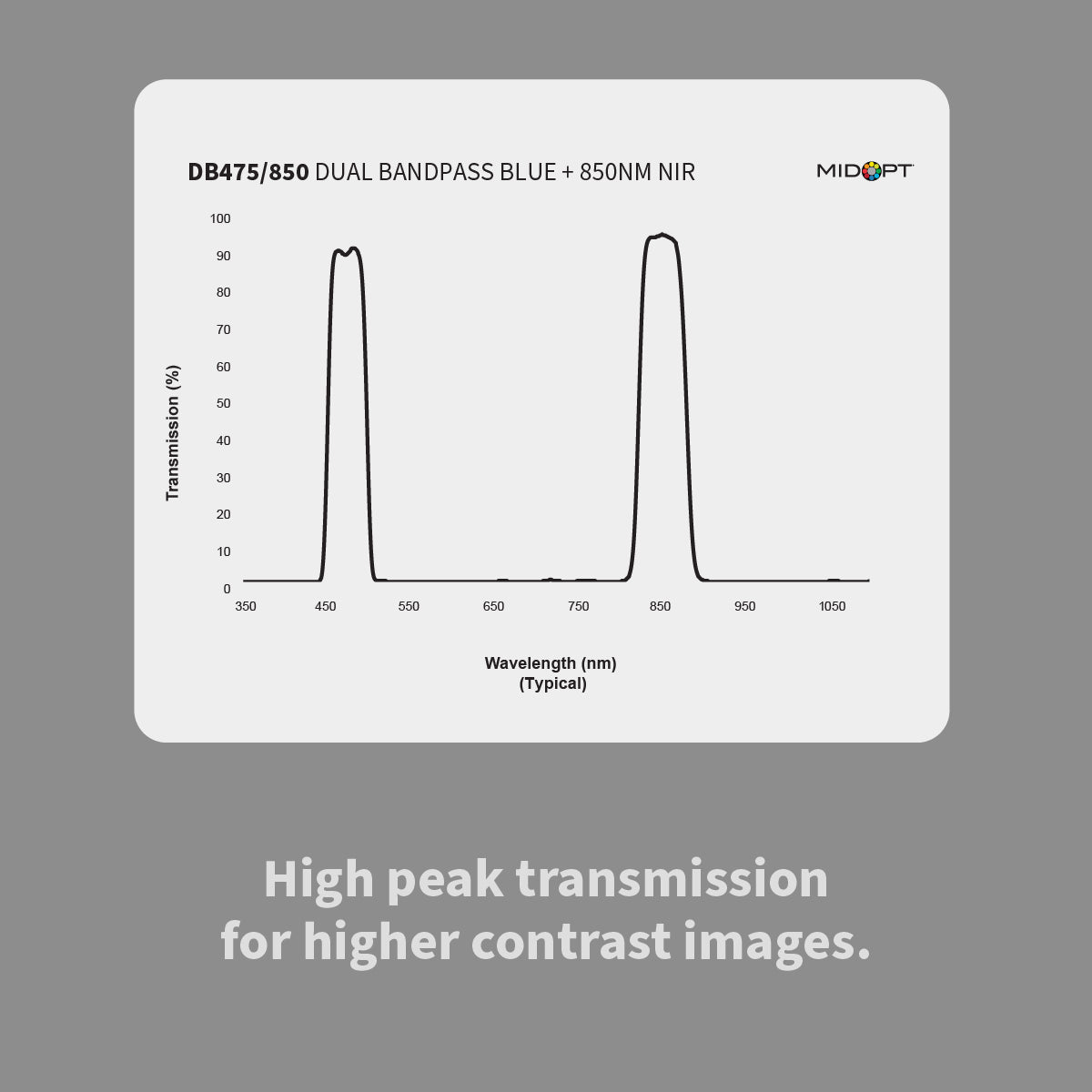

The MidOpt DB475/850 Dual Bandpass Blue + 850nm Near-Infrared (IR) Filter is designed for Normalized Difference Vegetation Index (NDVI) imaging applications. When using a single camera, this filter allows reflected near-IR (NIR) light (850nm) to be captured in the camera sensor’s red channel and reflected blue light (475nm) to be captured in the sensor’s blue channel (the green channel is not used). Even when using an inexpensive consumer camera (that has first had its IR blocking filter removed), this separation makes it possible to post-process the red and blue channels for NDVI by performing the calculation: NDVI = (red – blue) / (red + blue). Healthy vegetation will absorb (not reflect) blue light and strongly reflect NIR. This information can then be used to apply a false color gradient to images to better highlight the contrast between regions of healthy vegetation versus areas with stressed, diseased or no vegetation. MidOpt Multi-Bandpass Filters have a broad, Gaussian passband to mimic and accommodate the entire output of the most common LED wavelengths, are double-side polished for exceptional parallelism and optical flatness and are anti-reflection (AR) coated to limit glare and minimize reflection loss..
