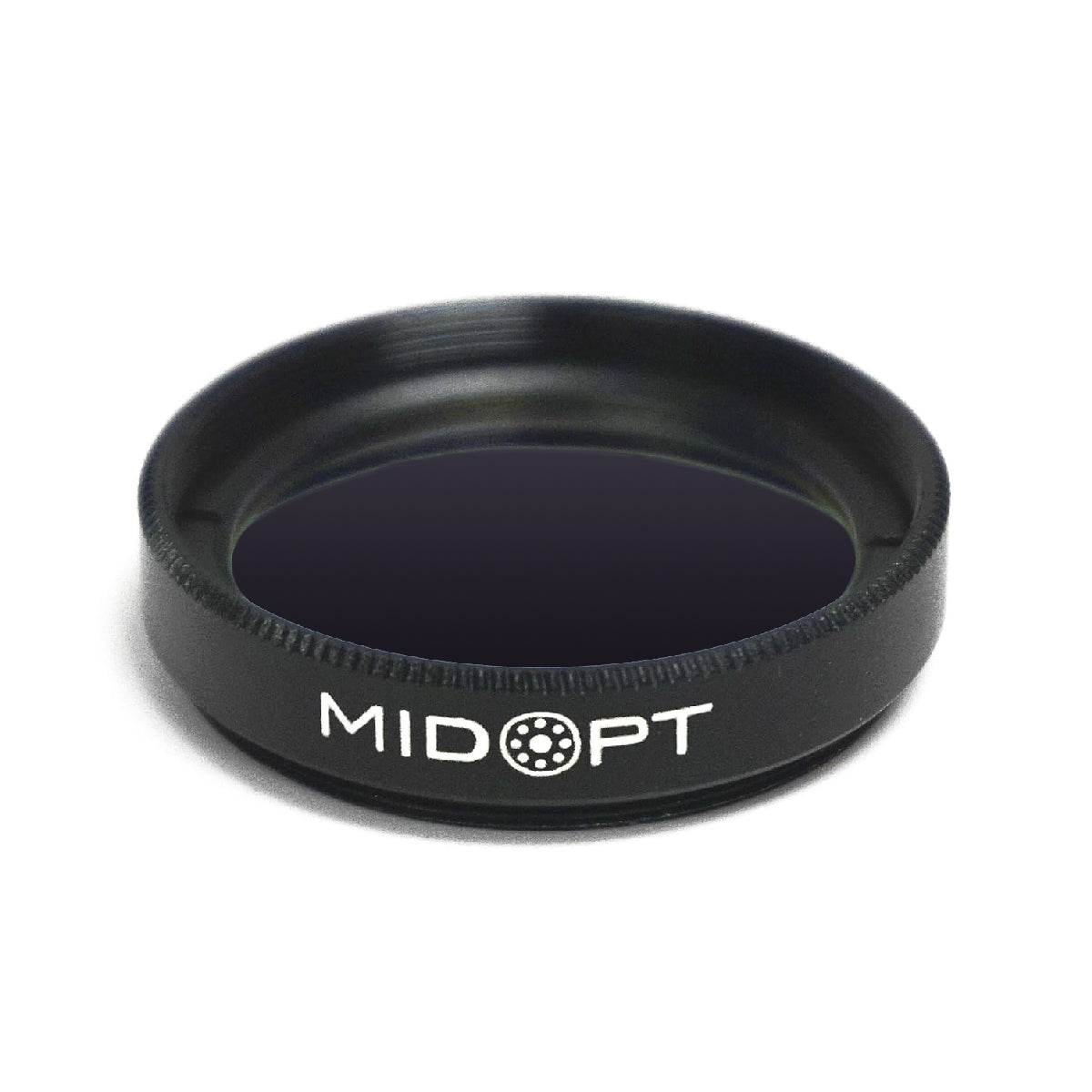

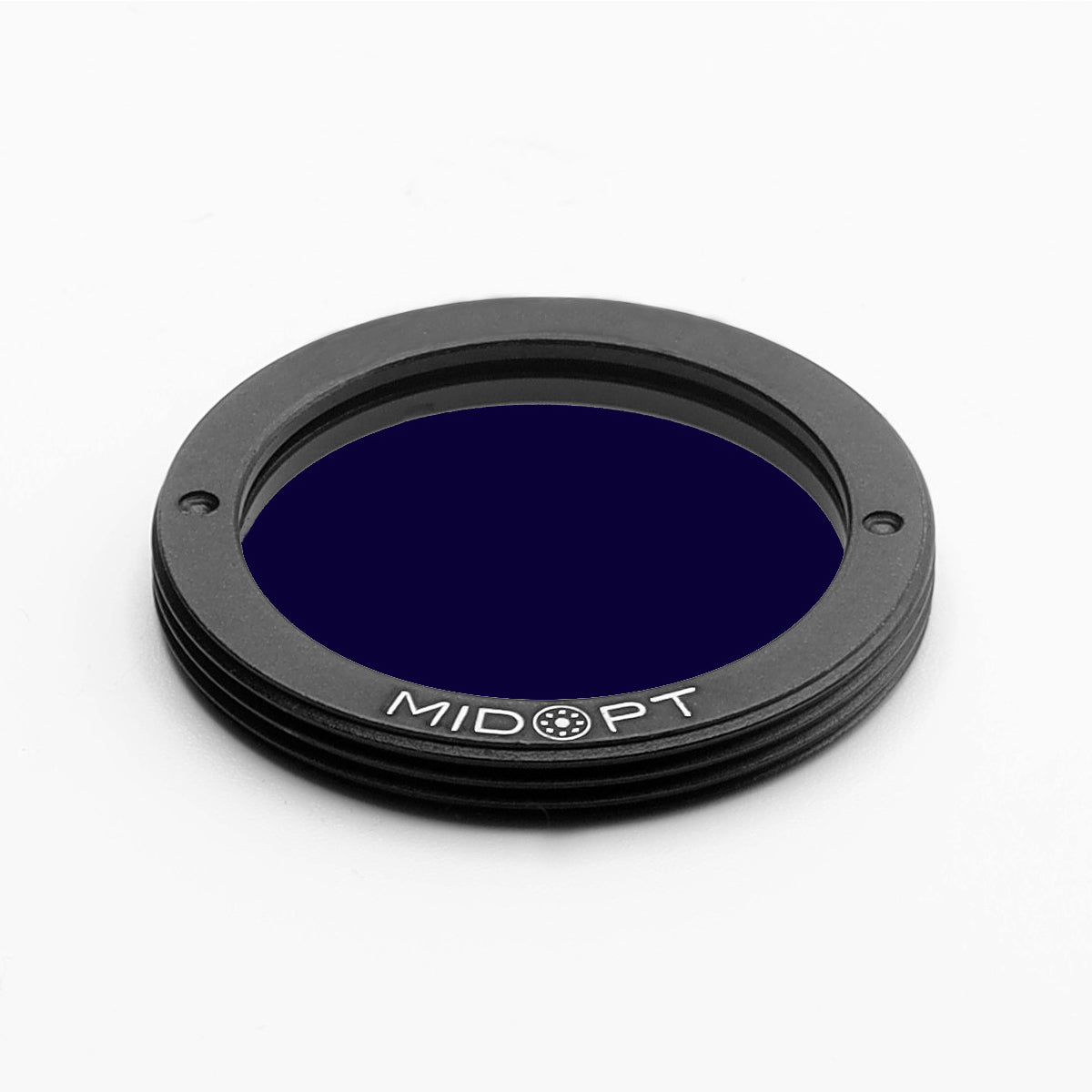

MidOpt - BP250 Deep-to-Near Ultraviolet (UV) Bandpass Filter

$1,200.00
$1,200.00

SKU: BP250-D25.4x1.2

The MidOpt BP250 Deep-to-Near Ultraviolet (UV) Bandpass Filter is designed for deep-UV imaging applications, offering a broad transmission range from... Learn more
Size
Request Info
Icon
Quick Shipping
Most items ship within 2-3 business days. Orders with expedited shipping must be received by 2 pm CST.
Order Now
Icon
Quality Guaranteed
Every item is 100% inspected to ensure exceptional quality, high performance and unrivaled reliability.
Shop Now
Icon
Contact Us
Reach out to us anytime via chat, email or phone for more info or assistance placing an order.
Get Support
Details
Specs
Technical Data
Video
Details
Details

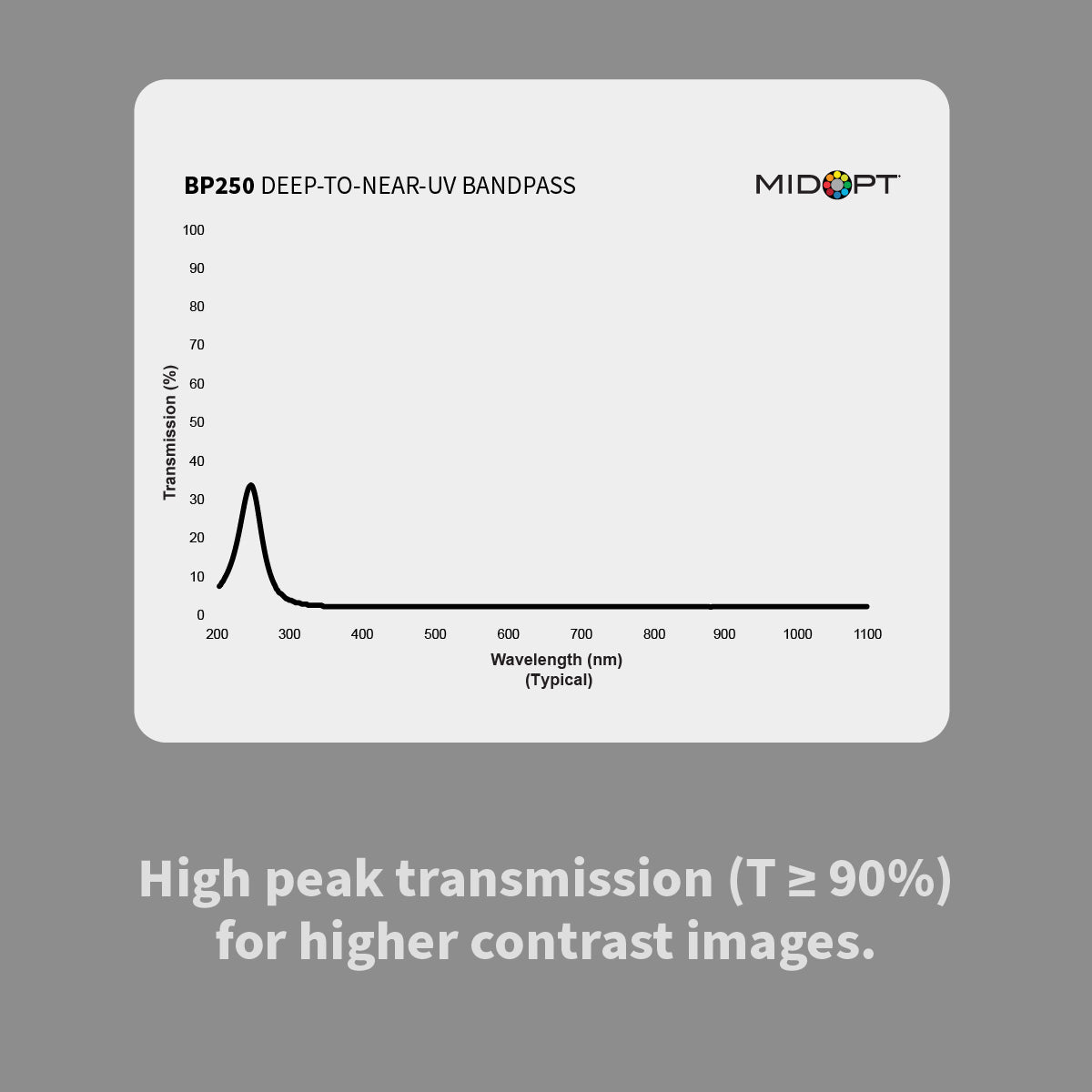

The MidOpt BP250 Deep-to-Near Ultraviolet (UV) Bandpass Filter is designed for deep-UV imaging applications, offering a broad transmission range from 240-260nm. It offers excellent visible (VIS) and near-infrared (IR) blocking (≤0.1% absorption at ≥400nm and ≤0.06% at ≥415nm) and is ideal for isolating features that are only visible under UV illumination. With a FWHM of 45nm and peak transmission of ≥30%, the BP250 is well-suited for applications requiring high UV sensitivity and minimal interference from longer wavelengths. This filter is not intended for use with standard CCD/CMOS cameras that do not image deep into the UV spectrum and is available in a limited range of sizes. It features a surface quality of 80/50 and a thickness of ≤3mm.

Specs
Specs

Useful Range: 240-260nm
FWHM: 45nm
Tolerance: ±15nm
Peak Transmission: ≥30%
Surface Quality: 80/50

Technical Data
Technical Data

Click the image for detailed specifications and technical data.
