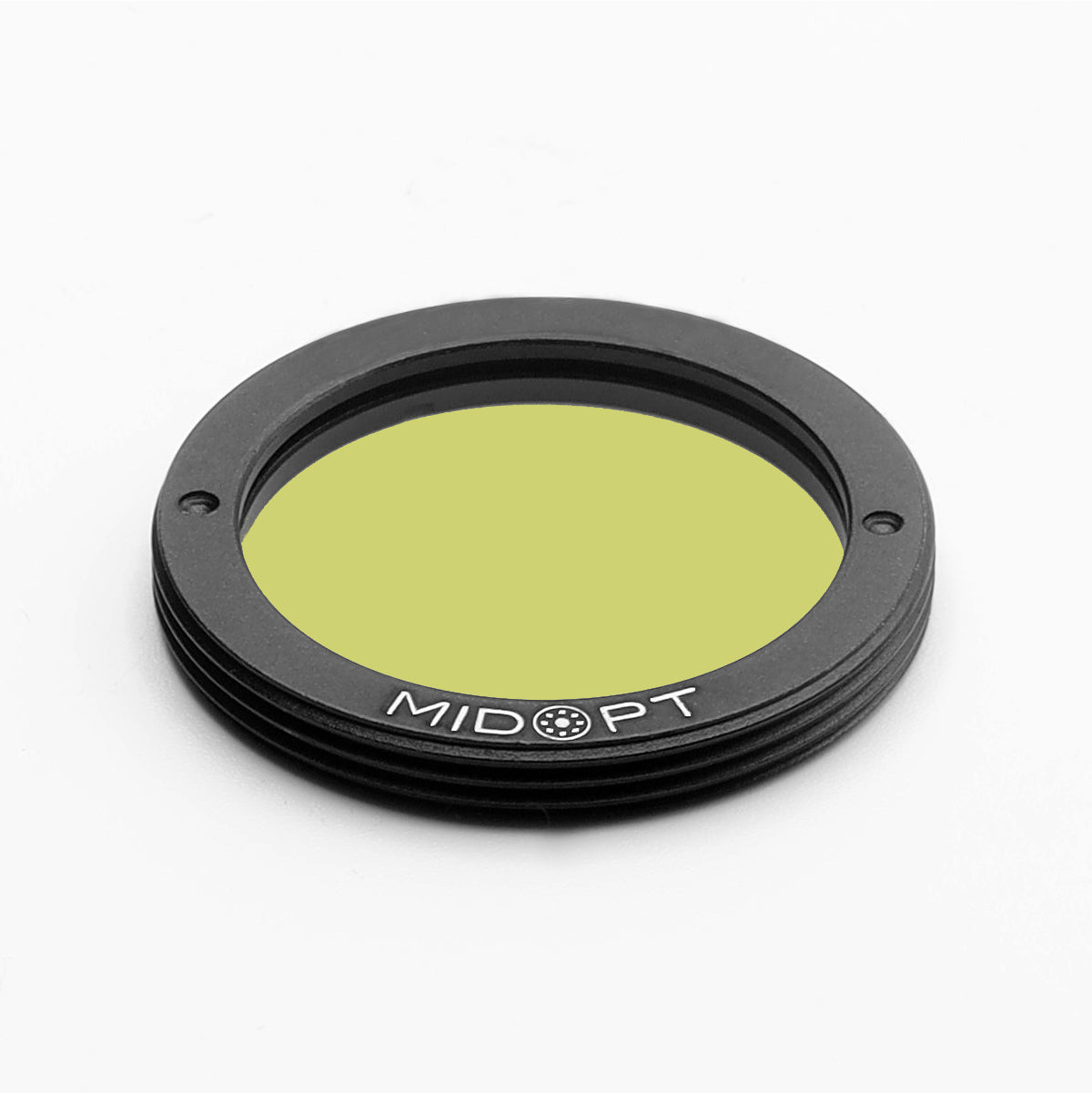

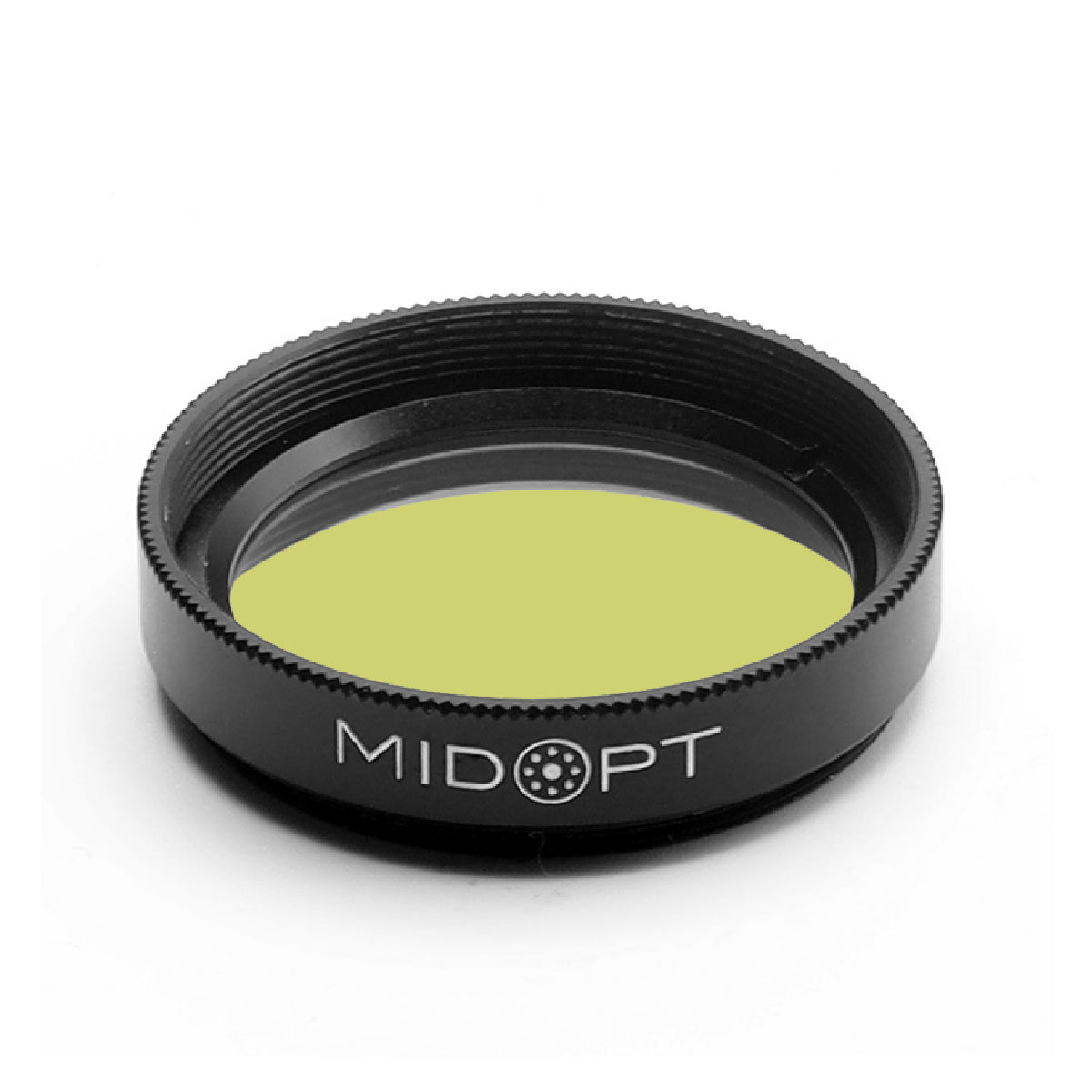

MidOpt - SP705 Near-Infrared (IR) / Deep Red Absorptive Block Shortpass Filter

$109.00
$109.00

SKU: SP705-25.5

The MidOpt SP705 Near-Infrared (IR) / Deep Red Absorptive Block Shortpass Filter is an absorptive IR rejection filter recommended for... Learn more
Size
Request Info
Icon
Quick Shipping
Most items ship within 2-3 business days. Orders with expedited shipping must be received by 2 pm CST.
Order Now
Icon
Quality Guaranteed
Every item is 100% inspected to ensure exceptional quality, high performance and unrivaled reliability.
Shop Now
Icon
Contact Us
Reach out to us anytime via chat, email or phone for more info or assistance placing an order.
Get Support
Details
Specs
Technical Data
Video
Details
Details

The MidOpt SP705 Near-Infrared (IR) / Deep Red Absorptive Block Shortpass Filter is an absorptive IR rejection filter recommended for blocking stray or scattered light from higher power near-IR (NIR) light sources, particularly lasers, and protecting a camera’s sensor. MidOpt Shortpass Filters have a broad, Gaussian passband to mimic and accommodate the entire output of the most common LED wavelengths, are anti-reflection (AR) coated to limit glare and minimize reflection loss and have StablEDGE technology to reduce angular dependency and minimize the effects of short-shifting.

Specs
Specs

Useful Range:370-630nm
Cut-Off Wavelength 50% T:705nm
Tolerance:±10nm
Peak Transmission:≥88%
Surface Quality:40/20

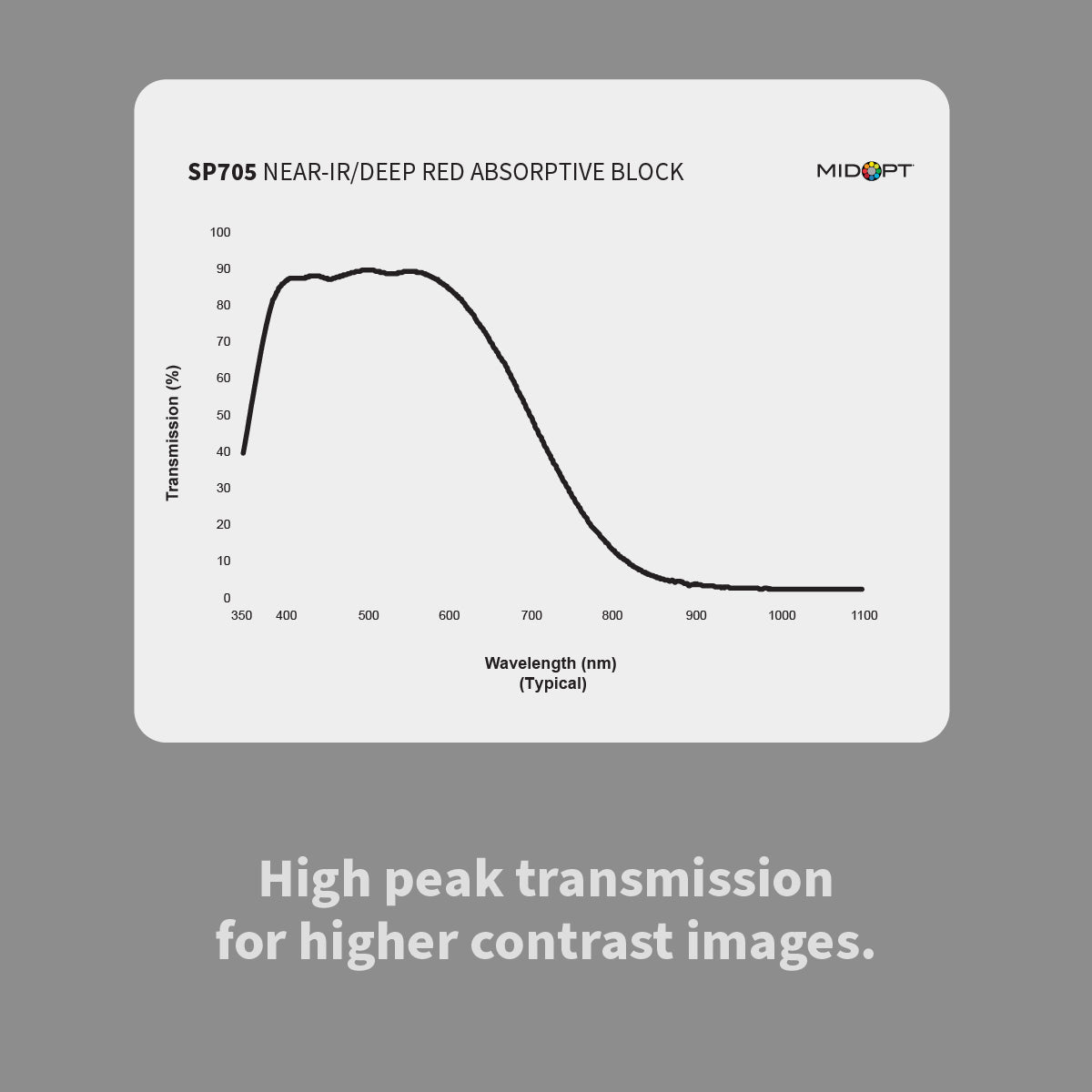

Technical Data
Technical Data

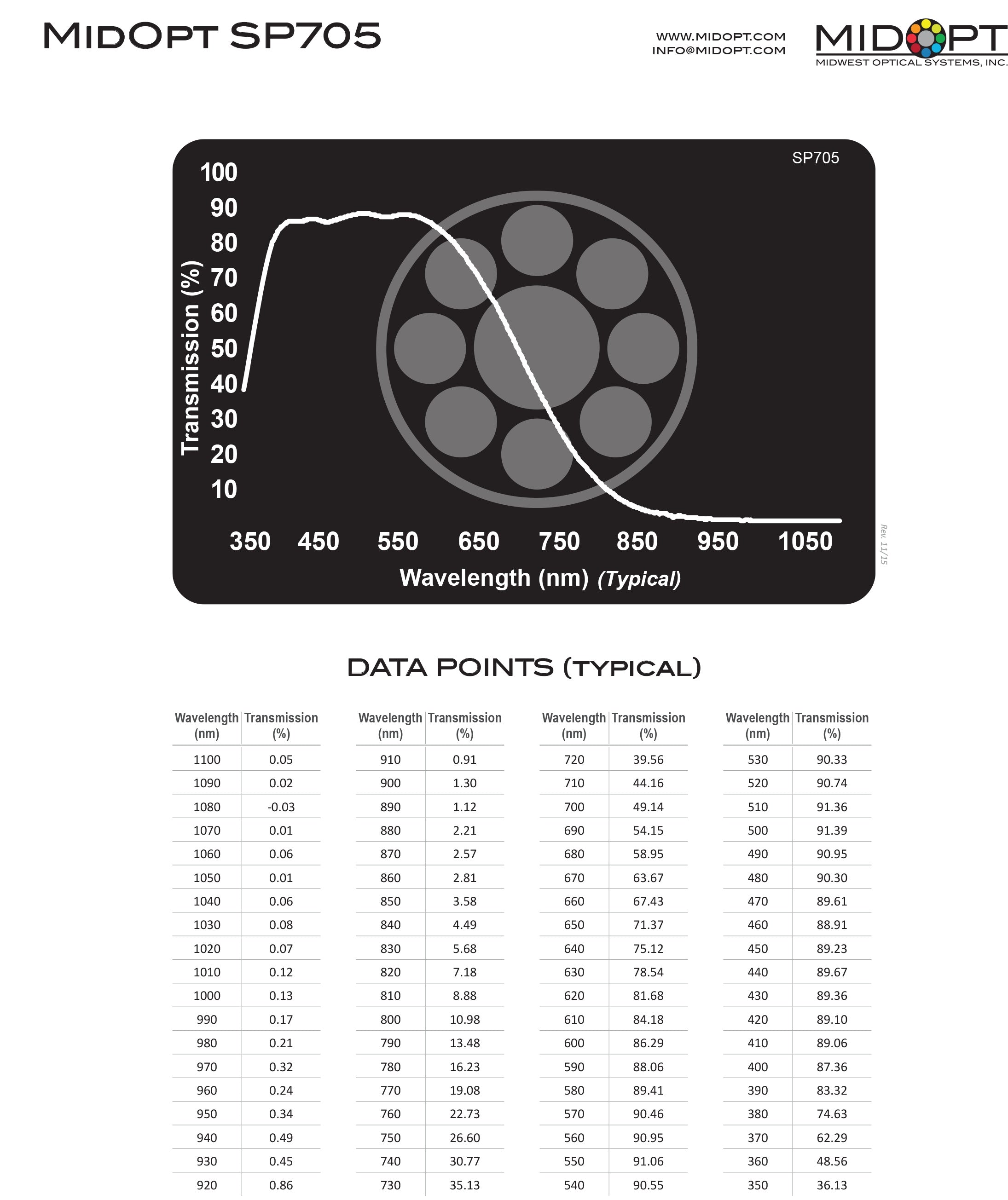

Click the image for detailed specifications and technical data.
