MidOpt - SP700 Near-Infrared (IR) / Ultraviolet (UV) Block - Visible (VIS) Shortpass Filter

$109.00
$109.00

SKU: SP700-25.5

The MidOpt SP700 Near-Infrared (IR) / Ultraviolet (UV) Block - Visible (VIS) Shortpass Filter, also referred to as a "hot... Learn more
Size
Request Info
Icon
Quick Shipping
Most items ship within 2-3 business days. Orders with expedited shipping must be received by 2 pm CST.
Order Now
Icon
Quality Guaranteed
Every item is 100% inspected to ensure exceptional quality, high performance and unrivaled reliability.
Shop Now
Icon
Contact Us
Reach out to us anytime via chat, email or phone for more info or assistance placing an order.
Get Support
Details
Specs
Technical Data
Video
Details
Details

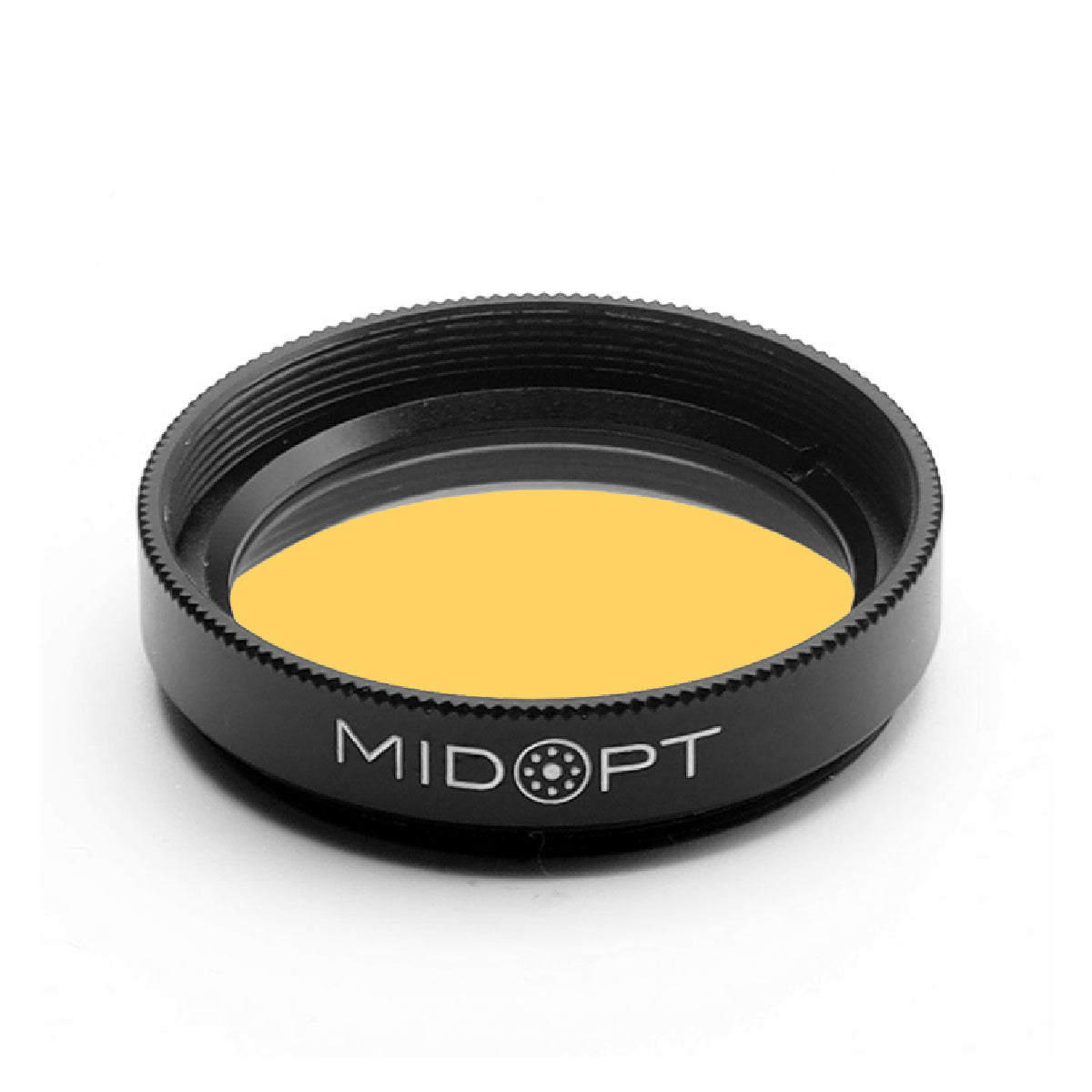

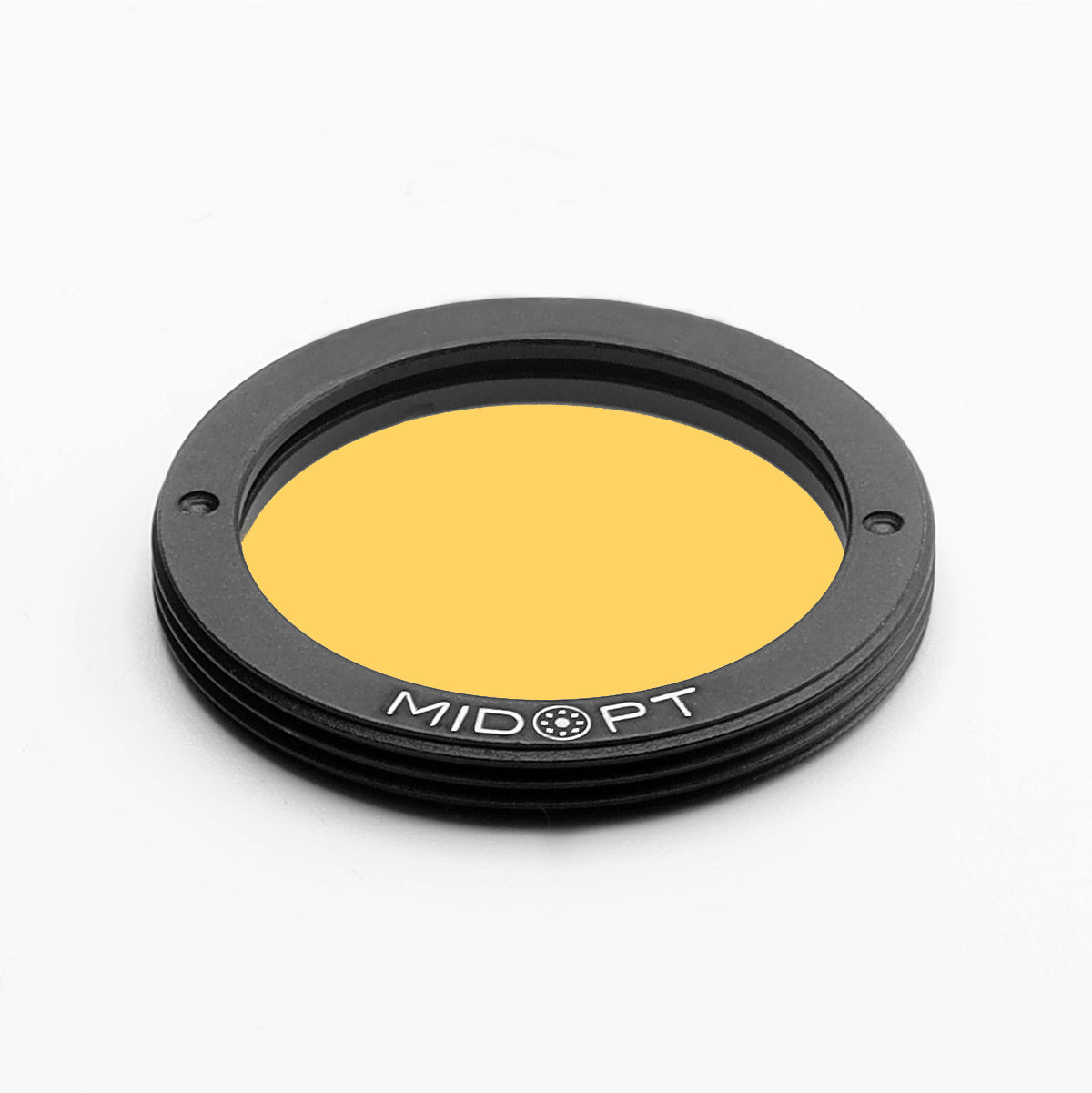

The MidOpt SP700 Near-Infrared (IR) / Ultraviolet (UV) Block - Visible (VIS) Shortpass Filter, also referred to as a "hot mirror," is recommended for broad VIS wavelength transmission and complete IR blocking over the sensitivity range of a monochrome camera, with minimal effect on the red portion of the spectrum. MidOpt Shortpass Filters have a broad, Gaussian passband to mimic and accommodate the entire output of the most common LED wavelengths and are anti-reflection (AR) coated to limit glare and minimize reflection loss.

Specs
Specs

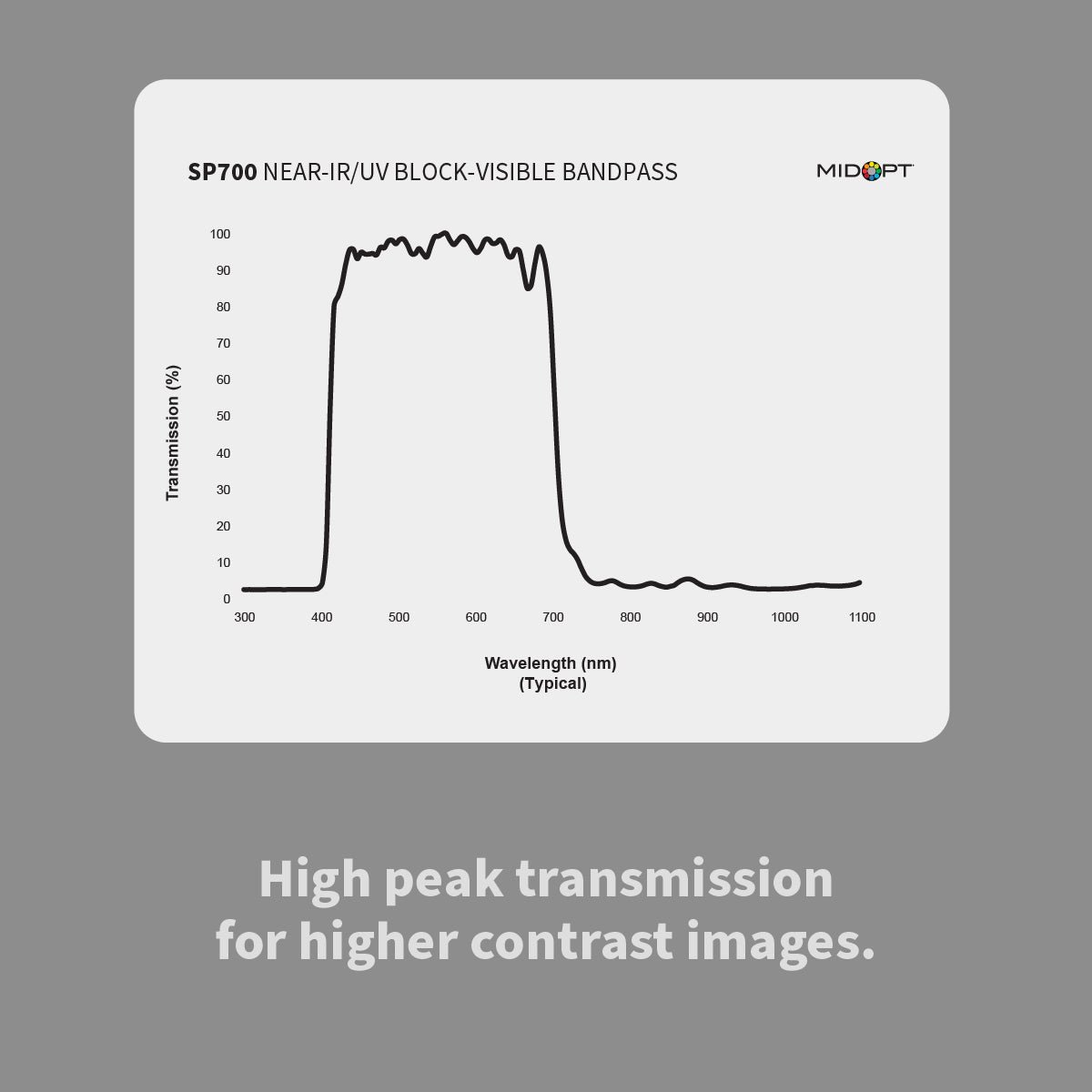

Useful Range:405-690nm
Cut-Off Wavelength 50% T:400 / 700nm (cut-off / cut-on)
Tolerance:±10nm
Peak Transmission:≥90%
Surface Quality:40/20

Technical Data
Technical Data

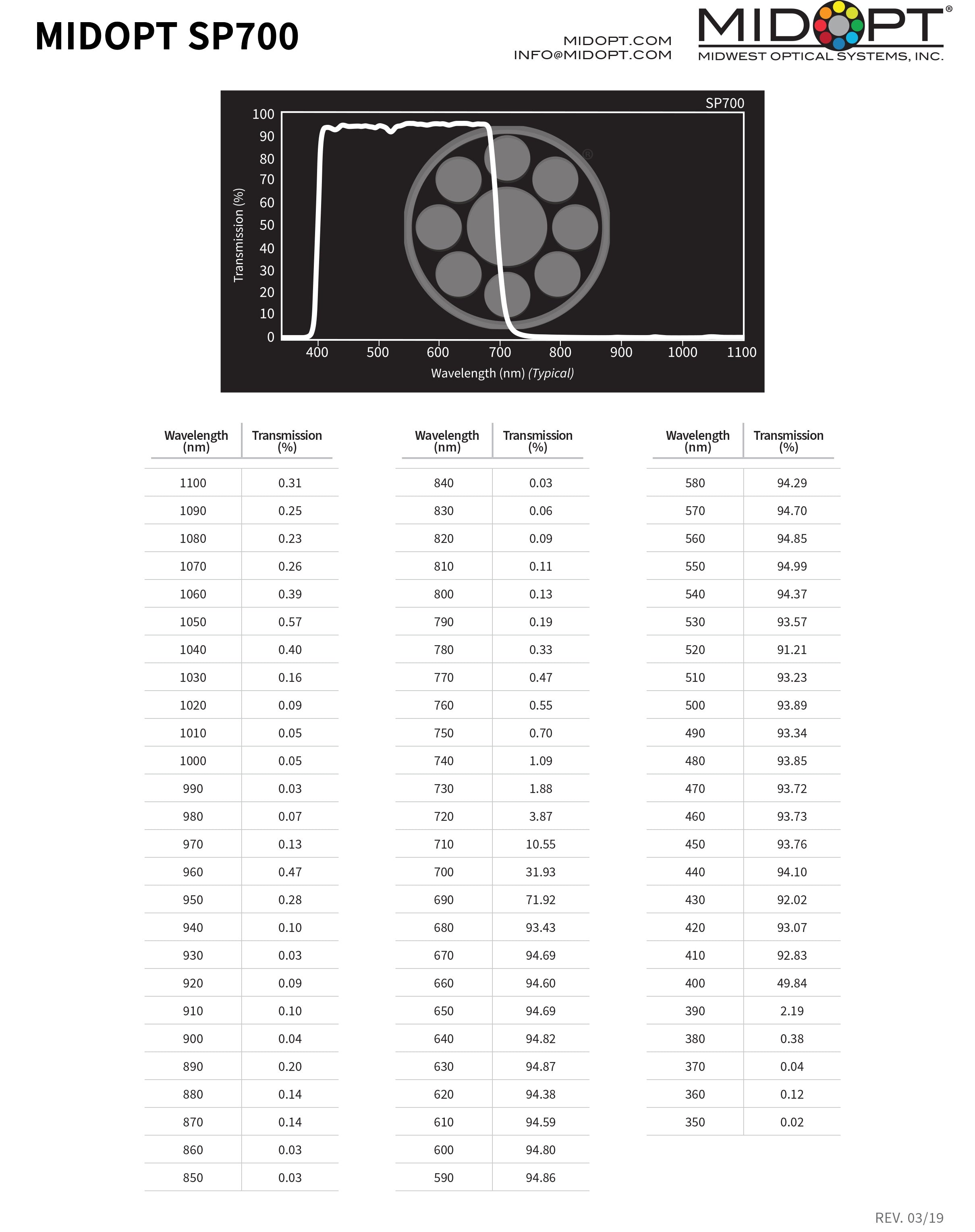

Click the image for detailed specifications and technical data.
