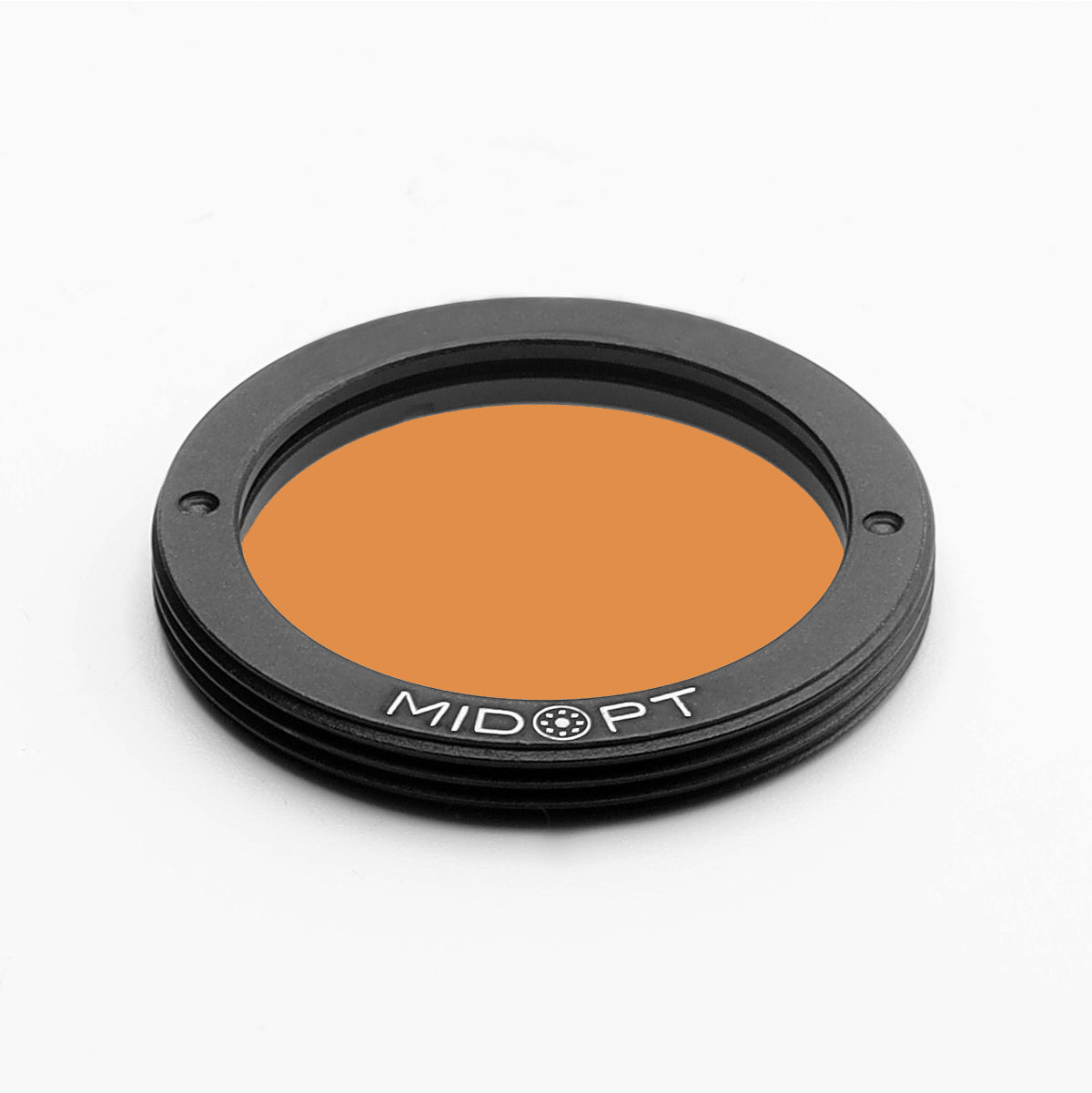

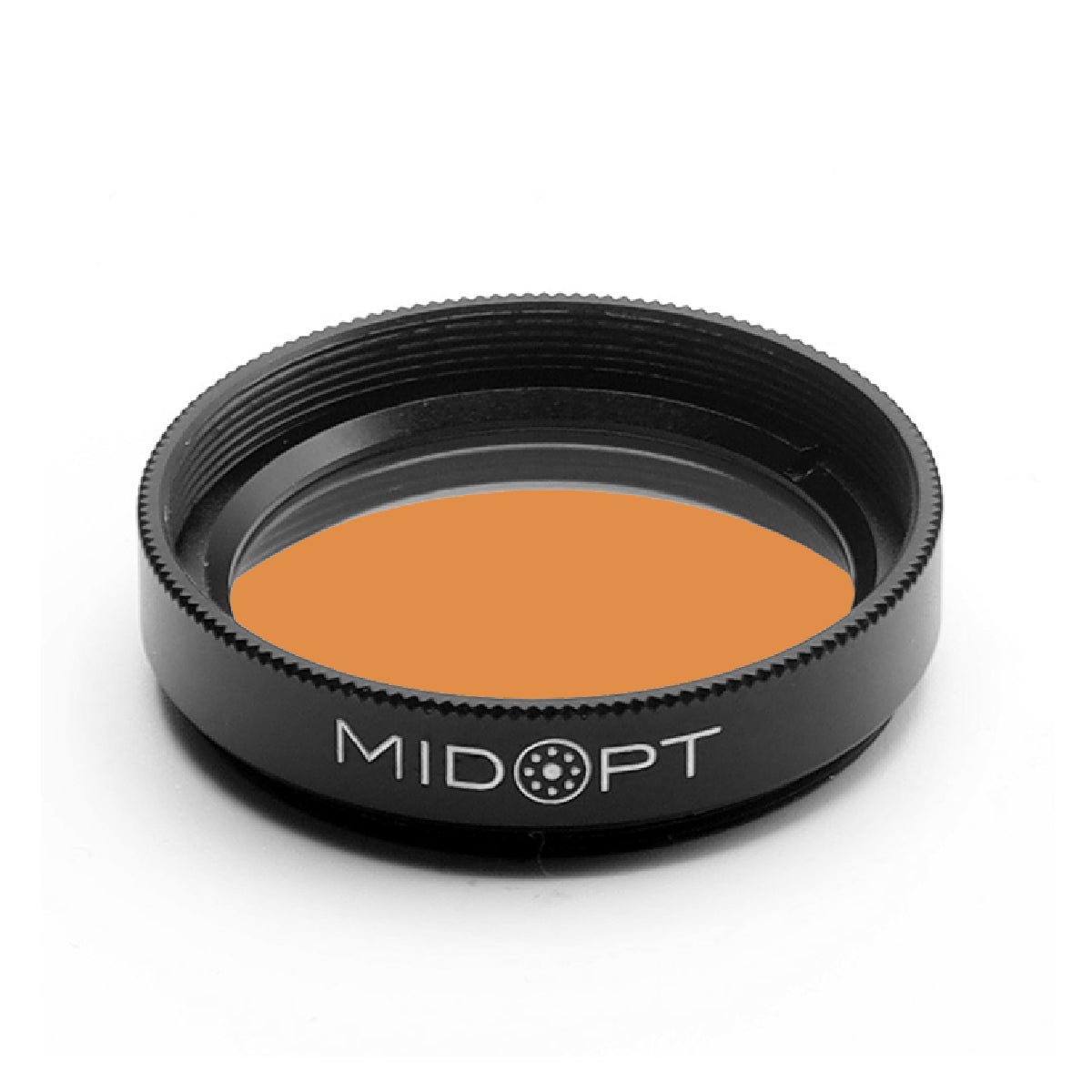

MidOpt - SP785 Modified Near-Infrared (IR) Dichroic Block Shortpass Filter

$109.00
$109.00

SKU: SP785-25.5

The MidOpt SP785 Modified Near-Infrared (IR) Dichroic Block Shortpass Filter passes visible (VIS) and shorter Near-IR (NIR) wavelengths and helps... Learn more
Size
Request Info
Icon
Quick Shipping
Most items ship within 2-3 business days. Orders with expedited shipping must be received by 2 pm CST.
Order Now
Icon
Quality Guaranteed
Every item is 100% inspected to ensure exceptional quality, high performance and unrivaled reliability.
Shop Now
Icon
Contact Us
Reach out to us anytime via chat, email or phone for more info or assistance placing an order.
Get Support
Details
Specs
Technical Data
Video
Details
Details

The MidOpt SP785 Modified Near-Infrared (IR) Dichroic Block Shortpass Filter passes visible (VIS) and shorter Near-IR (NIR) wavelengths and helps filter NIR light sources. In some cases, it can be a useful alternative to the DB735 filter. A broadband multilayer anti-reflection (AR) coating is present on the second surface. MidOpt Shortpass Filters have a broad, Gaussian passband to mimic and accommodate the entire output of the most common LED wavelengths.

Specs
Specs

Useful Range:425-770nm
Cut-Off Wavelength 50% T:785nm
Tolerance:±10nm
Peak Transmission:≥90%
Surface Quality:40/20

Technical Data
Technical Data

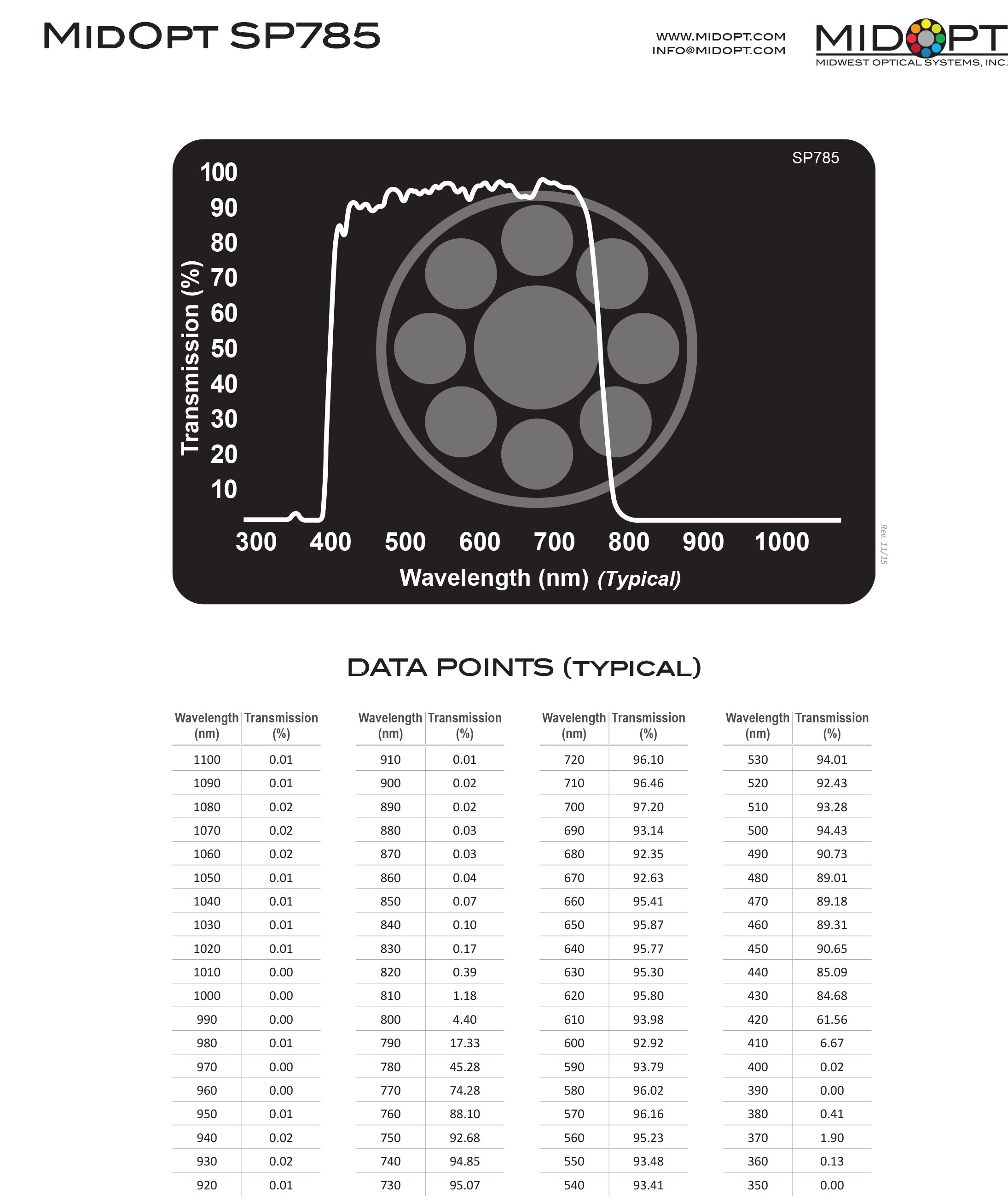

Click the image for detailed specifications and technical data.

Video
Video
MidOpt Shortpass Filters
