MidOpt - BP610 Green-Red Bandpass Filter

$121.00
$121.00

SKU: BP610-25.5

The MidOpt BP610 Green-Red Bandpass Filter is recommended for use with 520-690nm red LED and laser diode lighting. This filter... Learn more
Size
Request Info
Icon
Quick Shipping
Most items ship within 2-3 business days. Orders with expedited shipping must be received by 2 pm CST.
Order Now
Icon
Quality Guaranteed
Every item is 100% inspected to ensure exceptional quality, high performance and unrivaled reliability.
Shop Now
Icon
Contact Us
Reach out to us anytime via chat, email or phone for more info or assistance placing an order.
Get Support
Details
Specs
Technical Data
Video
Details
Details

The MidOpt BP610 Green-Red Bandpass Filter is recommended for use with 520-690nm red LED and laser diode lighting. This filter transmits green and red wavelengths while blocking UV (ultraviolet), blue and near-IR (infrared) light, making it ideal for applications requiring ambient light control and enhanced contrast. Orange in color, the BP610 also performs similarly to a hot mirror with added blue light-blocking capabilities and can be used in certain polarized light setups or to suppress stray light from UV and blue LEDs. MidOpt Bandpass Filters have a broad, Gaussian passband to mimic and accommodate the entire output of the most common LED wavelengths, are double-side polished for exceptional parallelism and optical flatness, are anti-reflection (AR) coated to limit glare and minimize reflection loss and have StablEDGE technology to reduce angular dependency and minimize the effects of short-shifting.

Specs
Specs

Useful Range: 520-690nm
FWHM: 190nm
Tolerance: ±15nm

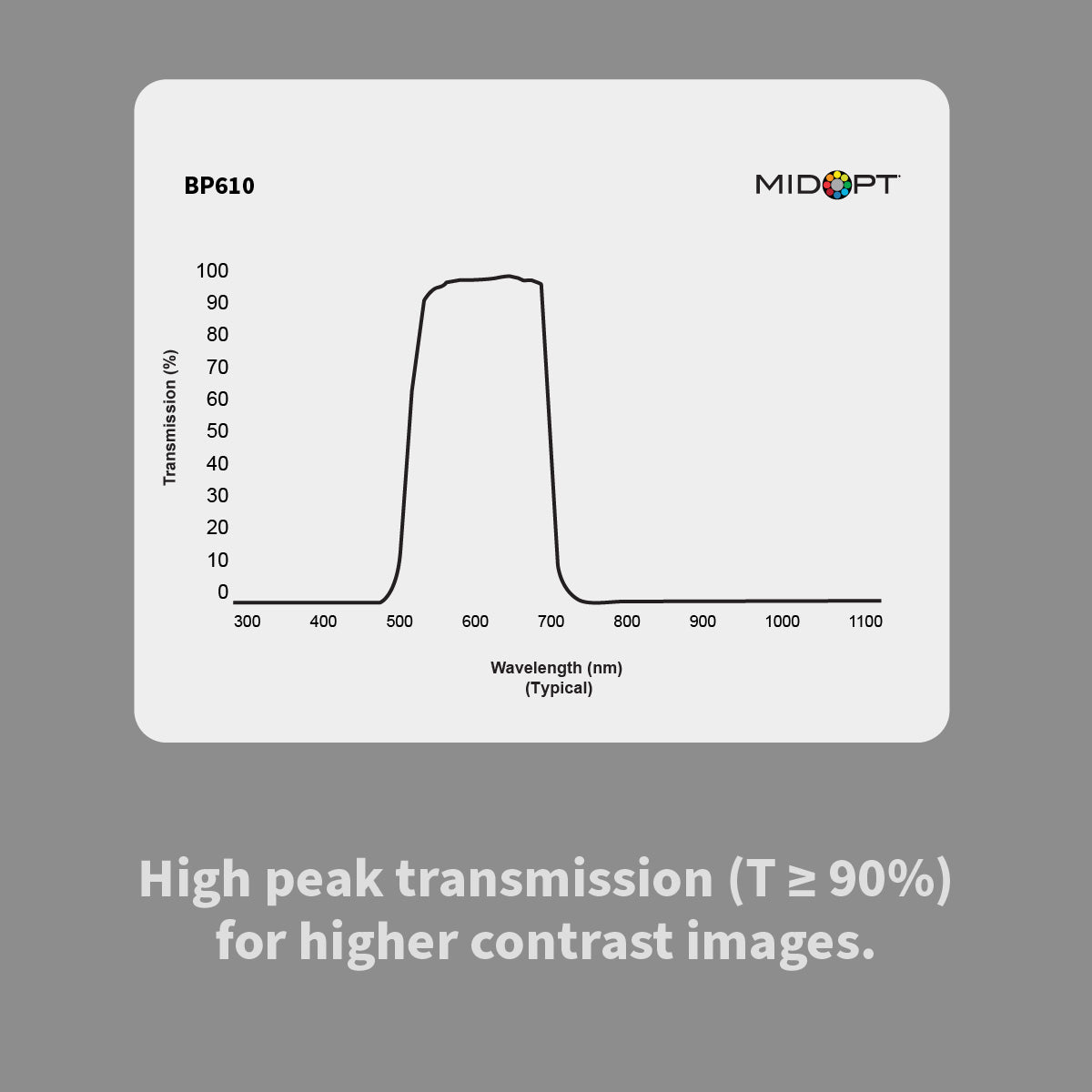

Peak Transmission: ≥90%
Surface Quality: 40/20

Technical Data
Technical Data

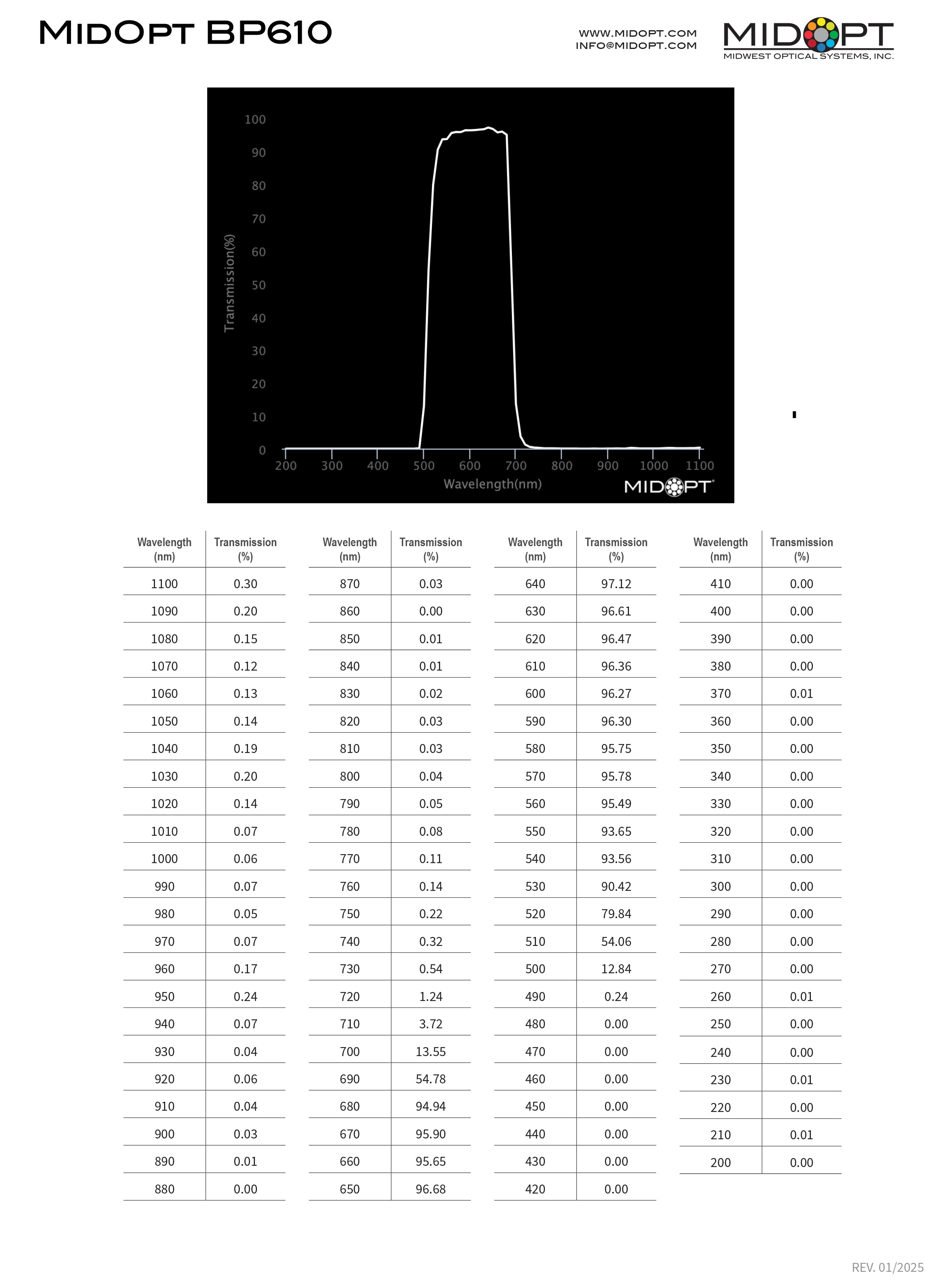

Click the image for detailed specifications and technical data.
