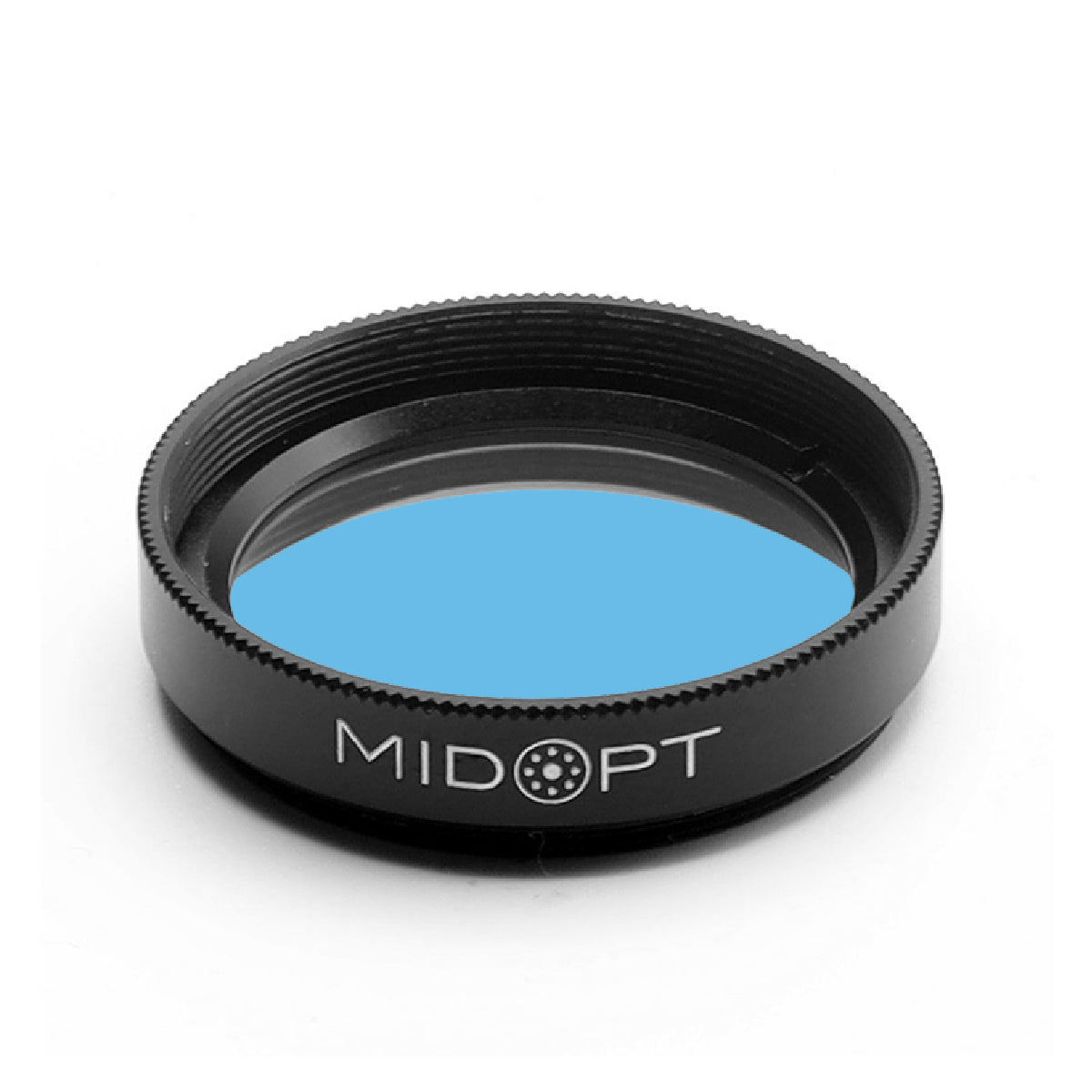

MidOpt - SP570 Blue-Green Shortpass Filter

$109.00
$109.00

SKU: SP510-25.5

The MidOpt SP570 Blue-Green Shortpass Filter is recommended for applications requiring the complete removal of orange, red and near-infrared (IR)... Learn more
Size
Request Info
Icon
Quick Shipping
Most items ship within 2-3 business days. Orders with expedited shipping must be received by 2 pm CST.
Order Now
Icon
Quality Guaranteed
Every item is 100% inspected to ensure exceptional quality, high performance and unrivaled reliability.
Shop Now
Icon
Contact Us
Reach out to us anytime via chat, email or phone for more info or assistance placing an order.
Get Support
Details
Specs
Technical Data
Video
Details
Details

The MidOpt SP570 Blue-Green Shortpass Filter is recommended for applications requiring the complete removal of orange, red and near-infrared (IR) portions of the spectrum. Some common applications include viewing hot rolled steel or, combined with a neutral density (ND) filter, viewing arc welding operations. MidOpt Shortpass Filters have a broad, Gaussian passband to mimic and accommodate the entire output of the most common LED wavelengths and are anti-reflection (AR) coated to limit glare and minimize reflection loss.

Specs
Specs

Useful Range:410-560nm
Cut-Off Wavelength 50% T:570nm
Tolerance:±10nm
Peak Transmission:≥90%
Surface Quality:40/20

Technical Data
Technical Data

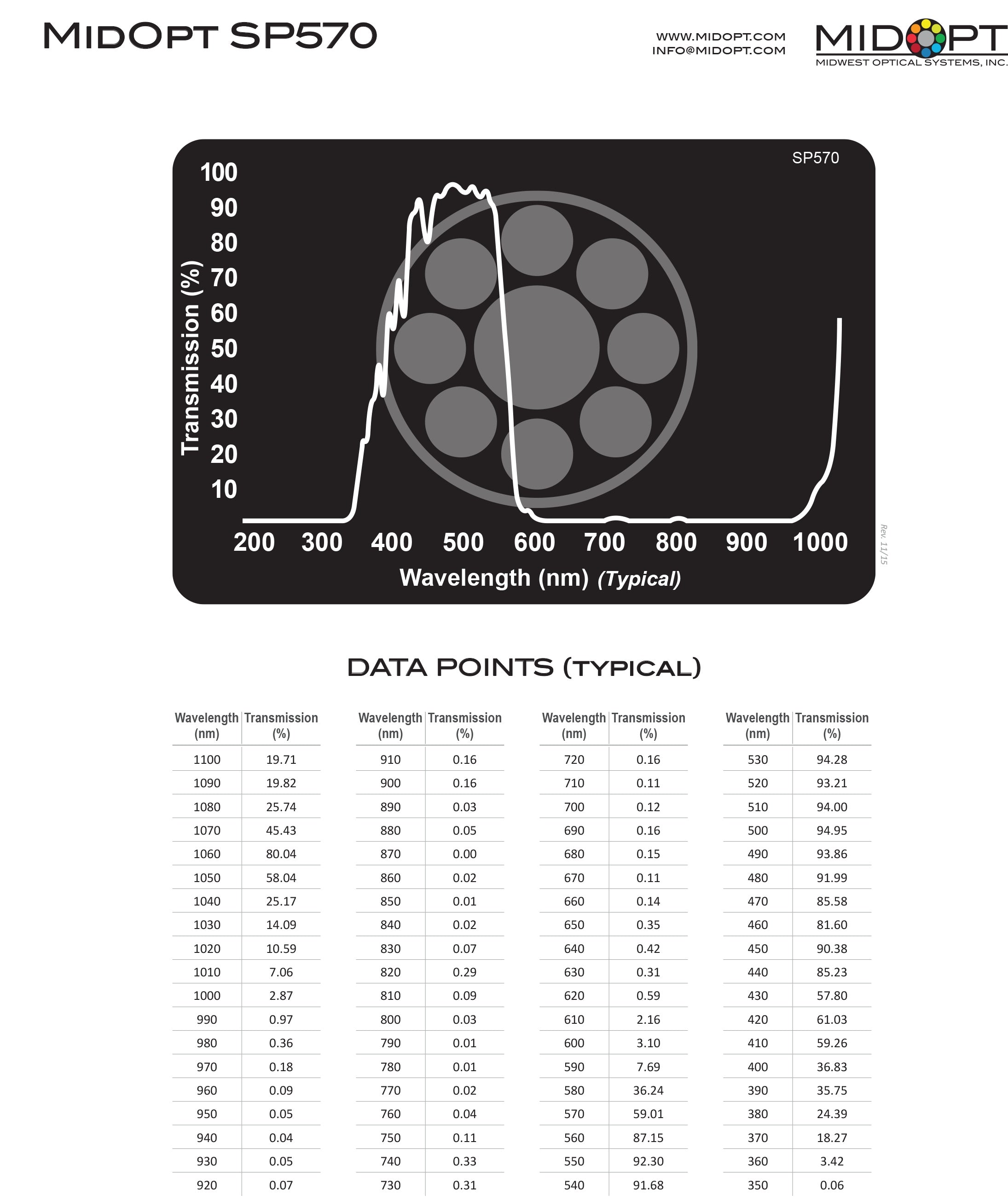

Click the image for detailed specifications and technical data.
