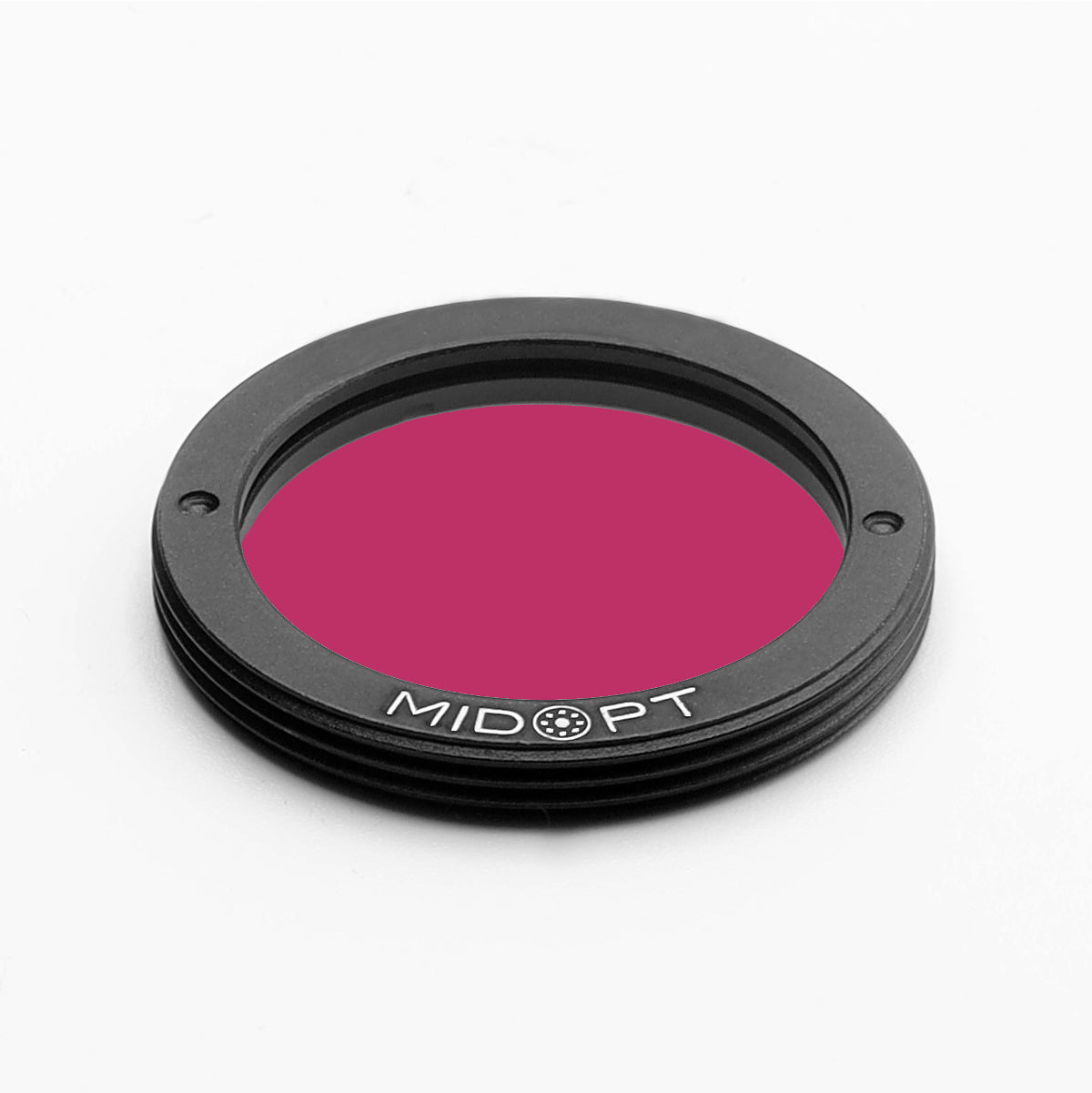

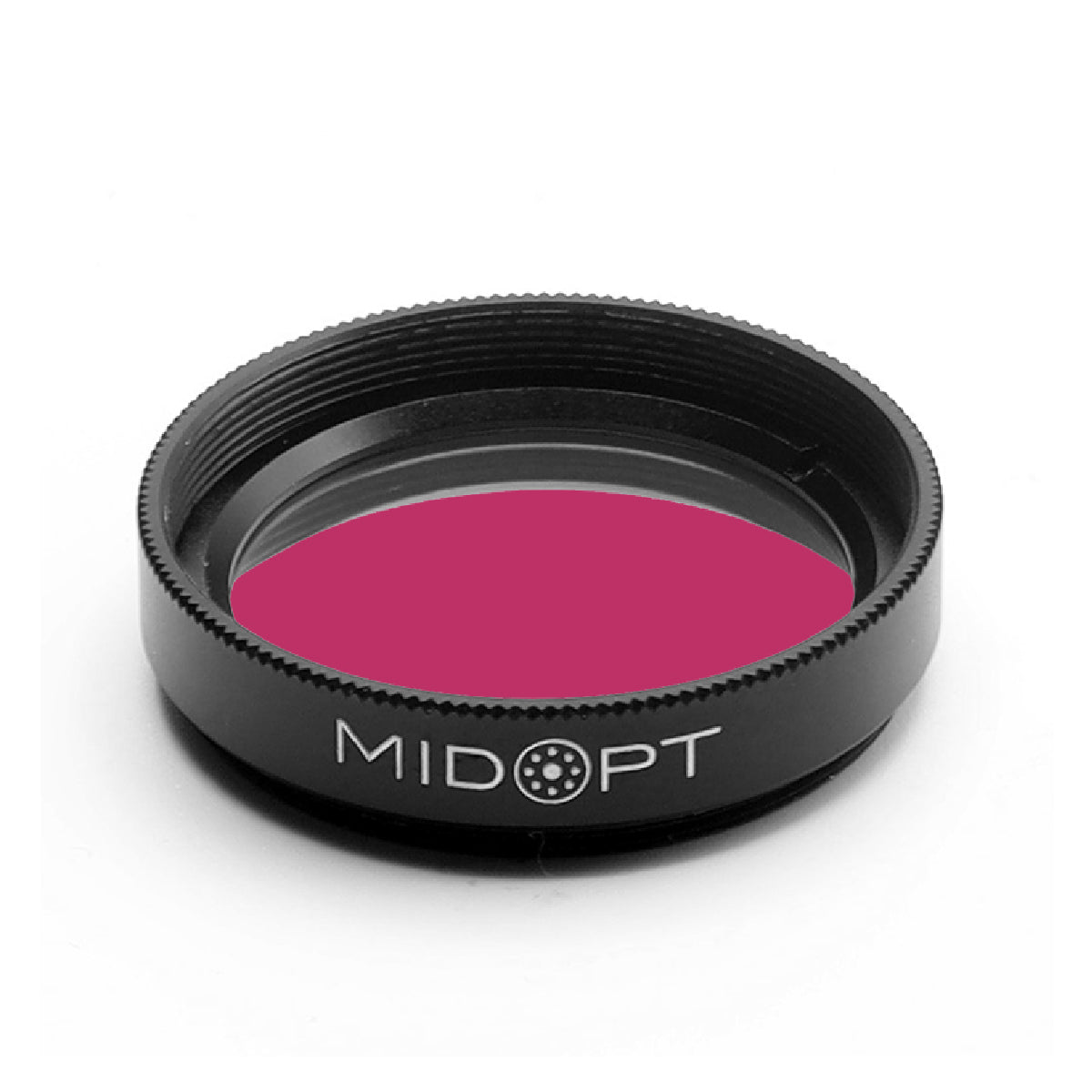

MidOpt - NF550 Magenta Dichroic Shortpass Filter (Green Block)

$109.00
$109.00

SKU: NF550-25.5

The MidOpt NF550 Magenta Dichroic Shortpass Filter (Green Block) blocks green wavelengths while allowing shorter wavelengths, such as those in... Learn more
Size
Request Info
Icon
Quick Shipping
Most items ship within 2-3 business days. Orders with expedited shipping must be received by 2 pm CST.
Order Now
Icon
Quality Guaranteed
Every item is 100% inspected to ensure exceptional quality, high performance and unrivaled reliability.
Shop Now
Icon
Contact Us
Reach out to us anytime via chat, email or phone for more info or assistance placing an order.
Get Support
Details
Specs
Technical Data
Video
Details
Details

The MidOpt NF550 Magenta Dichroic Shortpass Filter (Green Block) blocks green wavelengths while allowing shorter wavelengths, such as those in the blue and violet spectrum, to pass through. The NF550 is recommende for applications where it's essential to isolate or minimize the impact of green light, enhancing image contrast and clarity. MidOpt Shortpass Filters have a broad, Gaussian passband to mimic and accommodate the entire output of the most common LED wavelengths and are anti-reflection (AR) coated to limit glare and minimize reflection loss.

Specs
Specs

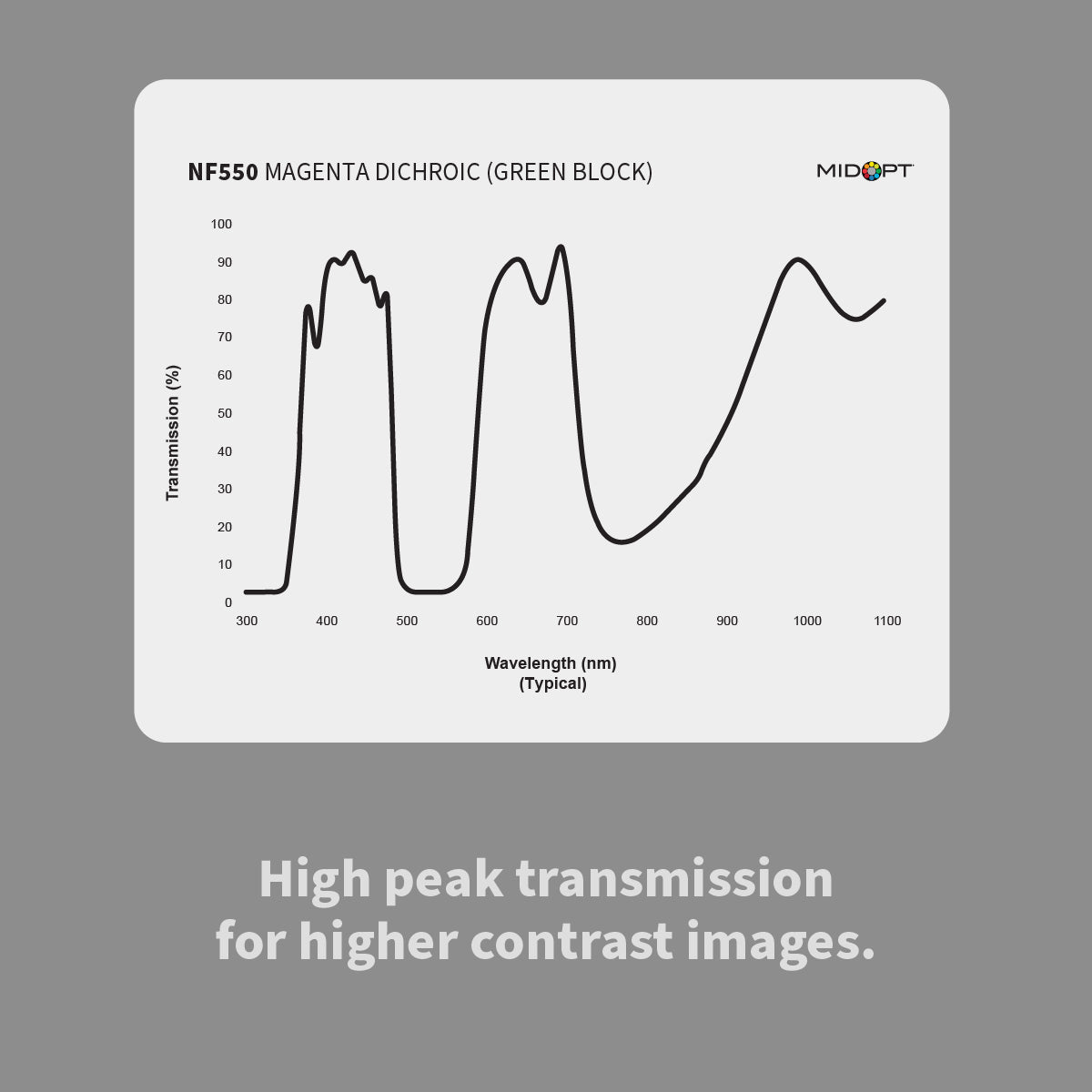

Useful Range:395-475nm, 605-700nm
Cut-Off Wavelength 50% T:480 / 590nm (cut-off / cut-on)
Tolerance:±10nm
Peak Transmission:≥90%
Surface Quality:40/20

Technical Data
Technical Data

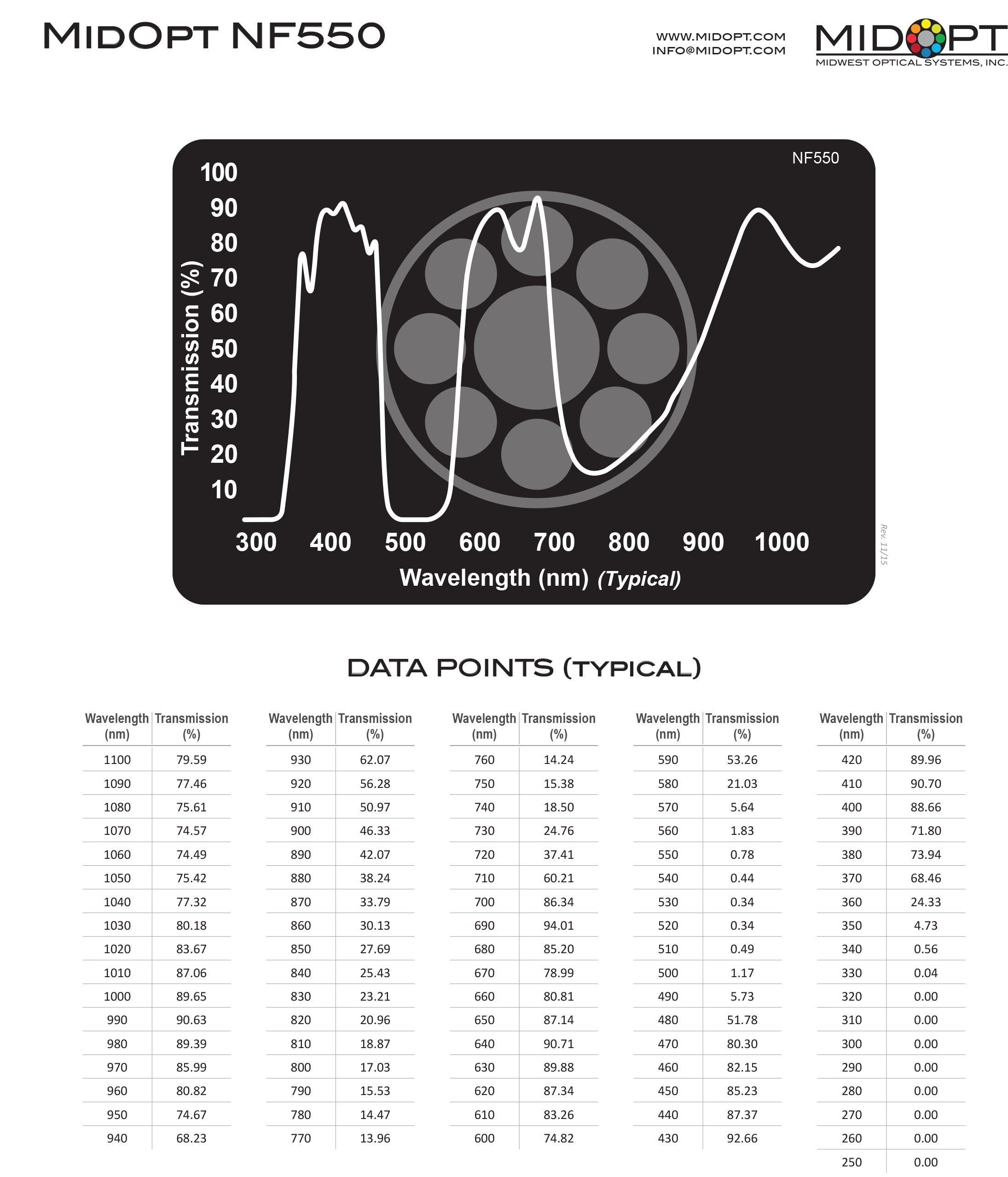

Click the image for detailed specifications and technical data.

Video
Video
MidOpt Shortpass Filters
