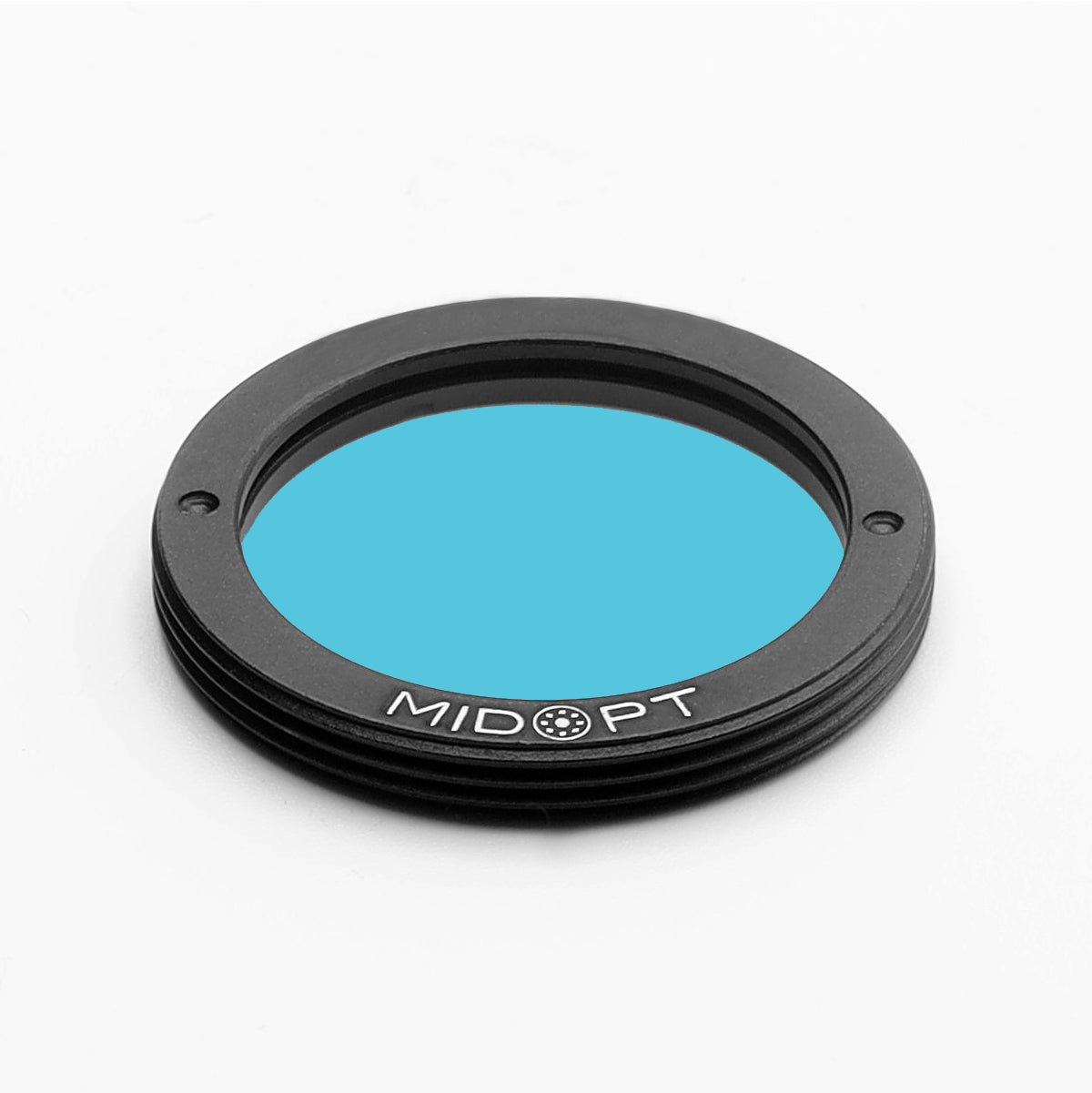

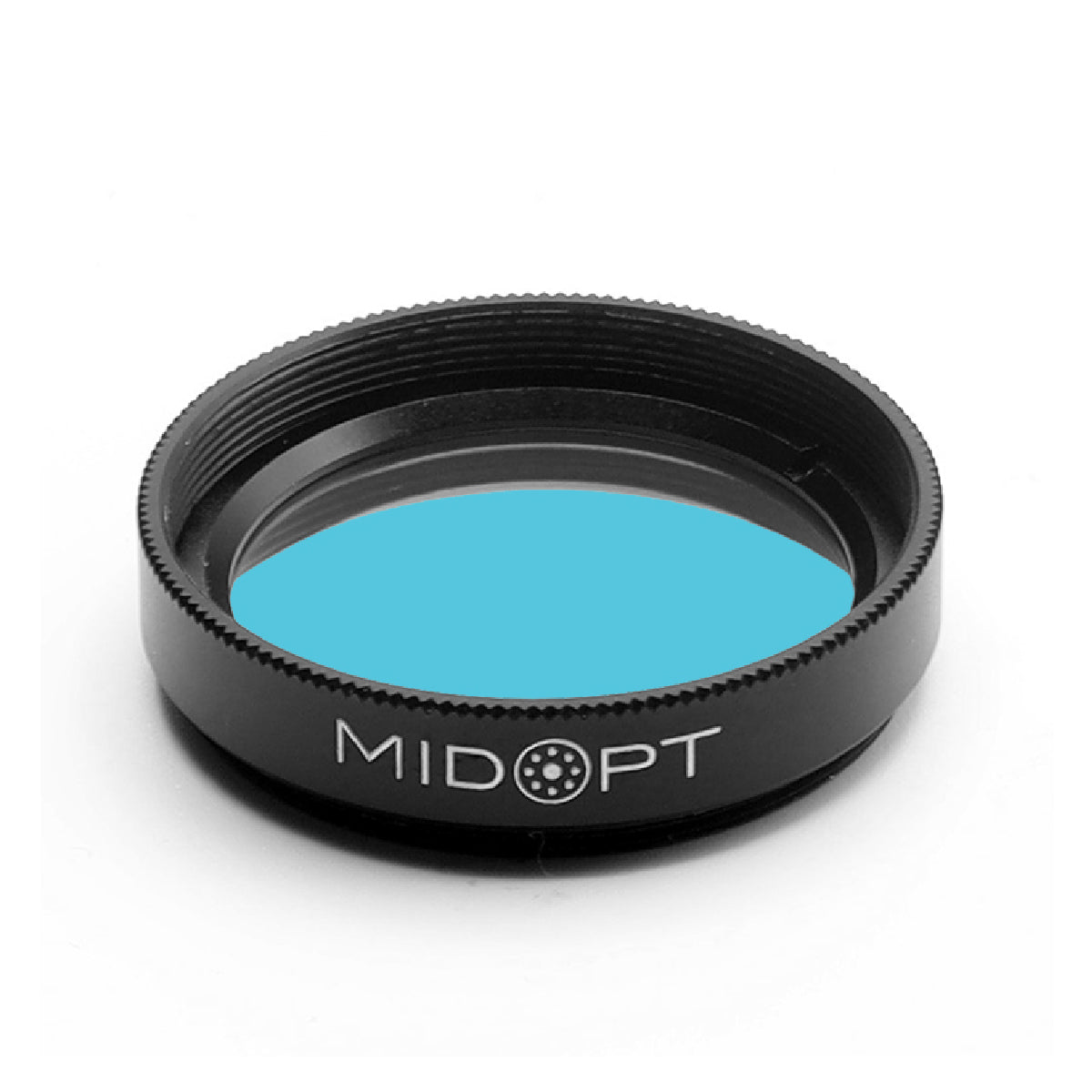

MidOpt - SP635 Absorptive Visible (VIS) Shortpass / Near-Infrared (IR) Block Filter

$109.00
$109.00

SKU: SP635-25.5

The MidOpt SP635 Absorptive Visible (VIS) Shortpass / Near-Infrared (IR) Block Filter is recommended for use inside a camera to... Learn more
Size
Request Info
Icon
Quick Shipping
Most items ship within 2-3 business days.
Order Now
Icon
Quality Guaranteed
All products are 100% inspected for quality.
Shop Now
Icon
Contact Us
Reach out to us anytime for more info.
Get Support
Details
Specs
Technical Data
Video
Details
Details

The MidOpt SP635 Absorptive Visible (VIS) Shortpass / Near-Infrared (IR) Block Filter is recommended for use inside a camera to block IR light. When working with any camera that has been modified to have its internal IR cut filter removed, an SP635 is mounted on the front of the lens when needed to return the camera's function to the unmodified version. As an absorptive IR block filter, it's also recommended for protecting the camera’s sensor from stray light emitted by lasers or other high power near-IR (NIR) light sources. MidOpt Shortpass Filters have a broad, Gaussian passband to mimic and accommodate the entire output of the most common LED wavelengths, are anti-reflection (AR) coated to limit glare and minimize reflection loss and have StablEDGE technology to reduce angular dependency and minimize the effects of short-shifting.

Specs
Specs

Useful Range:380-585nm
Cut-Off Wavelength 50% T:635nm
Tolerance:±10nm
Peak Transmission:≥90%
Surface Quality:40/20

Technical Data
Technical Data

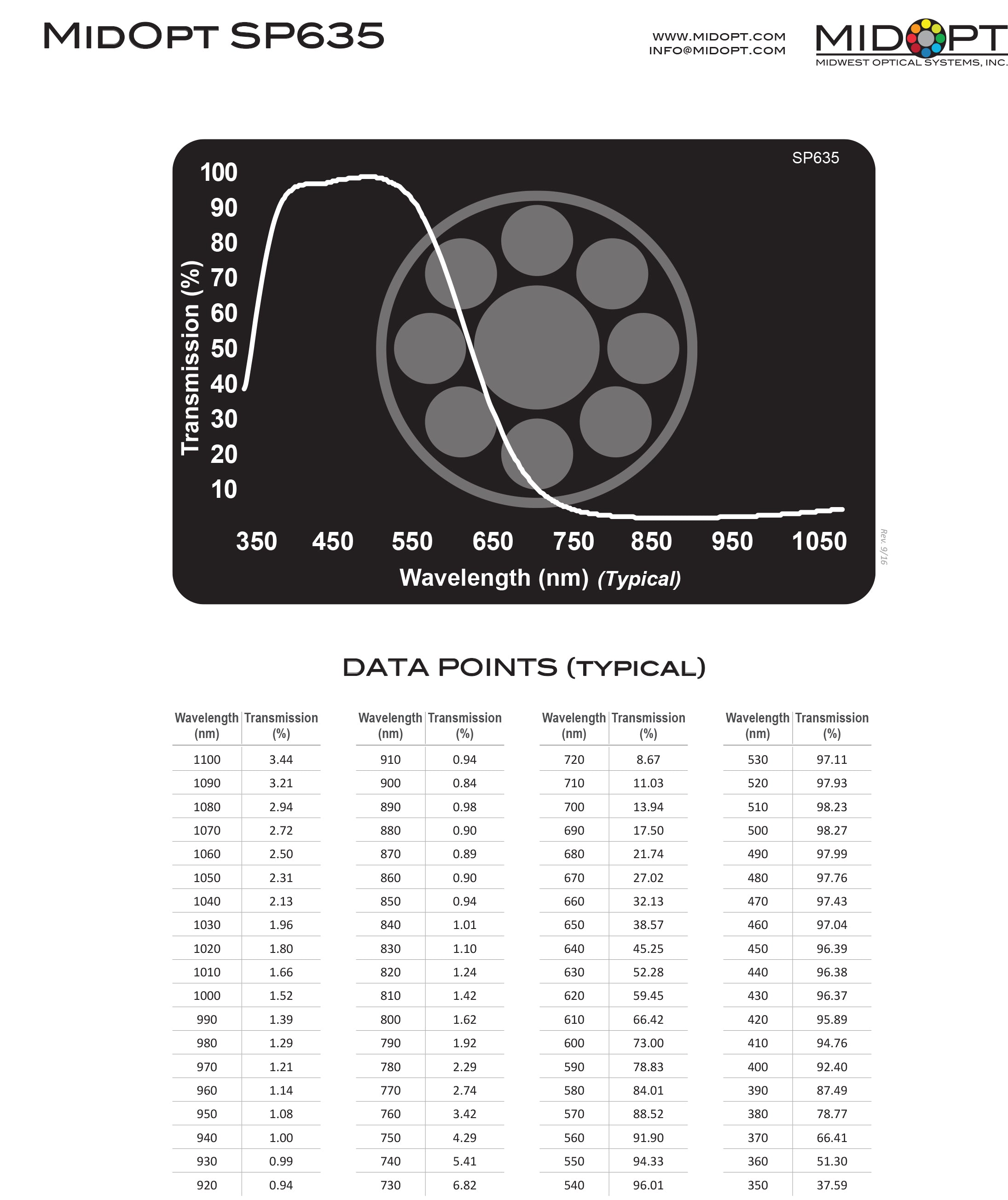

Click the image for detailed specifications and technical data.

Video
Video
MidOpt Shortpass Filters
Providing the most popular machine vision products from industry leaders.
Shop a wide range of products from globally recognized industrial imaging brands.
