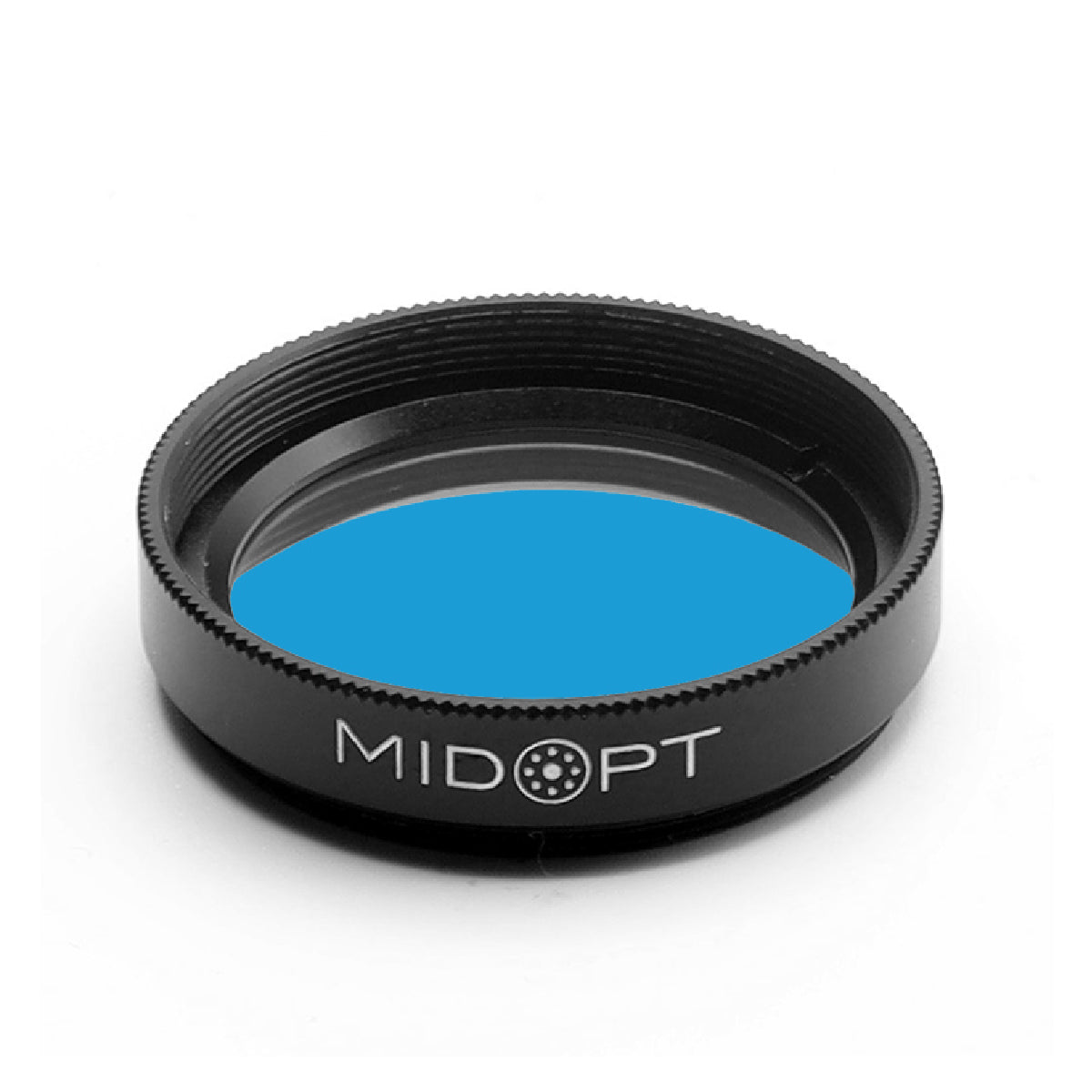

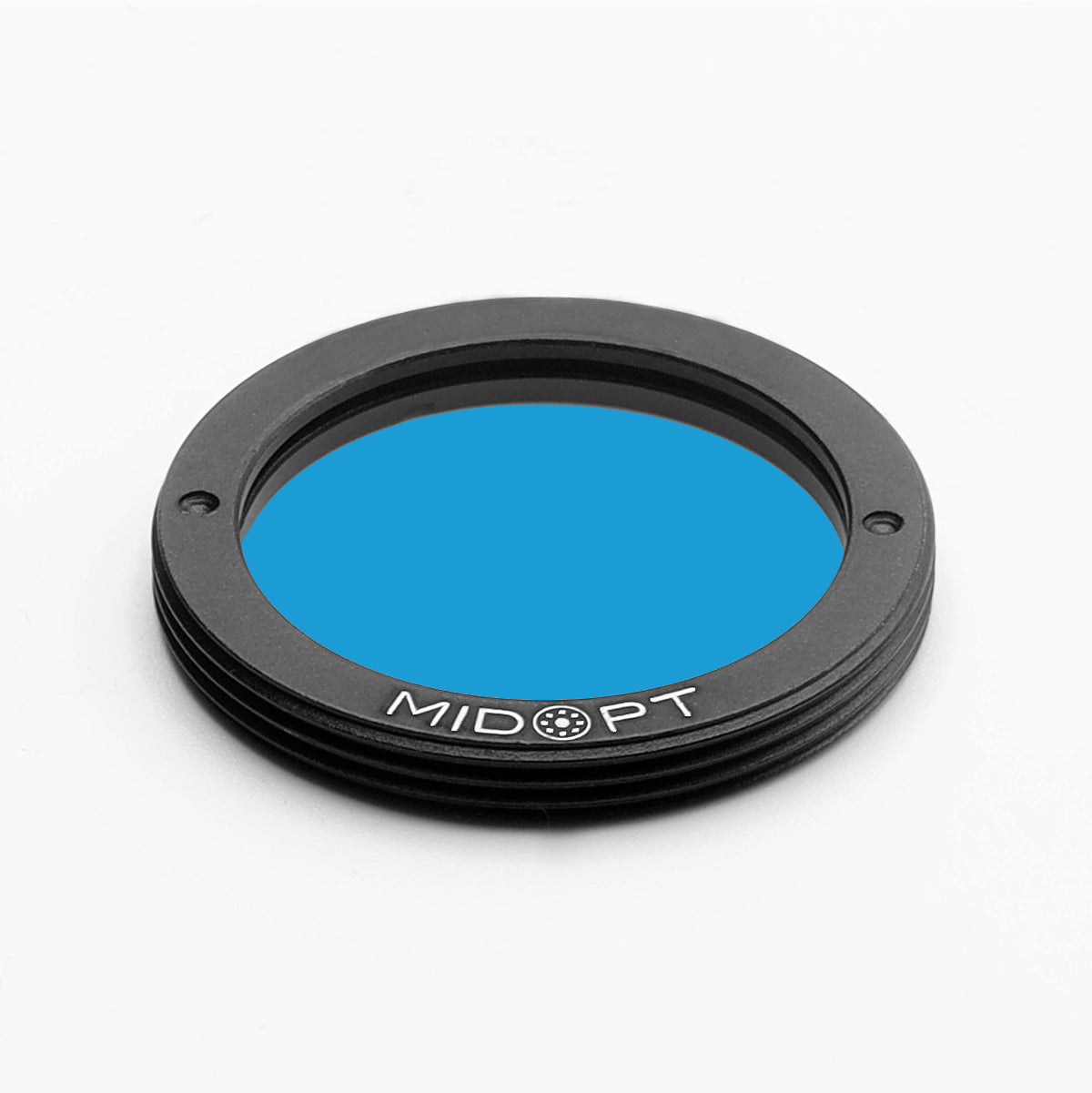

MidOpt - SP585 Cyan Shortpass Filter

$109.00
$109.00

SKU: SP585-25.5

The MidOpt SP585 Cyan Shortpass Filter is recommended for applications that have an overwhelming amount of orange, red and near-infrared... Learn more
Size
Request Info
Icon
Quick Shipping
Most items ship within 2-3 business days. Orders with expedited shipping must be received by 2 pm CST.
Order Now
Icon
Quality Guaranteed
Every item is 100% inspected to ensure exceptional quality, high performance and unrivaled reliability.
Shop Now
Icon
Contact Us
Reach out to us anytime via chat, email or phone for more info or assistance placing an order.
Get Support
Details
Specs
Technical Data
Video
Details
Details

The MidOpt SP585 Cyan Shortpass Filter is recommended for applications that have an overwhelming amount of orange, red and near-infrared (IR) light. The SP585 is useful for viewing hot rolled steel to see specific temperature areas while not blinding the system. It's often used together with a neutral density (ND) filter. MidOpt Shortpass Filters have a broad, Gaussian passband to mimic and accommodate the entire output of the most common LED wavelengths and are anti-reflection (AR) coated to limit glare and minimize reflection loss.

Specs
Specs

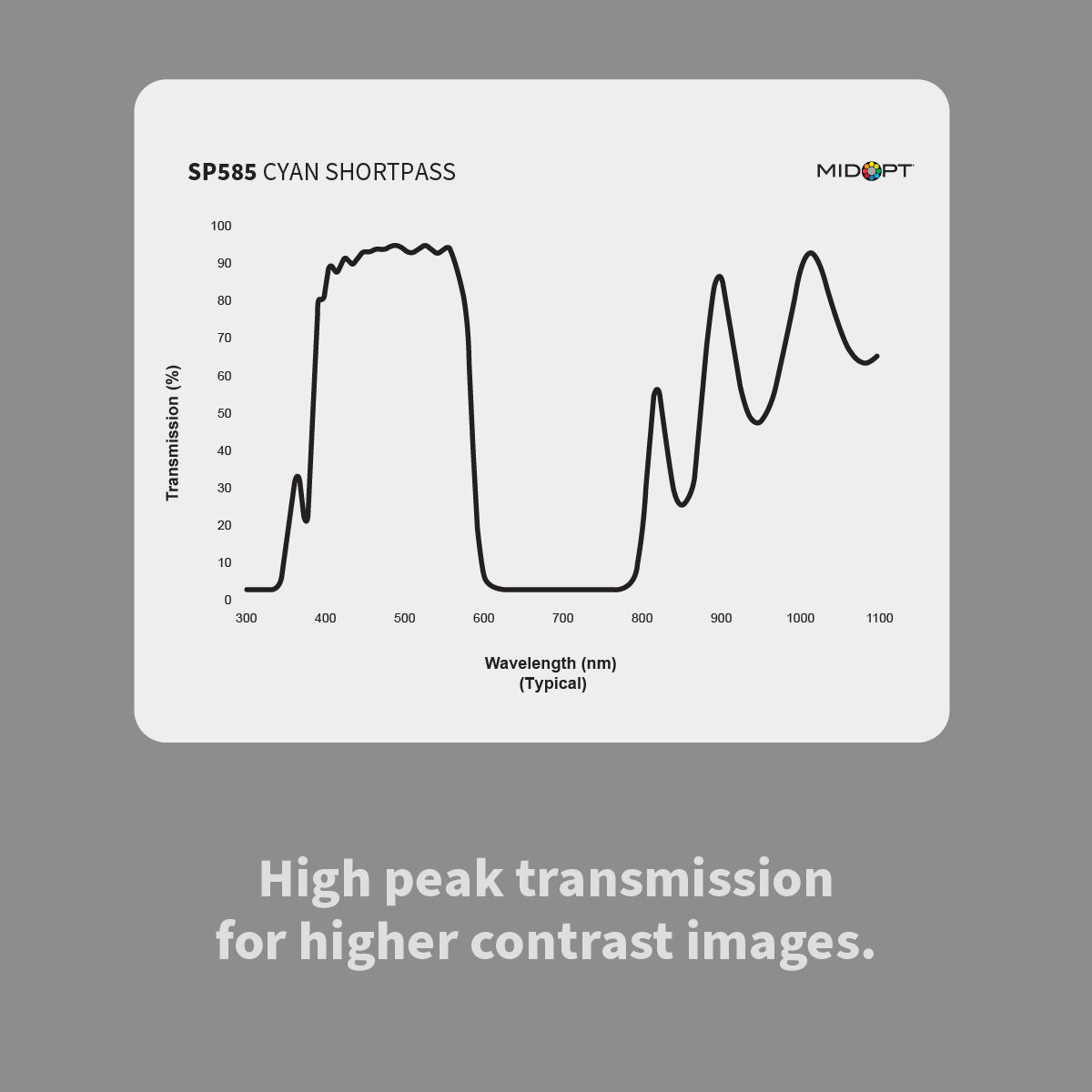

Useful Range:395-575nm
Cut-Off Wavelength 50% T:585nm
Tolerance:±10nm
Peak Transmission:≥90%
Surface Quality:40/20

Technical Data
Technical Data

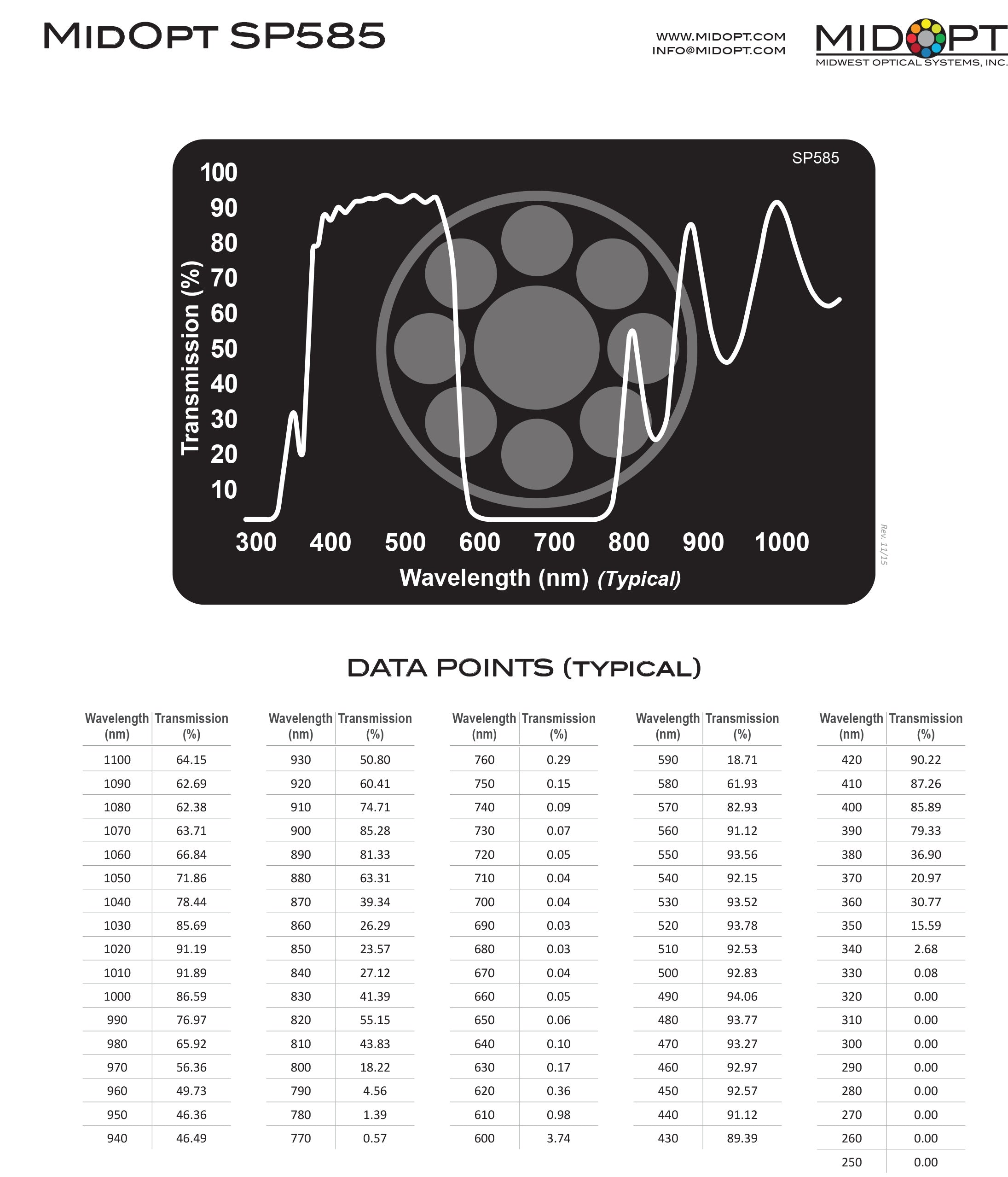

Click the image for detailed specifications and technical data.

Video
Video
MidOpt Shortpass Filters
Providing the most popular machine vision products from industry leaders.
Shop a wide range of products from globally recognized industrial imaging brands.
