MidOpt - SP510 Blue Shortpass Filter

$109.00
$109.00

SKU: SP510-25.5

The MidOpt SP510 Blue Shortpass Filter passes blue light while blocking the green and red portions of the spectrum. They... Learn more
Size
Request Info
Icon
Quick Shipping
Most items ship within 2-3 business days. Orders with expedited shipping must be received by 2 pm CST.
Order Now
Icon
Quality Guaranteed
Every item is 100% inspected to ensure exceptional quality, high performance and unrivaled reliability.
Shop Now
Icon
Contact Us
Reach out to us anytime via chat, email or phone for more info or assistance placing an order.
Get Support
Details
Specs
Technical Data
Video
Details
Details

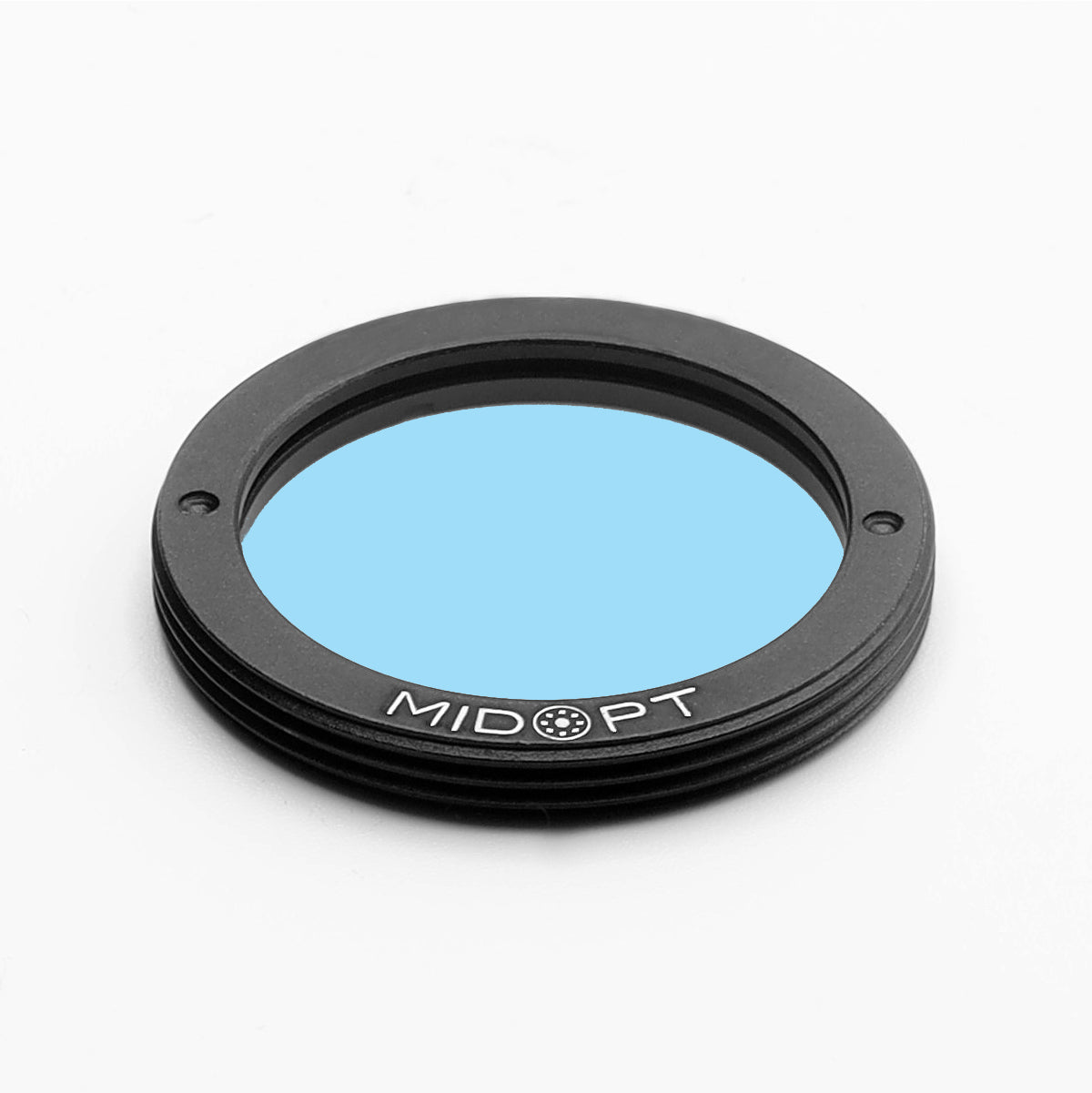

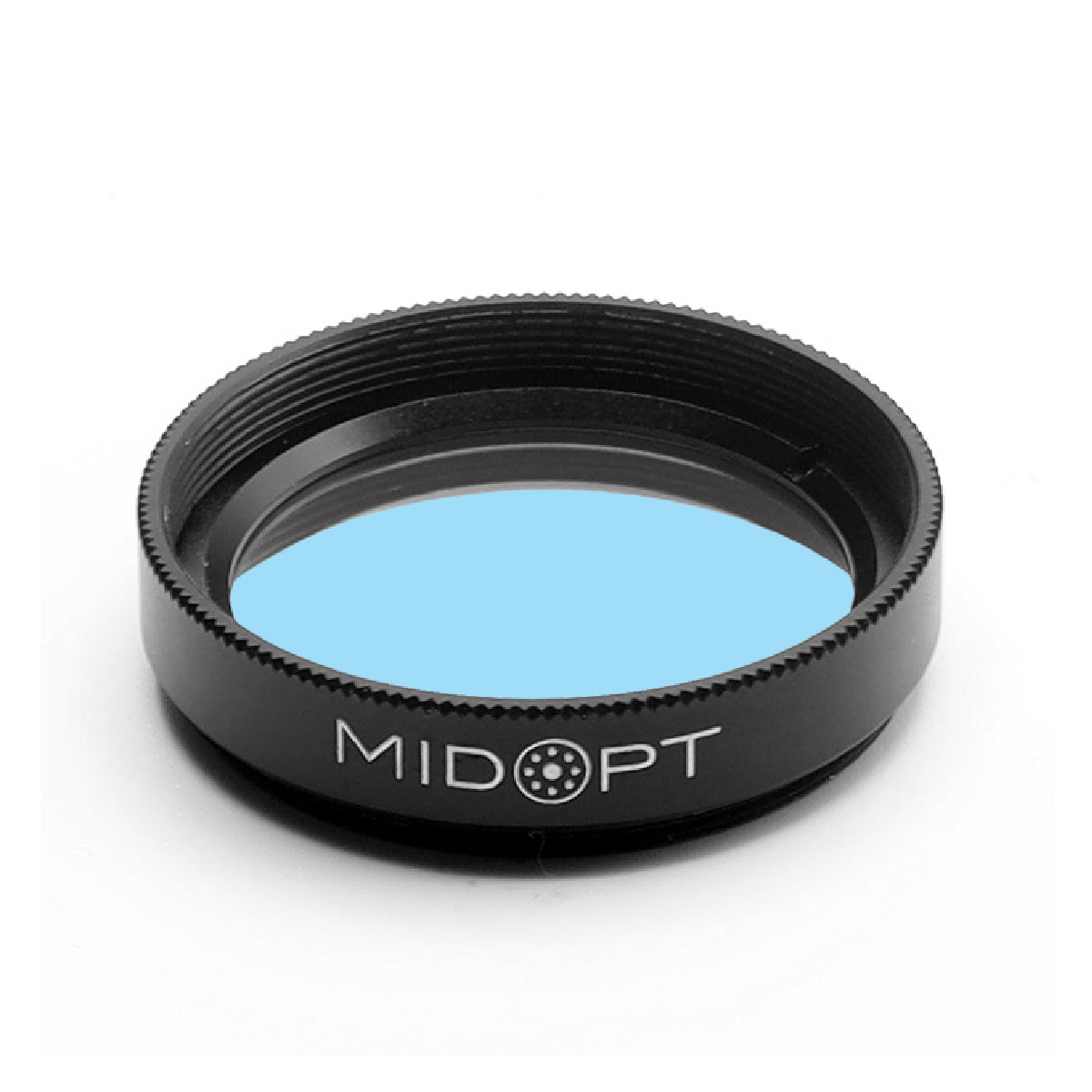

The MidOpt SP510 Blue Shortpass Filter passes blue light while blocking the green and red portions of the spectrum. They are useful for improving contrast and resolution, and separating colors in black and white or color applications, like when separating gold or duller metallic finishes from silver or brighter metallic finishes. The SP510 is also widely used in 3D measurement applications. MidOpt Shortpass Filters have a broad, Gaussian passband to mimic and accommodate the entire output of the most common LED wavelengths and are anti-reflection (AR) coated to limit glare and minimize reflection loss.

Specs
Specs

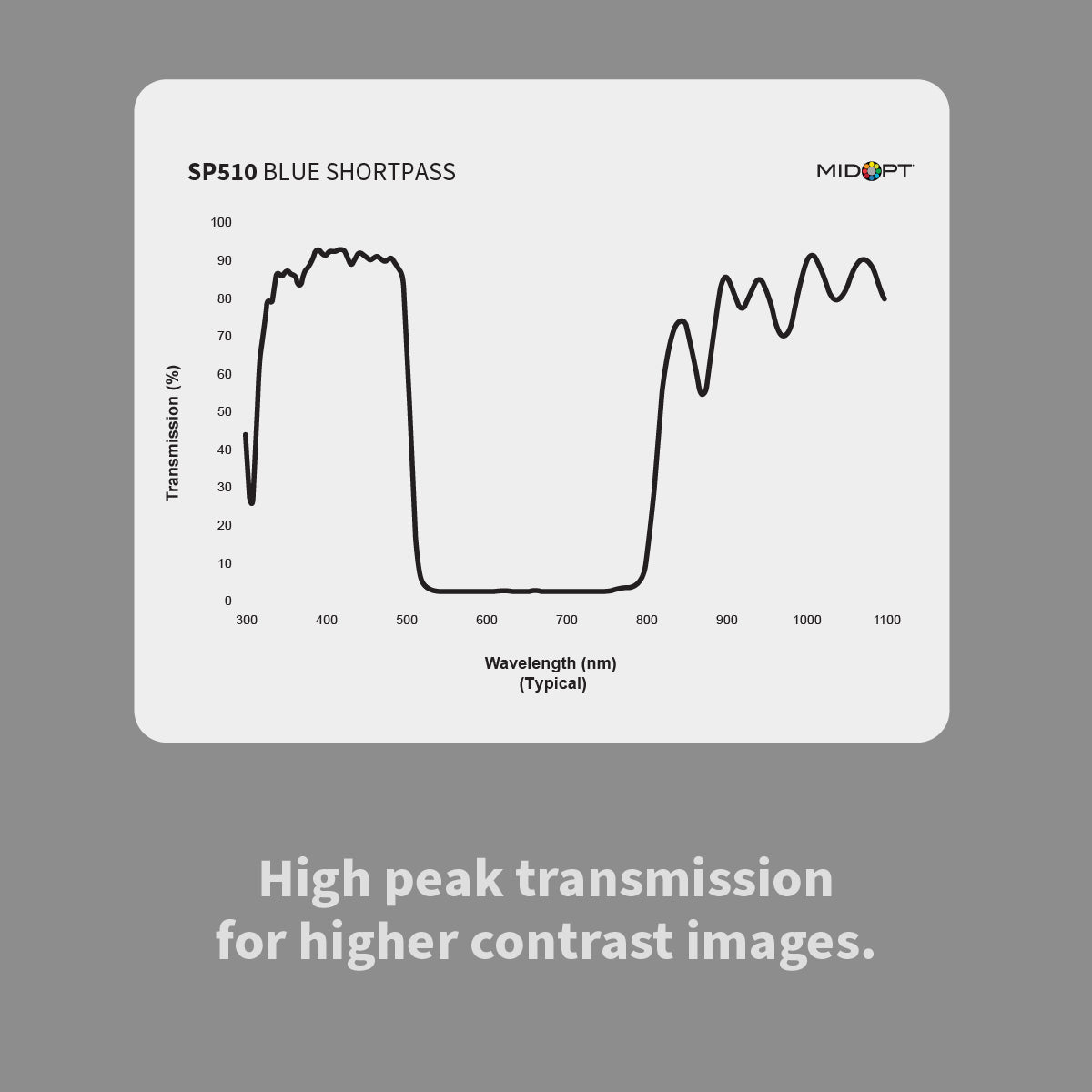

Useful Range:340-500nm
Cut-Off Wavelength 50% T:510nm
Tolerance:±10nm
Peak Transmission:≥90%
Surface Quality:40/20

Technical Data
Technical Data

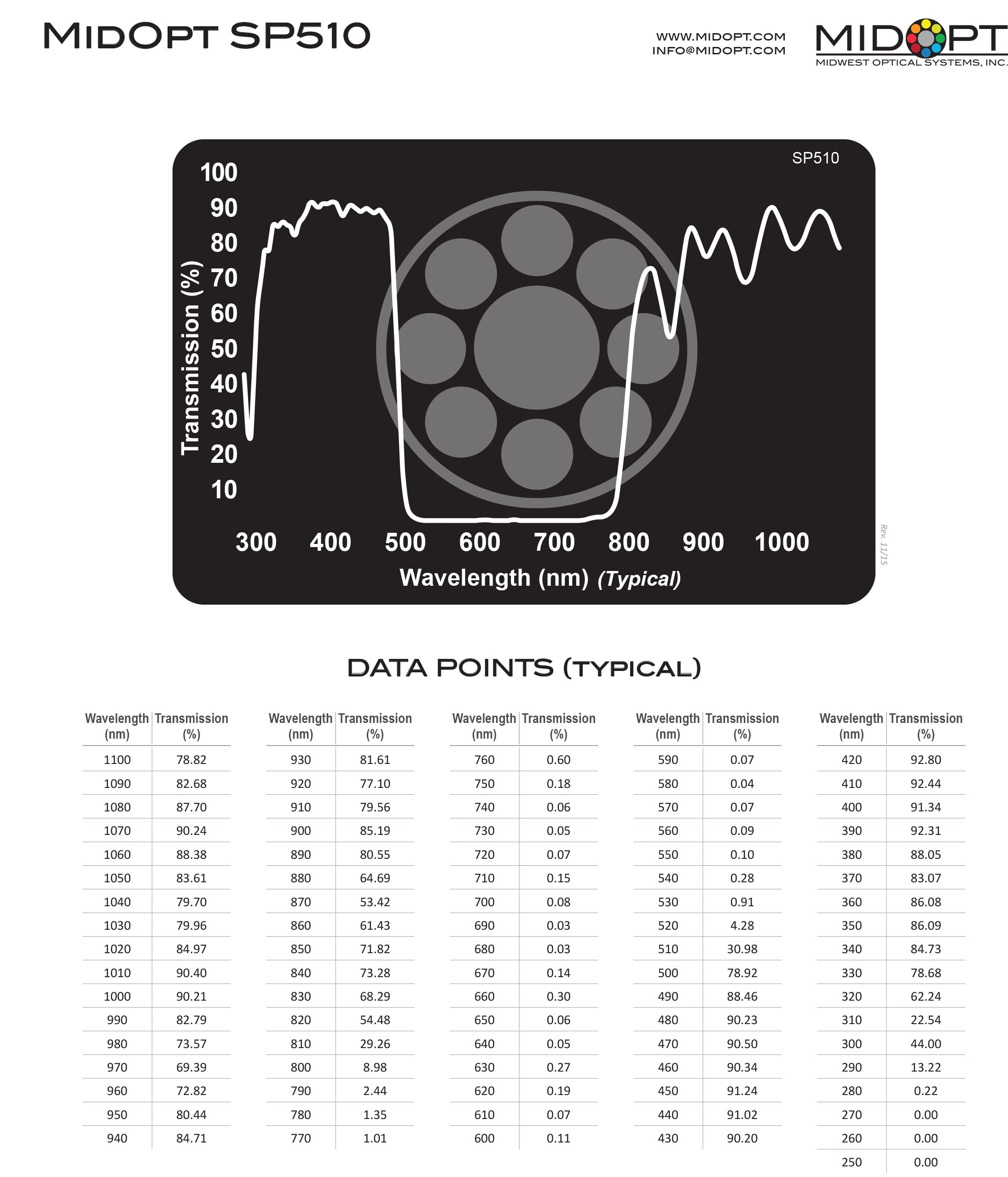

Click the image for detailed specifications and technical data.

Video
Video
MidOpt Shortpass Filters
