MidOpt - LP530 Orange Longpass Filter

$89.00
$89.00

SKU: LP530-25.5

The MidOpt LP530 Orange Longpass Filter is used with a monochrome camera to increase contrast and resolution by blocking ultraviolet... Learn more
Size
Request Info
Icon
Quick Shipping
Most items ship within 2-3 business days. Orders with expedited shipping must be received by 2 pm CST.
Order Now
Icon
Quality Guaranteed
Every item is 100% inspected to ensure exceptional quality, high performance and unrivaled reliability.
Shop Now
Icon
Contact Us
Reach out to us anytime via chat, email or phone for more info or assistance placing an order.
Get Support
Details
Specs
Technical Data
Video
Details
Details

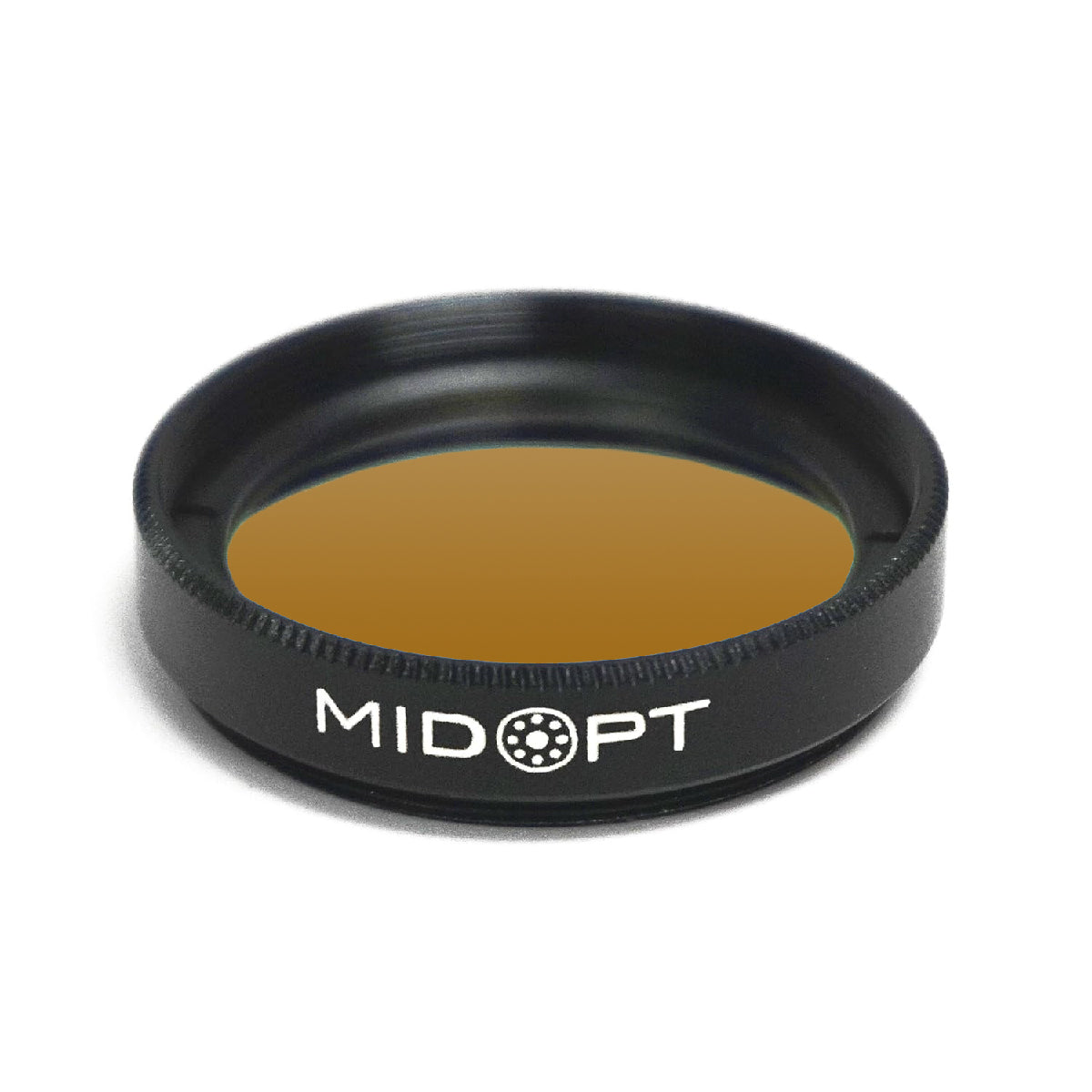

The MidOpt LP530 Orange Longpass Filter is used with a monochrome camera to increase contrast and resolution by blocking ultraviolet (UV) and blue-green light while passing longer wavelengths. Longpass filters are often referred to as "sharp-cut" filters and are specifically designed to pass a broad spectrum of longer wavelength light while blocking shorter wavelengths. They're commonly used in fluorescence applications to block an excitation light source or to pass multiple emission wavelengths, improving signal-to-noise ratio. To block longer wavelengths, including the near-infrared (IR), the MidOpt BP595 is recommended. MidOpt Longpass Filters have a broad, Gaussian passband to mimic and accommodate the entire output of the most common LED wavelengths, are double-side polished for exceptional parallelism and optical flatness and are anti-reflection (AR) coated to limit glare and minimize reflection loss.

Specs
Specs

Useful Range:545-1100nm
Cut-On Wavelength 50% T:530nm
Tolerance:±10nm

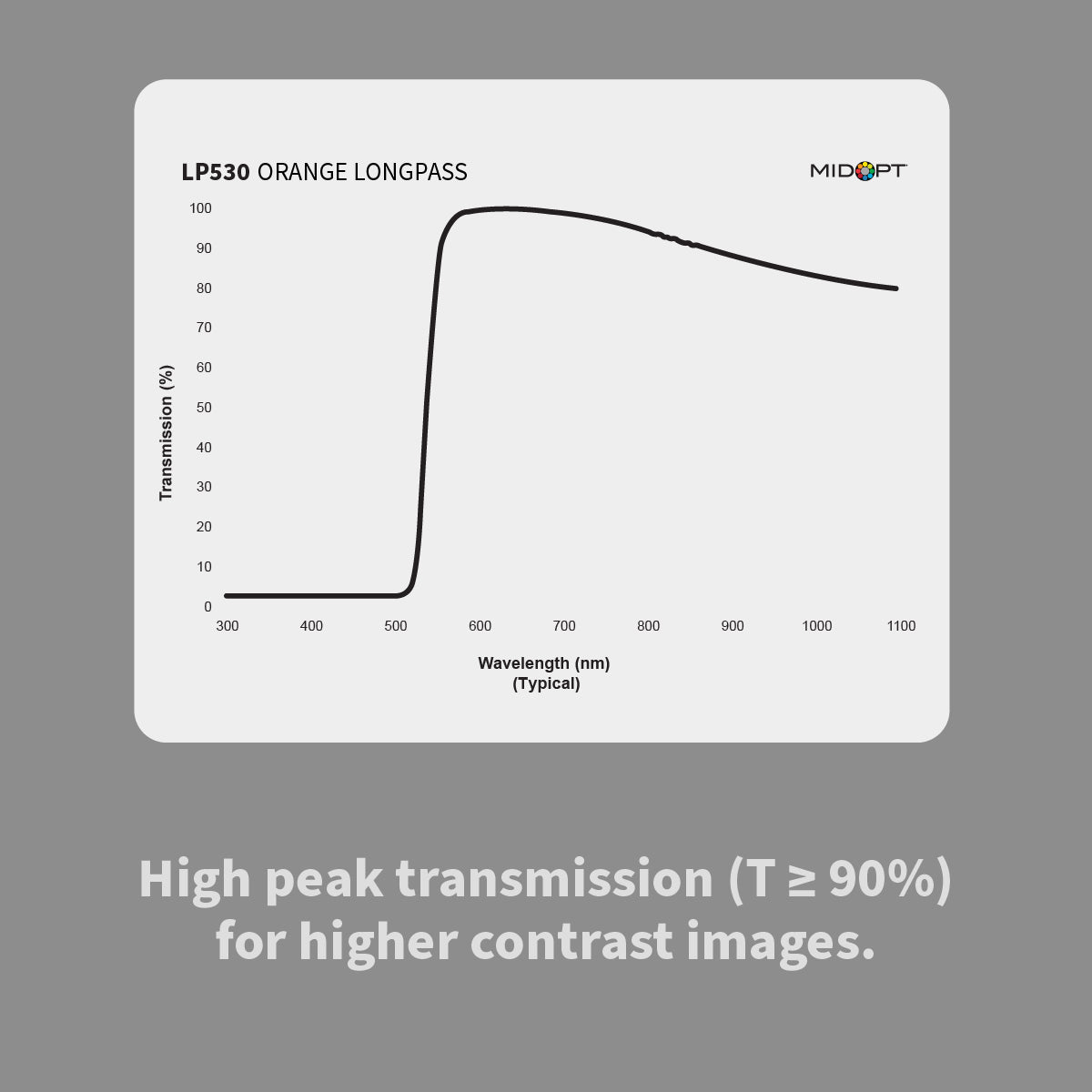

Peak Transmission:≥90%
Surface Quality:40/20

Technical Data
Technical Data

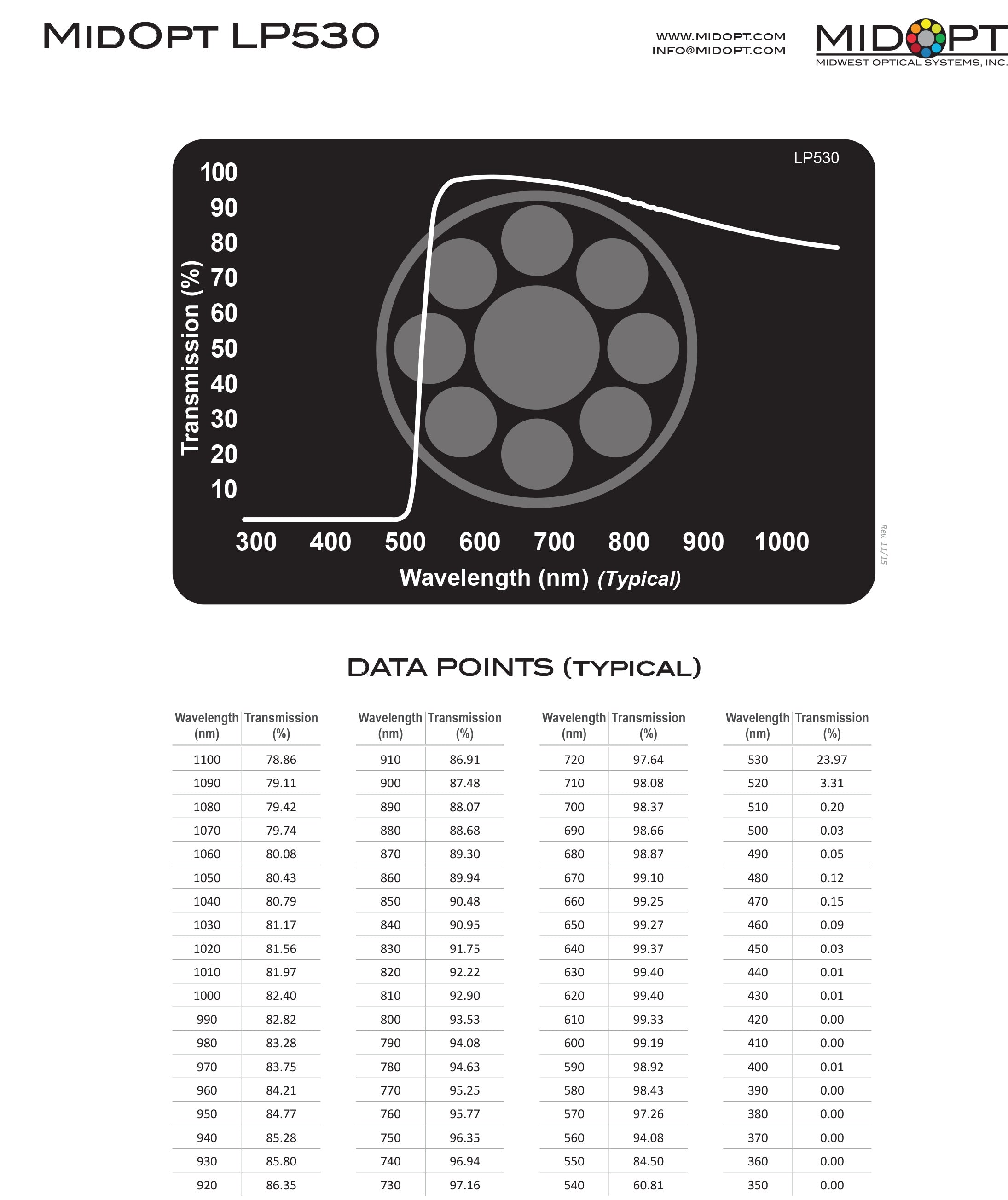

Click the image for detailed specifications and technical data.

Video
Video
MidOpt Longpass Filters
Providing the most popular machine vision products from industry leaders.
Shop a wide range of products from globally recognized industrial imaging brands.
