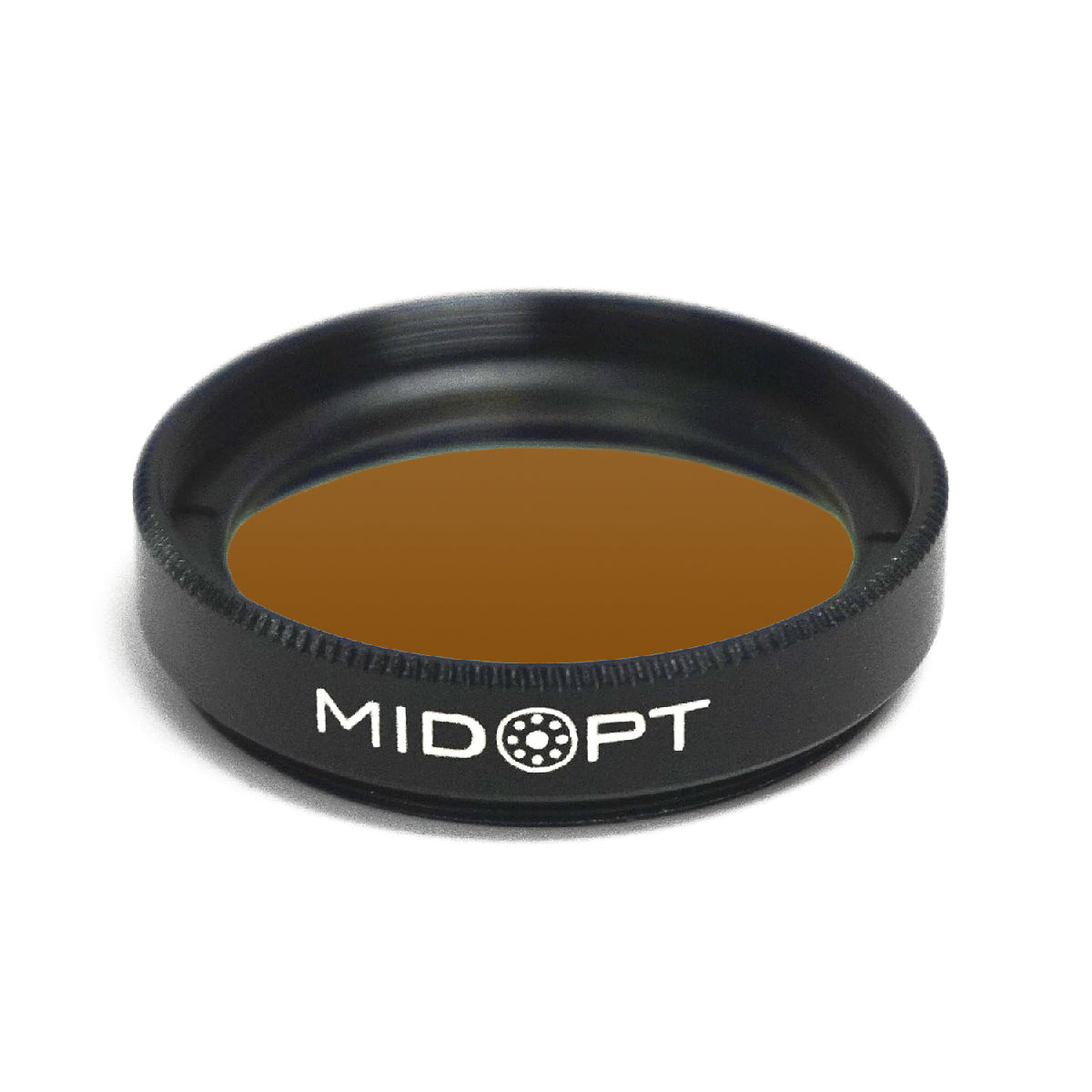

MidOpt - LP550 Orange Longpass Filter

$89.00
$89.00

SKU: LP550-25.5

The MidOpt LP550 Orange Longpass Filter is used with a monochrome camera to increase contrast and resolution by blocking ultraviolet... Learn more
Size
Request Info
Icon
Quick Shipping
Most items ship within 2-3 business days. Orders with expedited shipping must be received by 2 pm CST.
Order Now
Icon
Quality Guaranteed
Every item is 100% inspected to ensure exceptional quality, high performance and unrivaled reliability.
Shop Now
Icon
Contact Us
Reach out to us anytime via chat, email or phone for more info or assistance placing an order.
Get Support
Details
Specs
Technical Data
Video
Details
Details

The MidOpt LP550 Orange Longpass Filter is used with a monochrome camera to increase contrast and resolution by blocking ultraviolet (UV) and shorter visible (VIS) wavelengths while passing orange, red and near-infrared (IR) light. Longpass filters are often referred to as "sharp-cut" filters and are specifically designed to pass a broad spectrum of longer wavelength light while blocking shorter wavelengths. They're commonly used in fluorescence applications to block an excitation light source or to pass multiple emission wavelengths, improving signal-to-noise ratio. To block longer wavelengths, including IR, which the camera may be sensitive to, the MidOpt BP595 is recommended. MidOpt Longpass Filters have a broad, Gaussian passband to mimic and accommodate the entire output of the most common LED wavelengths, are double-side polished for exceptional parallelism and optical flatness and are anti-reflection (AR) coated to limit glare and minimize reflection loss.

Specs
Specs

Useful Range:560-1100nm
Cut-On Wavelength 50% T:550nm
Tolerance:±10nm
Peak Transmission:≥90%
Surface Quality:40/20

Technical Data
Technical Data

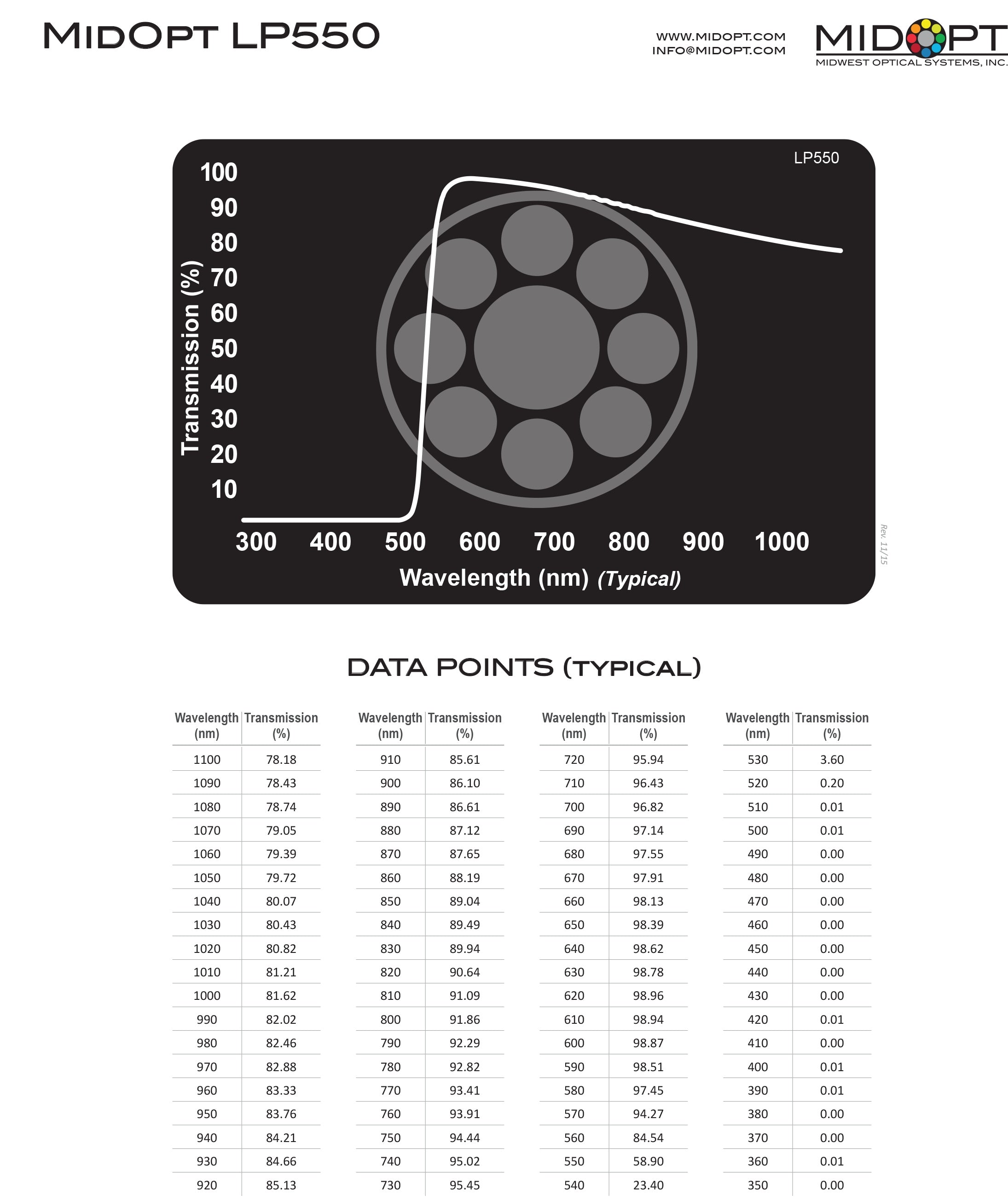

Click the image for detailed specifications and technical data.
