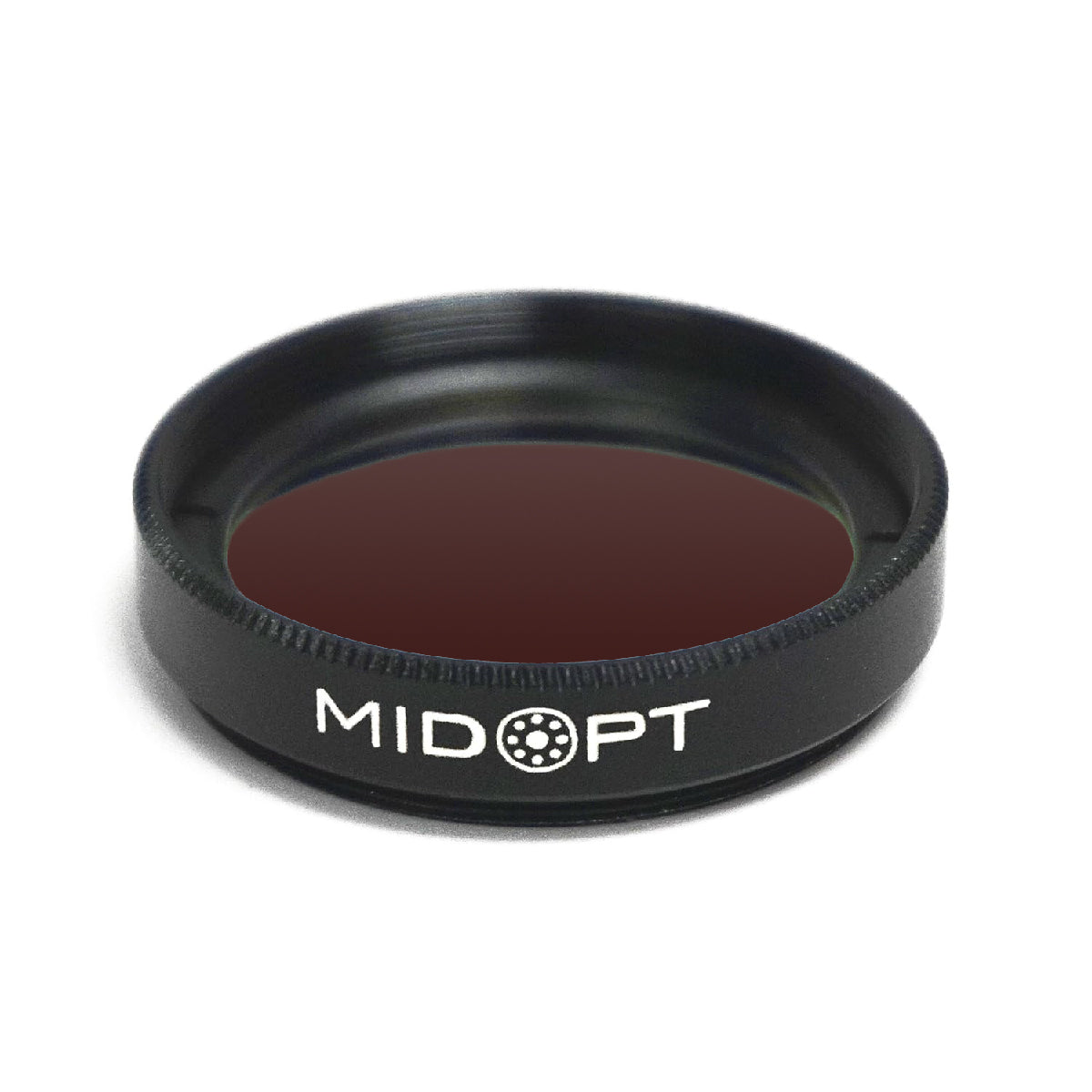

MidOpt - LP665 Dark Red Longpass Filter

$89.00
$89.00

SKU: LP665-25.5

The MidOpt LP665 Dark Red Longpass Filter is recommended for night vision applications using a filtered broadband light source. The... Learn more
Size
Request Info
Icon
Quick Shipping
Most items ship within 2-3 business days. Orders with expedited shipping must be received by 2 pm CST.
Order Now
Icon
Quality Guaranteed
Every item is 100% inspected to ensure exceptional quality, high performance and unrivaled reliability.
Shop Now
Icon
Contact Us
Reach out to us anytime via chat, email or phone for more info or assistance placing an order.
Get Support
Details
Specs
Technical Data
Video
Details
Details

The MidOpt LP665 Dark Red Longpass Filter is recommended for night vision applications using a filtered broadband light source. The LP665 blocks most visible (VIS) light while passing deep red and near-infrared (IR) wavelengths. If the application required blocking IR light for easier subject matter recognition, the MidOpt BP660 is recommended. MidOpt Longpass Filters have a broad, Gaussian passband to mimic and accommodate the entire output of the most common LED wavelengths, are double-side polished for exceptional parallelism and optical flatness and are anti-reflection (AR) coated to limit glare and minimize reflection loss.

Specs
Specs

Useful Range:680-1100nm
Cut-On Wavelength 50% T:665nm
Tolerance:±10nm

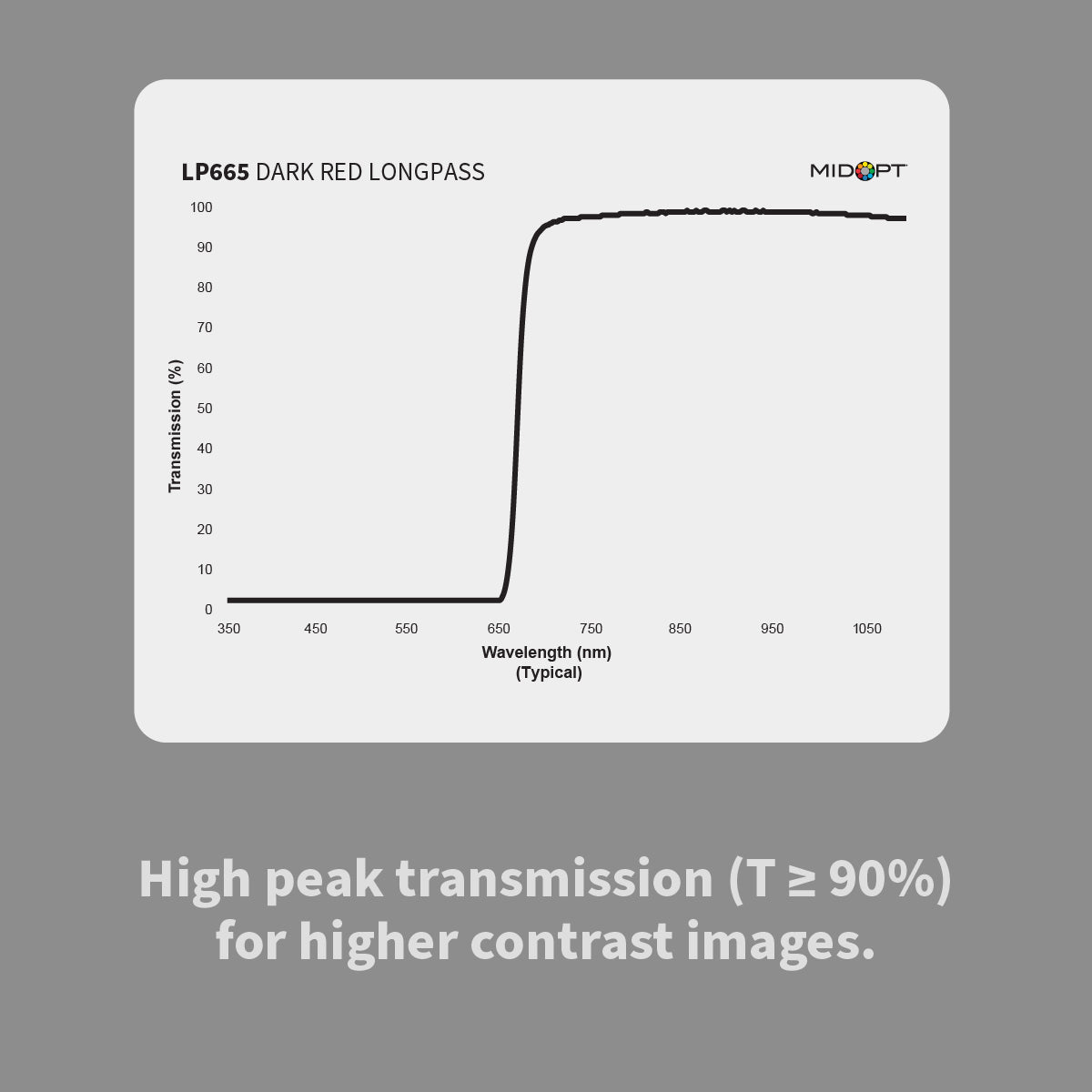

Peak Transmission:≥90%
Surface Quality:40/20

Technical Data
Technical Data

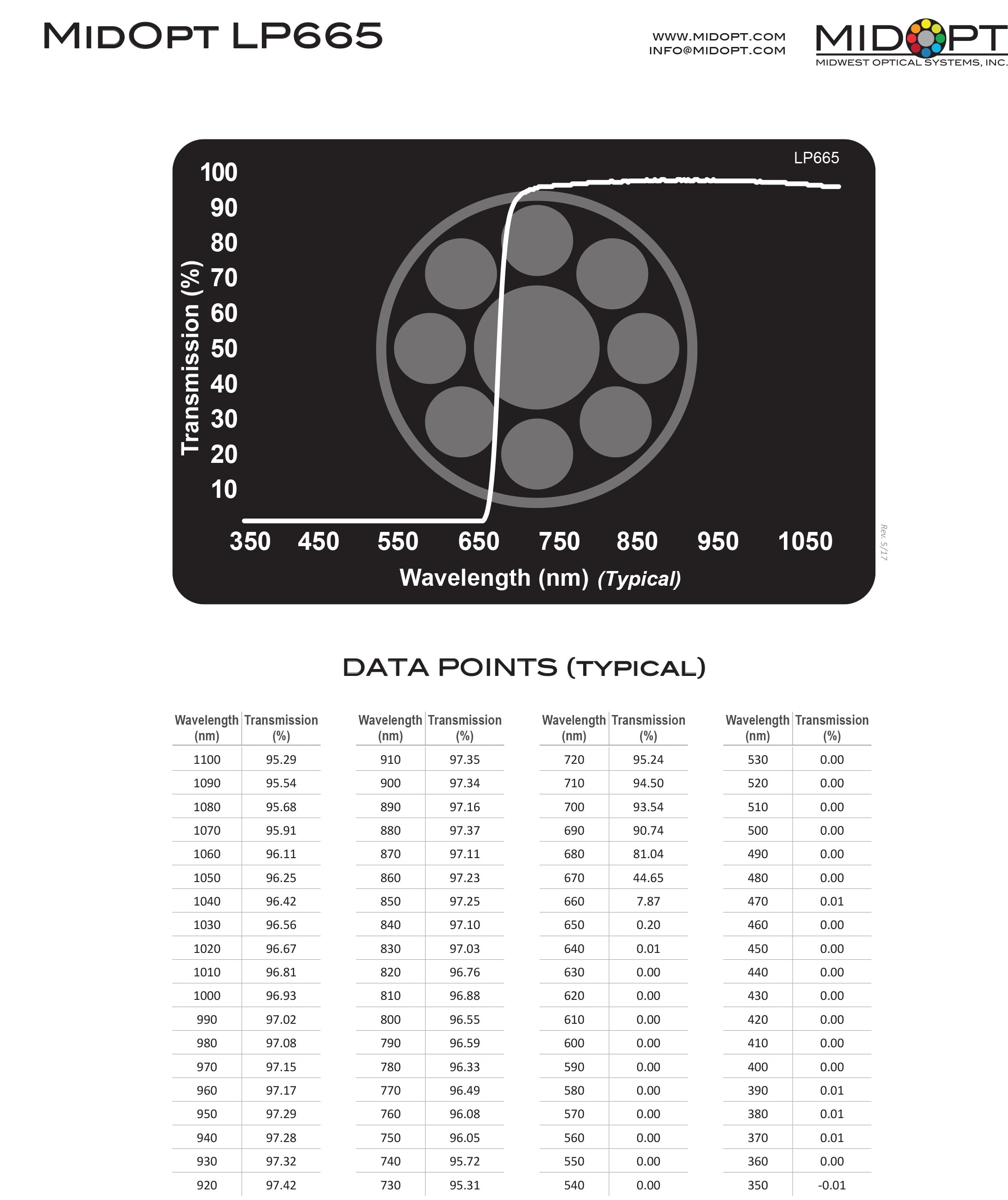

Click the image for detailed specifications and technical data.

Video
Video
MidOpt Longpass Filters
