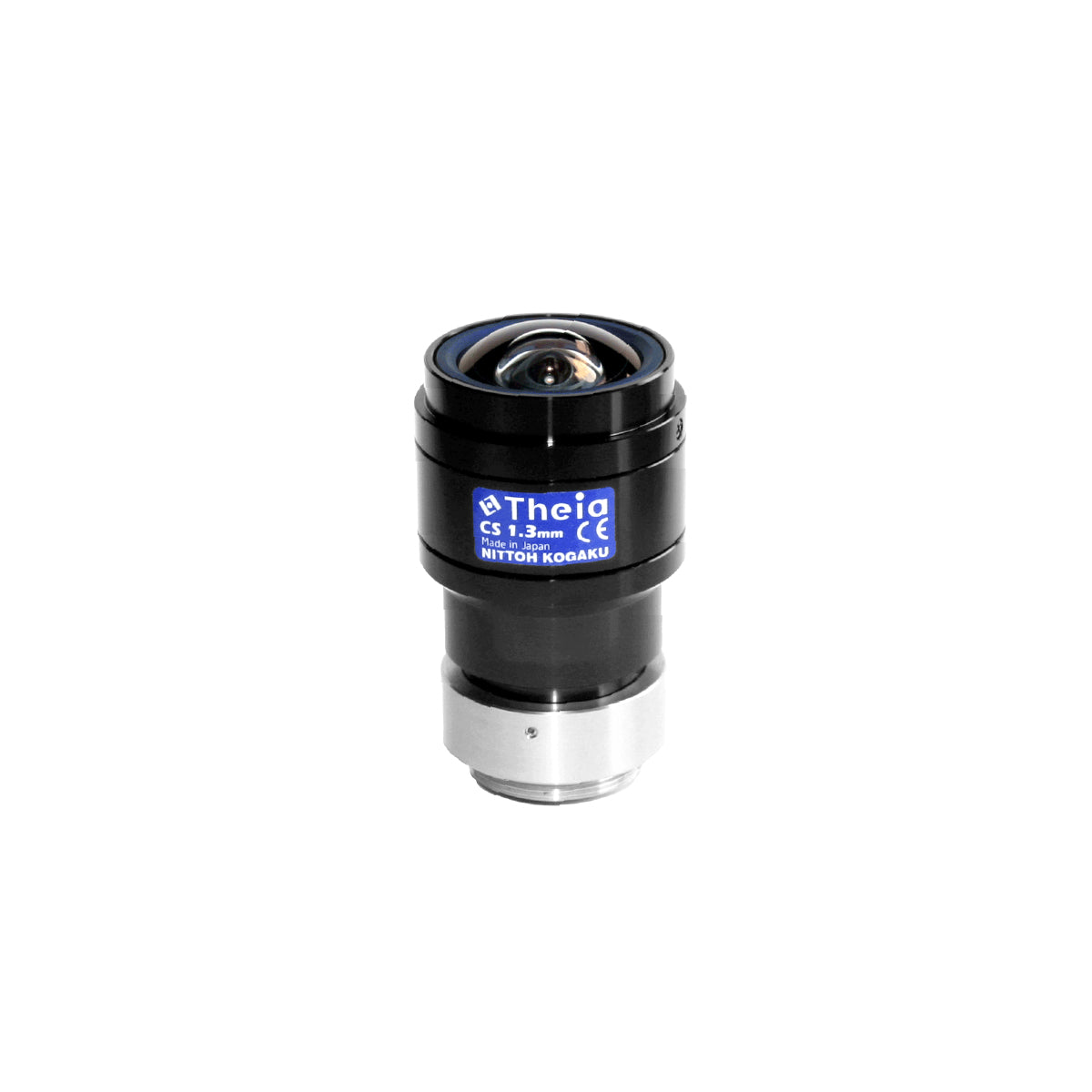

Low-Distortion Lens, 1.3mm, 5MP, 1/2.5in, f/1.8-Close, Ultra-Wide, Manual Iris, CS Mount - Theia SY125M

$524.00
$524.00

SKU: SY125M

Get an expansive view without distortion. The SY125M ultra wide lens delivers a clear, accurate image free from the barrel... Learn more
Request Info
Icon
Quick Shipping
Most items ship within 2-3 business days. Orders with expedited shipping must be received by 2 pm CST.
Order Now
Icon
Quality Guaranteed
Every item is 100% inspected to ensure exceptional quality, high performance and unrivaled reliability.
Shop Now
Icon
Contact Us
Reach out to us anytime via chat, email or phone for more info or assistance placing an order.
Get Support
Details
Specs
Technical Data
Video
Details
Details

Get an expansive view without distortion. The SY125M ultra wide lens delivers a clear, accurate image free from the barrel or fisheye effects common in wide-angle optics. Built with patented Linear Optical Technology®, it ensures precise, edge-to-edge sharpness and a natural perspective.

With a 1.3mm focal length and support for up to 5 megapixel (MP) resolution, the SY125M provides exceptional detail and coverage. Its manual focus design gives you complete control over sharpness and depth, making it ideal for applications where fine-tuned focusing is critical.

Compatible with 1/2.5" sensor sizes or smaller, this lens is well-suited for machine vision, inspection, security and specialty imaging systems.

Specs
Specs
Dimensions
Ø33 x 59.0

Focal Length:1.3mm
Iris Range:f/1.8-Close
Lens Format:1/2.5in
MOD (mm):100mm
Mount:CS
Lens Type:Ultra-Wide, Low Distortion
Iris Type:Manual
Dimension (DxL):Ø33 x 56.0

Technical Data
Technical Data

Click the image for detailed specifications and technical data.
