Achieve Backlight Effects with Front Illumination

In machine vision, backlighting is one of the most effective ways to achieve high-contrast images for measurement and inspection. But what happens when there’s no room to place a light behind your part?

That’s where the Backlight FluoreSHEET® by MidOpt® offers a unique advantage – it enables a backlight-like effect using front illumination, making it ideal for tight or constrained spaces where traditional backlighting isn’t possible.

The Challenge: Limited Space for Traditional Backlighting

In many real-world systems, especially compact or retrofitted setups, placing a light source behind the object simply isn’t feasible. Mechanical constraints, conveyor layouts or enclosure limitations can prevent the use of standard backlights.

Without proper lighting, this often leads to:

• Poor edge definition
• Low contrast between object and background
• Increased image processing complexity

The Solution: Backlight Effect from the Front

The FluoreSHEET® works differently than conventional lighting. Instead of shining directly onto the object, it acts as a highly uniform, diffuse illumination surface that can be positioned creatively within the system.

When used in front illumination setups, it can:

• Reflect or transmit light in a way that mimics true backlighting
• Create clean, high-contrast silhouettes
• Reduce shadows and uneven brightness

This approach allows integrators to achieve the benefits of backlighting – without needing physical access behind the part.

How It Works

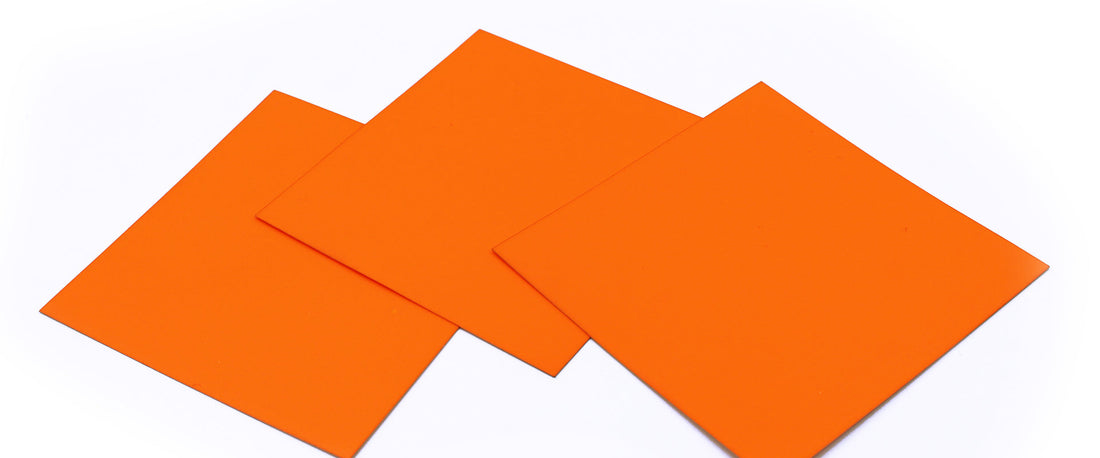

The FluoreSHEET® is a thin, flexible fluorescent panel that emits an evenly distributed glow across its entire surface. Because of this uniformity, it can be used as a controlled illumination plane in unconventional orientations.

In constrained setups, it can be:

• Positioned at angles to reflect light around the object
• Used with diffusers or reflective surfaces to simulate backlight conditions
• Integrated into tight mechanical spaces where rigid lights won’t fit

The result is a pseudo-backlight effect that enhances contrast and simplifies detection, even when space is limited.

Key Benefits for Constrained Machine Vision Systems

1. Backlight Performance Without Rear Access
Achieve silhouette-style imaging without needing space behind the target.

2. Ultra-Thin, Flexible Form Factor
Easily integrate into compact systems, enclosures, or tight inspection stations.

3. Exceptional Uniformity
Eliminates hotspots and uneven illumination that can compromise accuracy.

4. Reduced Glare and Shadowing
Improves imaging on reflective or complex surfaces.

Ideal Applications

The FluoreSHEET® is particularly useful in:

• Inline inspection systems with limited mounting space
• Retrofitted machine vision setups where redesign isn’t practical
• High-speed production lines requiring consistent, repeatable lighting
• Inspection of small or intricate parts where precision is critical

Why This Matters

Lighting constraints are one of the most common challenges in machine vision system design. The ability to replicate backlighting using front illumination opens new possibilities for engineers working within tight mechanical limits.

With the Backlight FluoreSHEET®, you’re not just adding a light – you’re gaining flexibility in how and where you illuminate your application.
