Name: JAI - SW-4000TL-10GE 4K Trilinear Line Scan, Sweep Series
Brand: JAI
Price: 3850.00 USD
Availability: InStock

$3,850.00

The JAI SW-4000TL-10GE 4K Trilinear Line Scan, Sweep Series The SW-4000TL-10GE is a high speed trilinear line scan camera that... Learn more

Request Info

Quick Shipping

Most items ship within 2-3 business days. Orders with expedited shipping must be received by 2 pm CST.

Order Now

Quality Guaranteed

Every item is 100% inspected to ensure exceptional quality, high performance and unrivaled reliability.

Shop Now

Reach out to us anytime via chat, email or phone for more info or assistance placing an order.

Get Support

Details

Specs

Technical Data

Video

Details

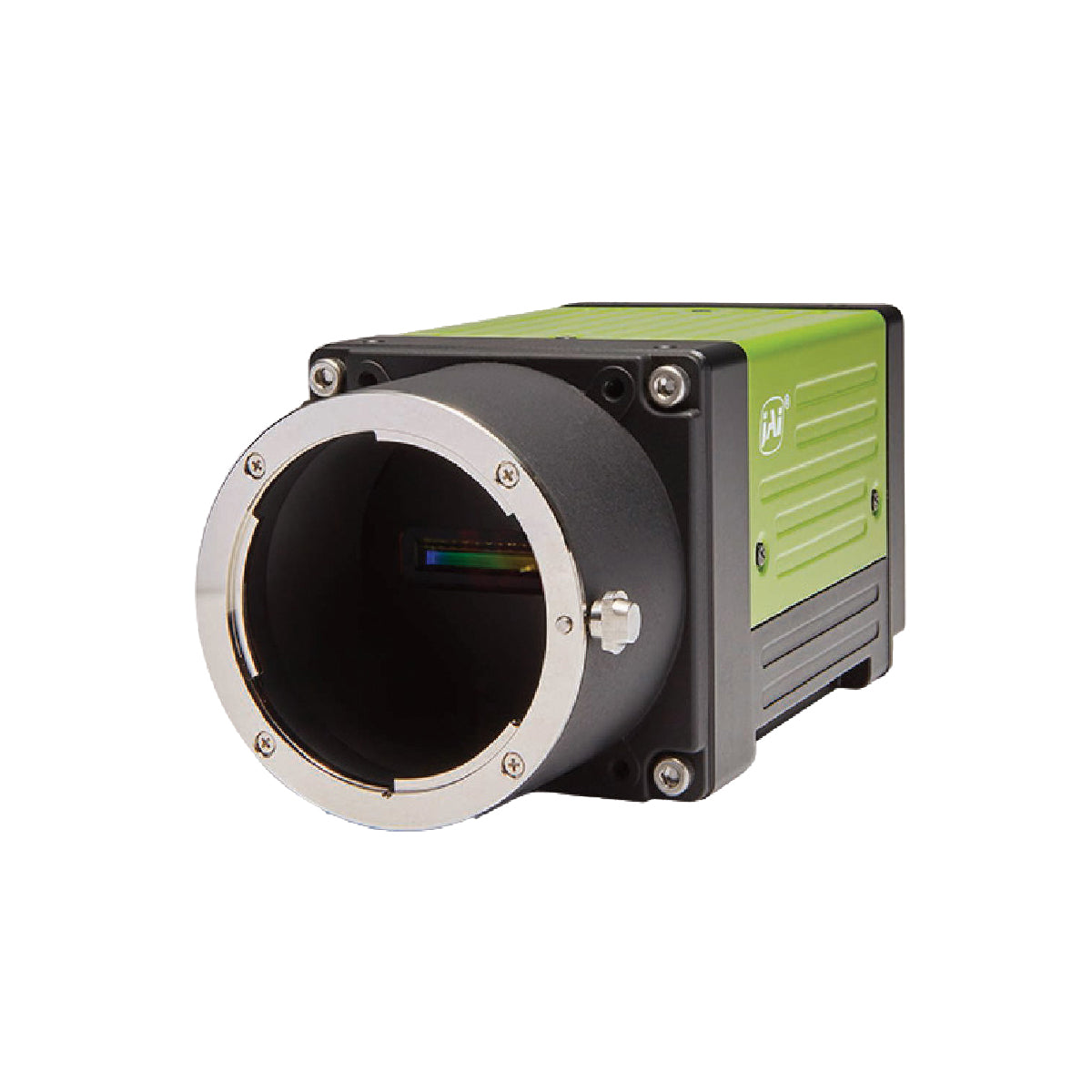

The JAI SW-4000TL-10GE 4K Trilinear Line Scan, Sweep Series The SW-4000TL-10GE is a high speed trilinear line scan camera that delivers outstanding color line scan performance for applications that don't require the ultimate precision provided by the prism technology in JAI Sweep+ Series. Featuring a maximum line rate of 66 kHz for 8-bit output, it is one of the fastest 3 x 4096 color line scan cameras on the market.

Specs

Newly developed “state of the art” CMOS trilinear sensor
Provides high speed 3 x 4096 pixel output at up to 66 kHz
Horizontal and vertical binning functions
Intelligent sub-pixel spatial compensation and tilted view correction
HSI and XYZ color space conversion
Large variety of trigger options
Supports direct encoder connection to camera
Excellent shock and vibration resistance
Compact size and high robustness for industrial environments
Time stamping of line data
10GBASE-T interface with selectable YUV, 3 x 8-bit RGB, or 3 x 10-bit RGB output
Backwards compatible to NBASE-T (5GBASE-T/2.5GBASE-T) and standard GigE (1000BASE-T)

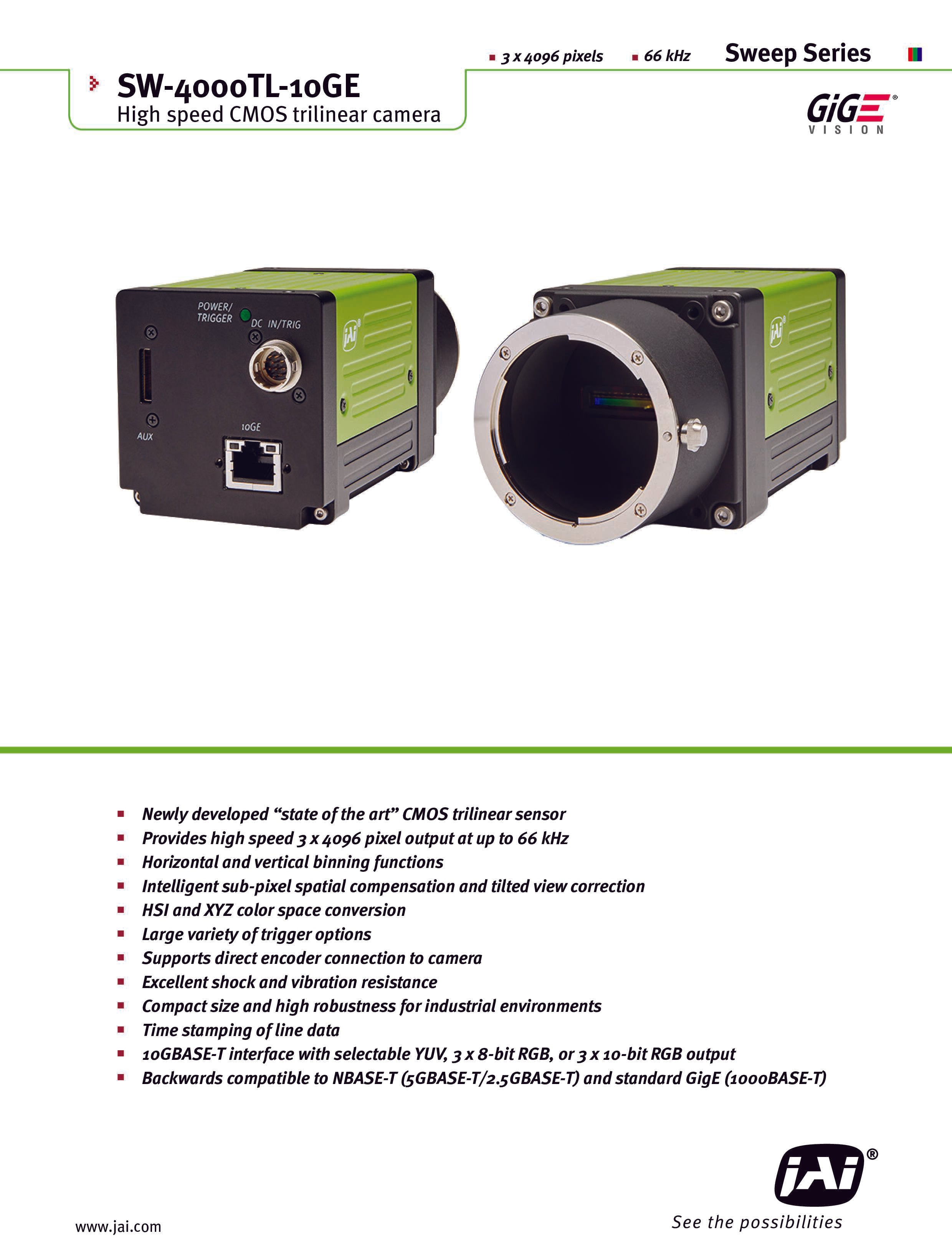

Technical Data

Click the image for detailed specifications and technical data.
