Fixed Focal Lens, 35mm, 12MP, 1.1in, f/2.2, C-Mount, VS-HVA Series – VS Technology VS-HVA3522
$550.00
$550.00
The VS Technology VS-HVA3522 is a high-resolution 35mm fixed focal length machine vision lens engineered for 12-megapixel (12MP) cameras with...
Learn more
Quick Shipping
Most items ship within 2-3 business days. Orders with expedited shipping must be received by 2 pm CST.
Order Now
Quality Guaranteed
Every item is 100% inspected to ensure exceptional quality, high performance and unrivaled reliability.
Shop Now
Contact Us
Reach out to us anytime via chat, email or phone for more info or assistance placing an order.
Get Support
Details
Specs
Technical Data
Details
Details
The VS Technology VS-HVA3522 is a high-resolution 35mm fixed focal length machine vision lens engineered for 12-megapixel (12MP) cameras with sensor formats up to 1.1" and pixel sizes as small as 2.74µm. Featuring a bright f/2.2 maximum aperture, it delivers the resolving performance required for detailed, consistent imaging in demanding industrial vision applications.
Designed for high-resolution machine vision and factory automation systems, the VS-HVA3522 combines 12MP resolution with support for large-format, small-pixel sensors. Its 35mm focal length provides a narrower field of view for detailed imaging, making it well suited for precision inspection, measurement, robotics, positioning, quality control and other industrial imaging applications where accurate visualization of fine features is essential.
Specs
Specs

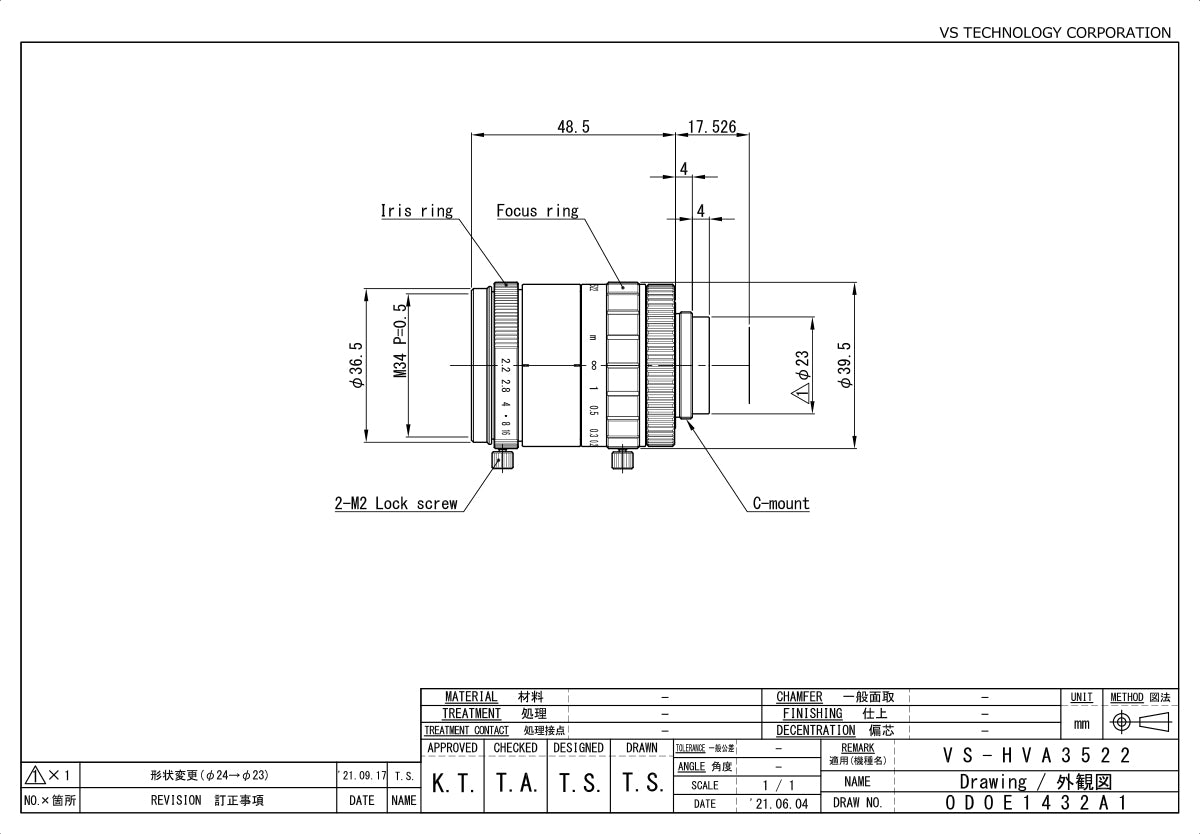

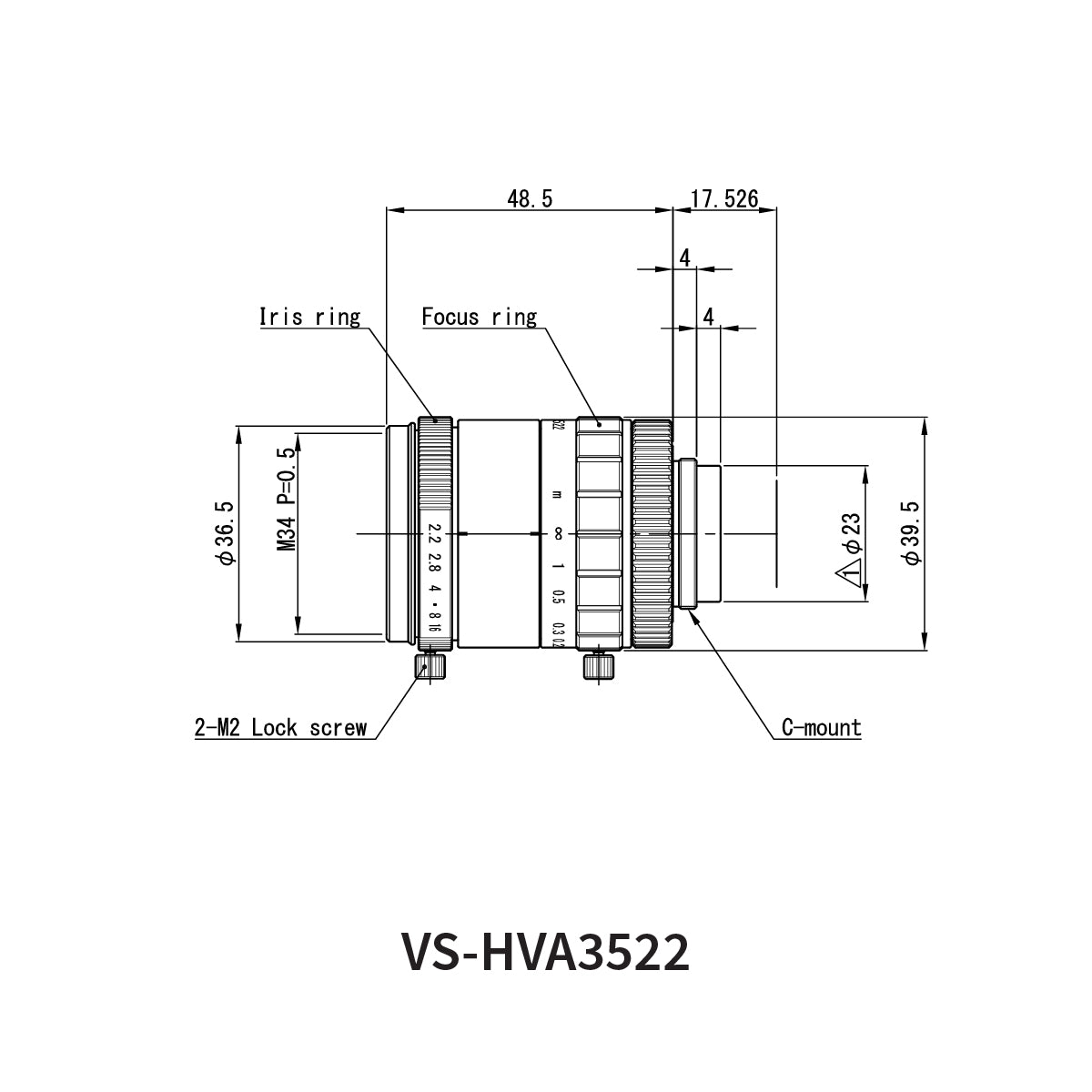

Dimensions
Ø40 x 57.5
Technical Data
Fixed Focal Lens, 35mm, 12MP, 1.1in, f/2.2, C-Mount, VS-HVA Series – VS Technology VS-HVA3522
